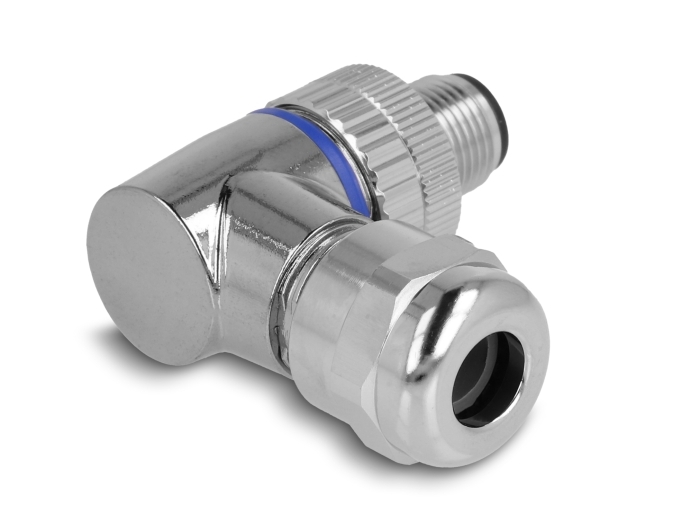

Delock M12 Connector A-coded 4 pin male for mounting with screw connection 90° angled metal

Delock M12 Connector A-coded 4 pin male for mounting with screw connection 90° angled metal

DELOCK

60540

New

This connector by Delock can be used to connect a cable via a screw terminal connection with an M12 connector, e.g. for machine control or automation.
System requirements:
• A free M12 female port
Specification:
• Connectors:
  1 x M12 male A-coded 4 pin

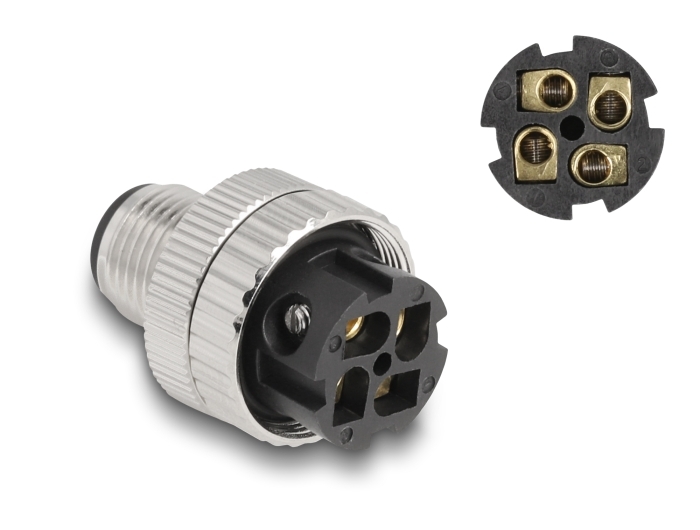

  4 x screw terminal
• Housing material: metal
• Useable for a cable gauge range from 26 to 20 AWG (0.13 - 0.52 mm²)
• Operating voltage: max. 250 V
• Current: max. 4 A
• Operating temperature: -25 °C ~ 85 °C
• Protection class: IP67
• Cable entry max. 3.0 - 8 mm
• Thread size: M12 x 1.0 mm
• Colour: black

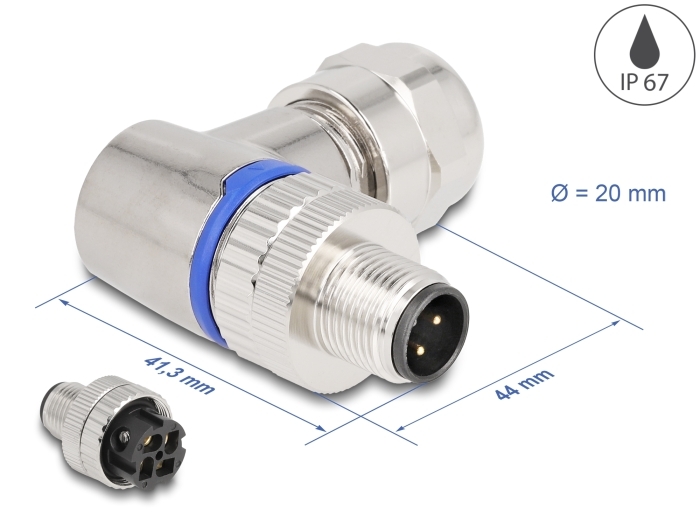

• Dimensions (LxWxD): ca. 44,0 x 41,3 x 20,0 mm
Package content:
• Connector
Data sheet:
http://www.delock.de/produkt/60540/pdf.html?sprache=en
