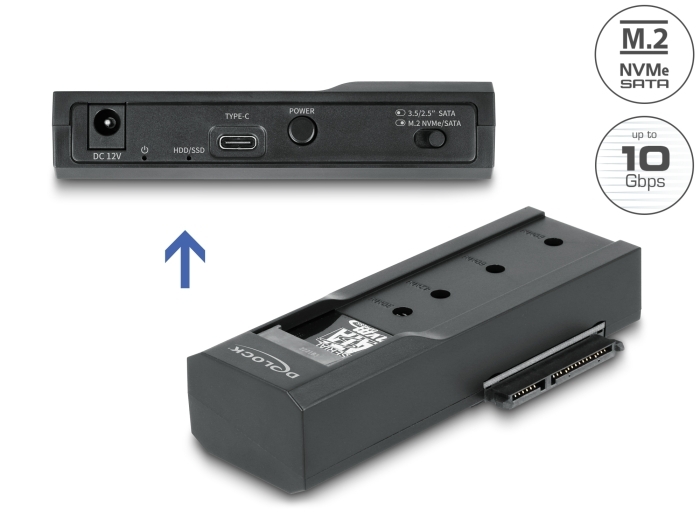

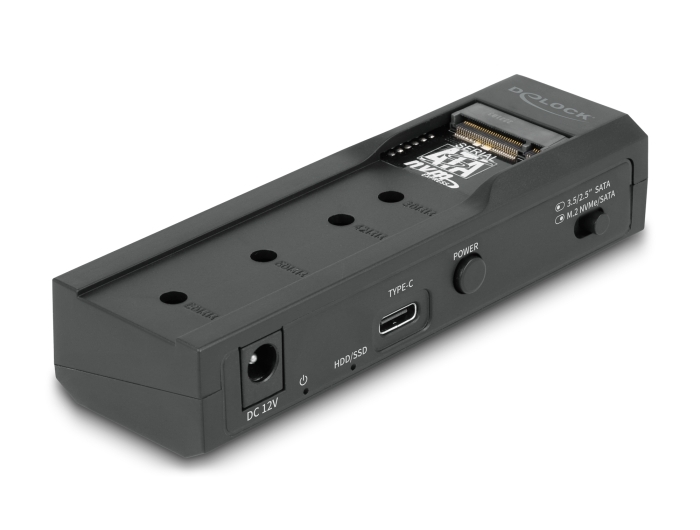

Delock USB Type-C™ Converter for 1 x M.2 SSD or 1 x SATA SSD / HDD

Reference 64253

Condition: New

More info

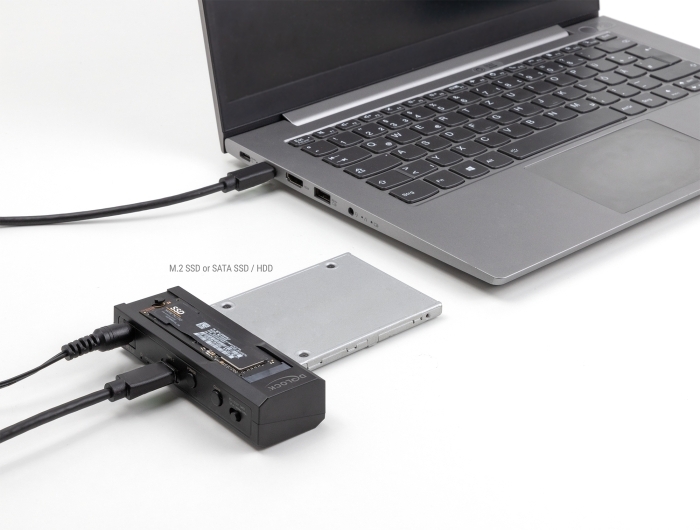

This converter by Delock enables the connection of an M.2 NVMe or SATA SSD, in 2280, 2260, 2242 and 2230 format, or a 2.5″ or 3.5″ SATA HDD or SSD through the USB interface.

System requirements:
• Android 9.0 or above
• Chrome OS
• Linux Kernel 5.15 or above
• Mac OS 12.4 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• PC or laptop with a free USB Type-A port or
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port

Specification:
• Connectors:
  1 x USB 10 Gbps USB Type-C™ female
  1 x M.2 key M slot
  1 x SATA 6 Gb/s 22 pin receptacle
  1 x DC jack
• Chipset: Realtek RTL9210B
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on SATA or PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• For 2.5″ and 3.5″ SATA HDD / SSD
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports Native Command Queuing (NCQ)
• Data transfer rate up to 10 Gbps
• Supports UASP
• 2 x LED indicator for power and access
• Bootable
• Function key:
  1 x On / Off switch
  1 x switch for M.2 or 2.5″ / 3.5″ drive
• Dimensions (LxWxH): ca. 107 x 35 x 24 mm
• Hot Plug, Plug & Play

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A
• Output: 12 V / 2 A
• Ground outside, plus inside
• Dimensions:
  inside: ø ca. 2.5 mm
  outside: ø ca. 5.5 mm
  length: ca. 10 mm

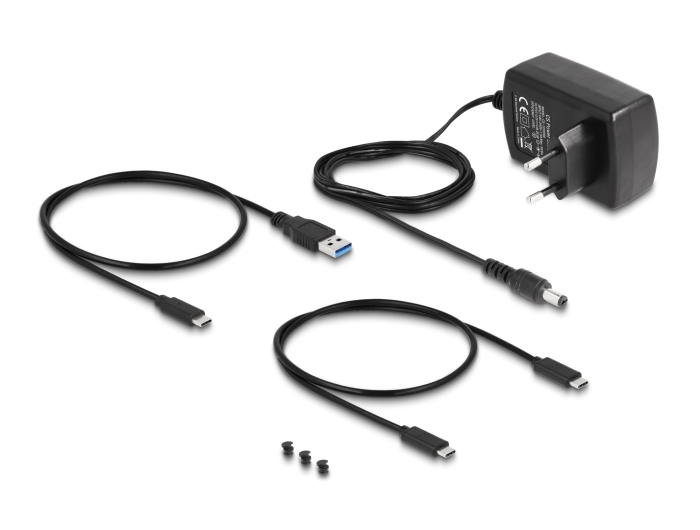

Package content:
• USB Type-C™ converter
• Cable USB-C™ male to USB-C™ male, length ca. 80 cm
• Cable USB-C™ male to USB Type-A male, length ca. 80 cm
• 3 x rubber nipple
• External power supply 12.0 V / 2.0 A
• User manual
