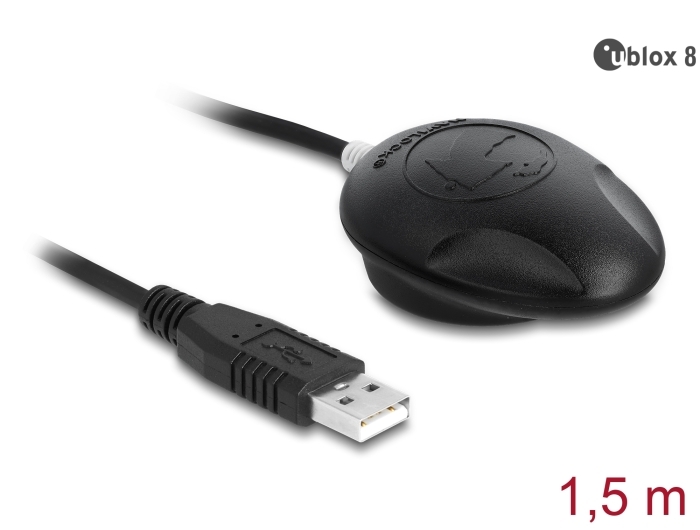

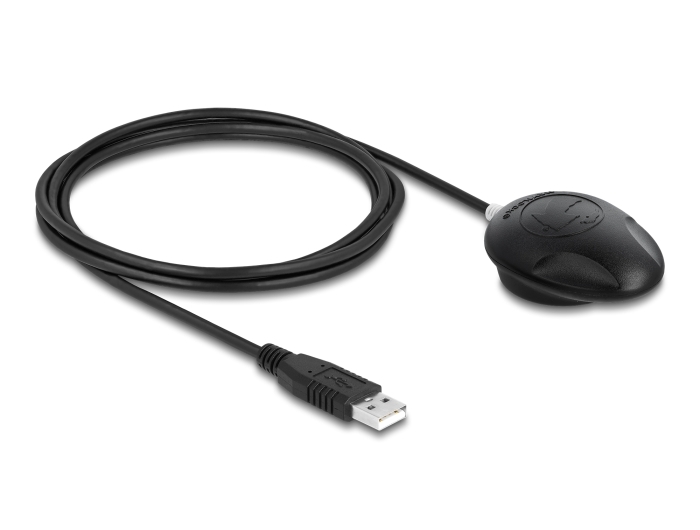

Navilock NL-802U EVA-M8Q USB 2.0 Multi GNSS Receiver u-blox 8 1.5 m

Reference 62781

Condition: New

More info

The USB 2.0 Multi GNSS receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. It is possible to use this Multi GNSS receiver with a laptop and suitable routing software for navigation.

System requirements:
• Linux Kernel 5.19 or above
• Windows 10/10-64/11

Specification:
• Connector: 1 x USB 2.0 Type-A male
• Chipset: u-blox 8 EVA-M8Q
• Frequency:
  GPS: L1, 1575.4200 MHz
  GLONASS: L1, 1602 (k x 0.5625) MHz
  BEIDOU COMPASS: B1, 1561.0980 MHz
  GALILEO: E1, 1575.4200 MHz
  QZSS: L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Auto Baud Rate up to 115200 bps
• Update rate:
  single GNSS: 18 Hz (e.g. GPS solo)
  multi GNSS: 10 Hz (e.g. GPS+GLONASS)
• Sensibility: max. -164 dBm
• Protection class: IPX6
• Magnetic, non-slip on the bottom
• LED-indicator for GPS status
• Operating temperature: -10 °C ~ 50 °C
• Power supply: 5 V DC
• Current consumption: max. 45 mA
• Cold start in ca. 26 seconds
• Hot start in ca. 1 second
• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS
• Cable length: ca. 1.5 m
• Dimensions (LxWxH): ca. 65 x 45 x 22 mm

Package content:
• USB 2.0 receiver

Data sheet:
http://www.navilock.de/produkt/62781/pdf.html?sprache=en
