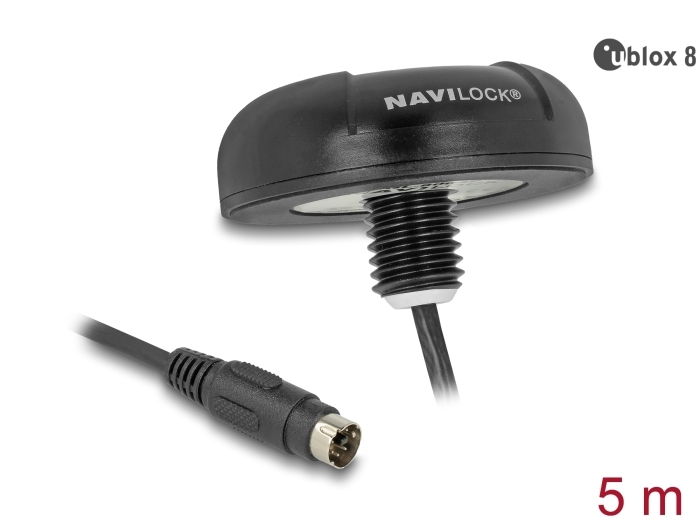

Navilock NL-803P EVA-M8Q MD6 Serial PPS Multi GNSS Receiver u-blox 8 5 m

Reference 62798

Condition: New

More info

The MD6 serial multi GNSS Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS Receiver with a laptop and a suitable routing software for navigation. The MD6 universal connector enables the connection of optional USB or serial connecting cables. The NL-803P GNSS receiver can be installed onto different vehicle roofs (car, truck, bus etc.) by using the included installation material. Thus it can perfectly fit into the vehicle concept, due to its design.

System requirements:
• Linux Kernel 5.19 or above
• Windows 10/10-64/11
• MD6 connection cable

Specification:
• Connector: MD6 Navilock plug (USB or serial cable are optional available)
• Chipset: u-blox 8 EVA-M8Q
• Frequency:
  GPS: L1, 1575.4200 MHz
  GLONASS: L1, 1602 (k x 0.5625) MHz
  BEIDOU COMPASS: B1, 1561.0980 MHz
  GALILEO: E1, 1575.4200 MHz
  QZSS: L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Auto Baud Rate up to 115200 bps
• PPS signal on pin 6 (LVTTL 3.3 V)
• Update rate:
  single GNSS: 18 Hz (e.g. GPS solo)
  multi GNSS: 10 Hz (e.g. GPS+GLONASS)
• Sensibility: max. -164 dBm
• Protection class: IPX7
• Operating temperature: -10 °C ~ 50 °C
• Power supply: 5 V DC
• Current consumption: max. 45 mA
• Cold start in ca. 26 seconds
• Hot start in ca. 1 second
• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS
• Cable length: ca. 5 m
• Dimensions (Ø x H without screw thread): ca. 62 mm x 21 mm

Package content:
• MD6 serial receiver
• Mounting material: stainless steel nut and washer
