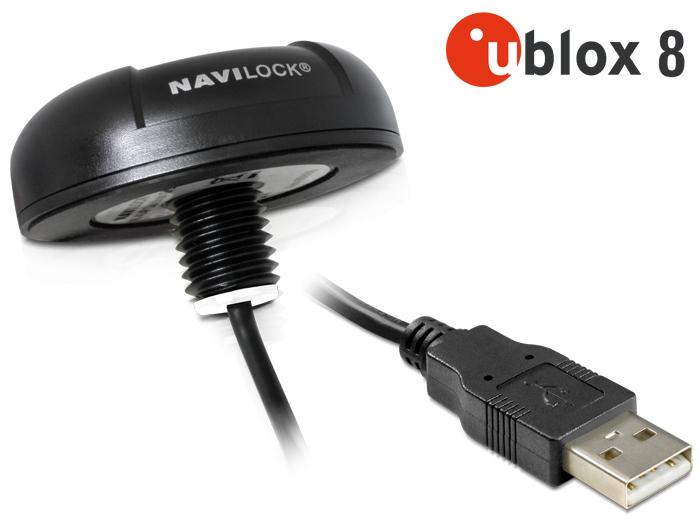

Navilock NL-8004U USB 2.0 Multi GNSS Receiver u-blox 8 4.5 m

Description:

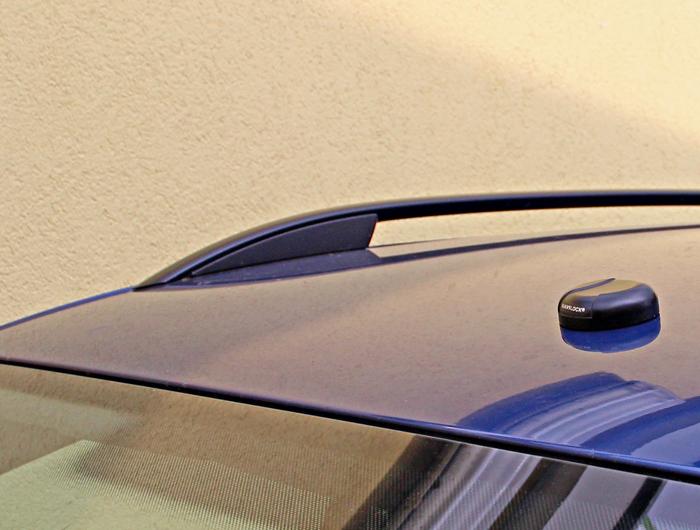

The USB 2.0 multi GNSS Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS Receiver with a notebook and a suitable routing software for navigation. The NL-8004U GNSS receiver can be installed onto different vehicle roofs (car, truck, bus etc.) by using the included installation material. Thus it can perfectly fit into the vehicle concept, due to its design.

Specification:
• Connector: USB 2.0 type A male
• u-blox 8 UBX-M8030-KT chipset
• Frequency:
GPS: L1, 1575.4200 MHz
GLONASS: L1, 1602.5625 ~ 1615.5000 MHz
BEIDOU COMPASS: B1, 1561.0980 MHz
GALILEO E1, 1575.4200 MHz
QZSS L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online/offline,
SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Auto Baud Rate up to 115200 bps
• Update rate:
single GNSS: 18 Hz (e.g. GPS solo)
multi GNSS: 10 Hz (e.g. GPS+GLONASS)
• Sensibility max. –167 dBm
• IPX7 protection class
• LED-indicator for GPS-status
• Operating temperature: -20 °C ~ 60 °C
• Cold start in ca. 26 seconds
• Hot start in ca. 1 second
• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and
2 m CEP with SBAS
• Cable length: ca. 4.5 m
• Dimensions (Ø x H without screw thread): ca. 62 mm x 21 mm

System requirements:
• Windows Vista/7/8/8.1/10, Linux Kernel 2.6
• PC or notebook with a free USB port

Package content:
• USB 2.0 receiver

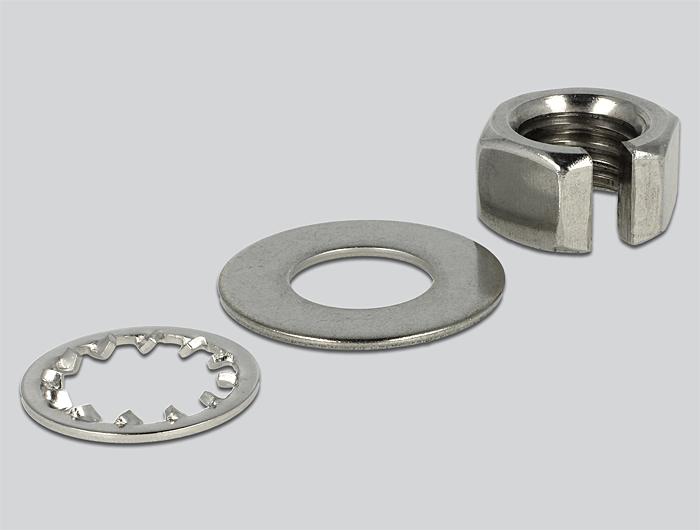

• Mounting material: stainless stell nut and washer
• Driver CD
• User manual on CD ROM
