DIGITUS Extender PoE - 5-Port Gigabit Industrial

Digitus

DN-651143

New

Industrial 5-Port Gigabit PoE Extender 1-Port 802.3bt PoE to 4-port 802.3af/at

Industrial 5-Port Gigabit PoE Extender with 1-Port 802.3bt PoE to 4-port 802.3af/at Operating temp.: -40°C to +75°C

  • 5-Port 10/100/1000BASE-T Gigabit RJ45 Interface
  • Thunder, Lightning resistant
  • Built-in hardened PoE and PD controller
  • Can be cascaded up to 4 units or 500meters
  • Works in extreme environment -40°C to +75°C
  • Data Processing: Store and Forward
  • Flow Control: IEEE 802.3x Flow Control and Back Pressure
  • Jumbo Frame: 9KB

DESCRIPTION

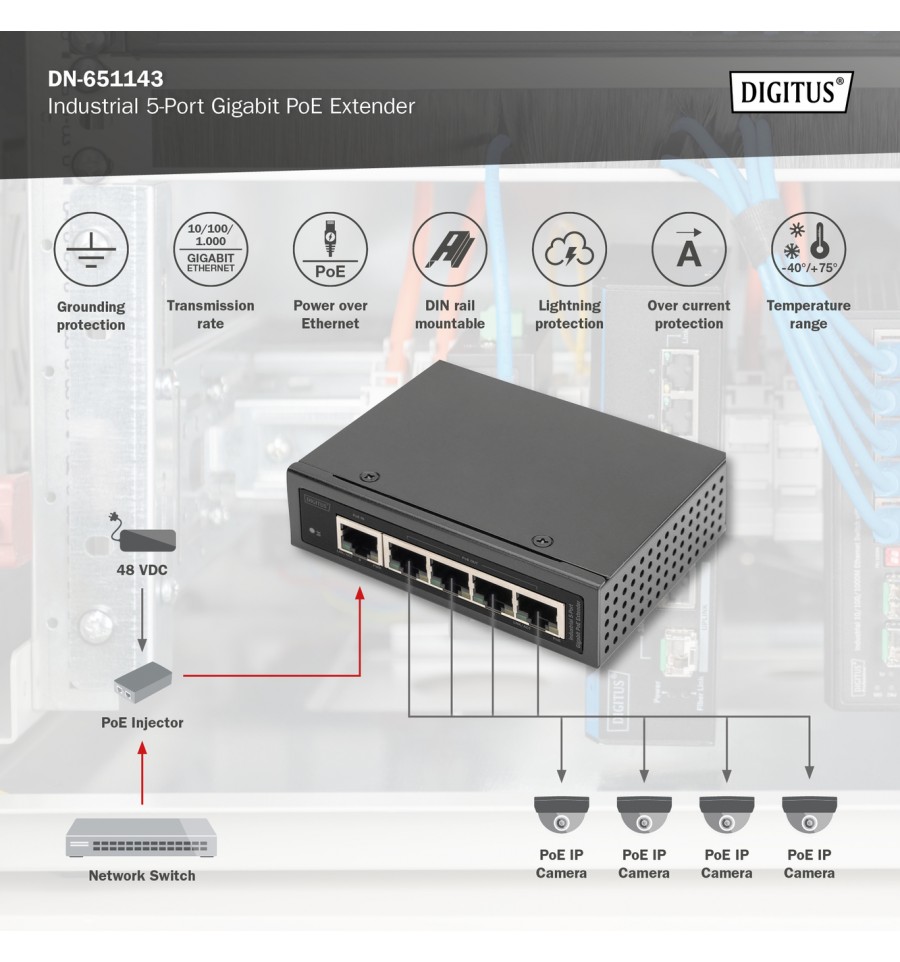

This PoE extender is equipped with 1 PD input to power up 4 Giga PSE output. It can be used as a standalone PD/PSE PoE injector or to extend PoE distance. It can be cascaded up to 4 units or 500 meters to deliver high power for your end device.

TECHNICAL DETAILS

  • IEEE Standard: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3ab 1000Base-T Gigabit Ethernet, IEEE 802.3x Flow Control and Back Pressure, IEEE 802.3af PoE, IEEE 802.3at PoE+, IEEE 802.3bt PoE++
  • Switch Architecture: Back-plane (Switching Fabric): 10Gbps
  • Data Processing: Store and Forward
  • Flow Control: IEEE 802.3x Flow Control and Back Pressure
  • Jumbo Frame: 9KB
  • MAC address Table Size: 2K
  • Packet Buffer Size: 1Mbits

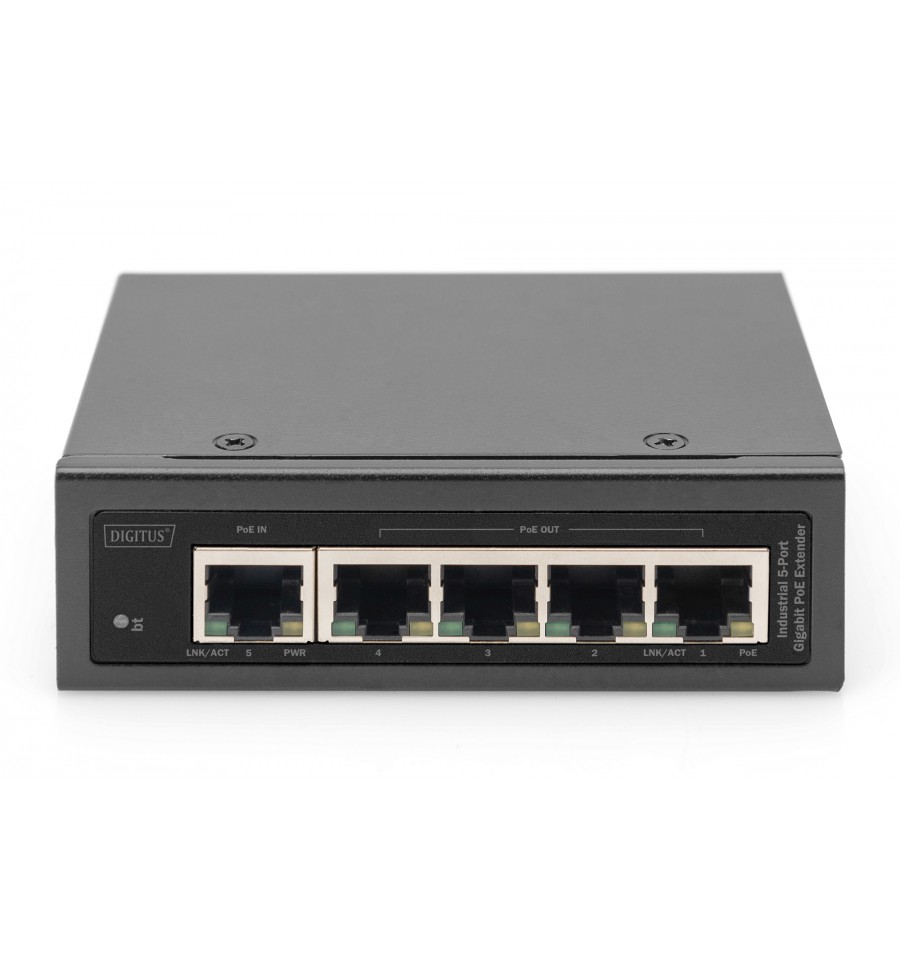

  • Network Connector: 5 x RJ-45 10/100/1000M auto negotiation, 1 x RJ-45 10/100/1000M with IEEE802.3bt In, 4 x RJ-45 10/100/1000M with IEEE802.3at Out
  • Auto MDI/MDI-X function, Full/Half duplex
  • Network Cable: UTP/STP Cat.5e or above Cable, EIA/TIA-568 (100m)
  • Protocol; CSMA/CD

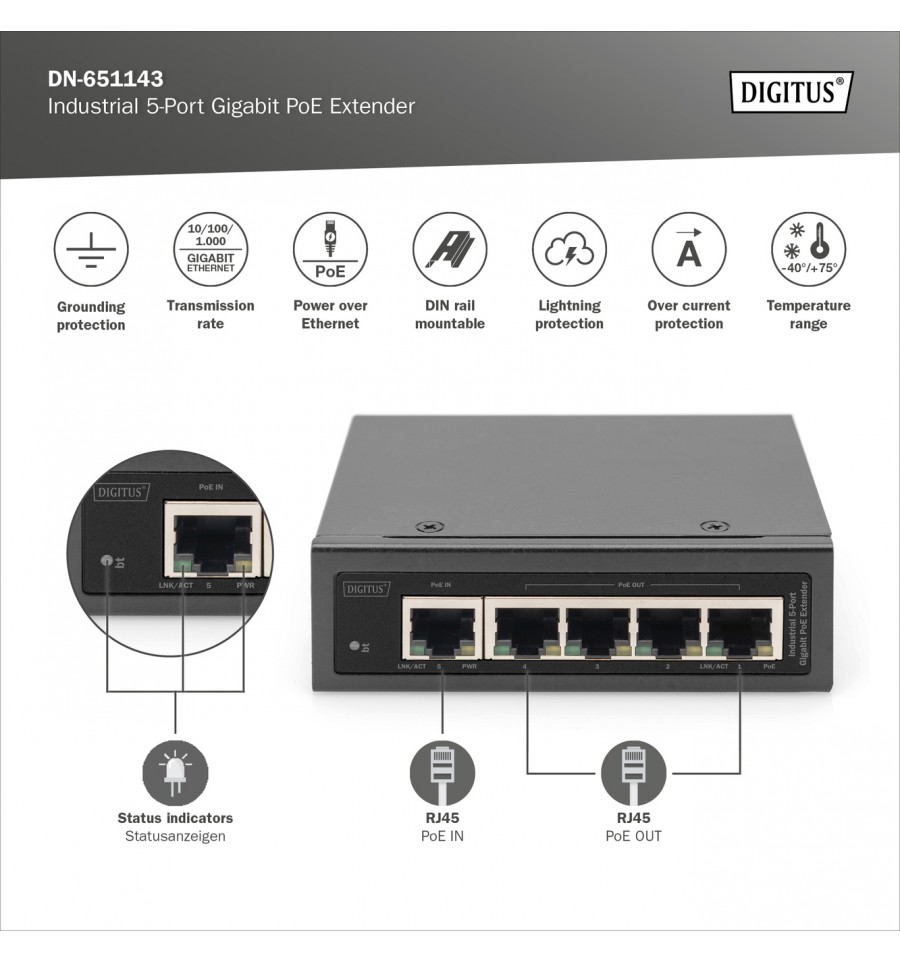

  • LED:bt (Green):ON－PoE IEEE 802.3bt is detected, OFF－PoE IEEE 802.3bt is not detected, PWR (Amber):, ON－Power is detected, OFF－Power is not detected, PoE (Amber): ON－PSE is activated and PD is detected
  • LNK/ACT (Green):ON－TX port is detected, Flashing－TX data is transmitting/receiving
  • Reserve polarity protection: Present
  • Overload current protection: Present
  • Power Consumption: 3.9W without PoE load
  • PD power input: 30W/60W/90W
  • PoE Power: Maximum total PSE power output 60W
  • Operating Temperature: -40°C to 75°C
  • Operating Humidity: 5% to 95% (Non-condensing)
  • Storage Temperature: -40°C to 85°C
  • Housing: Rugged Metal, IP30
  • Case Dimension (L x W x D): 103.5 x 32 x 81.5 mm

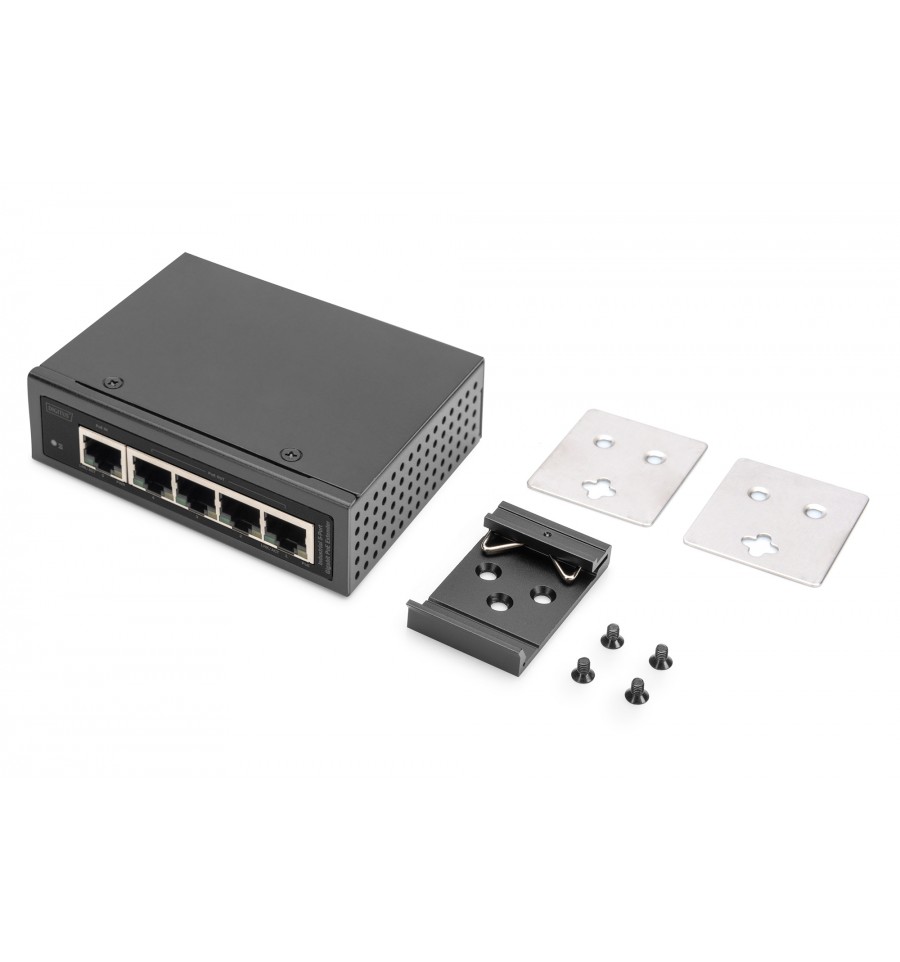

  • Installation mounting: DIN Rail Mount or Wall Mount
  • Industrial usage: no
  • Managed: no
  • Outdoorsuitable: no
  • PoE (Power over Ethernet): no
  • Protection against vanadlism: no
  • VLAN: no

PACKAGE CONTENT

  • 1x PoE Extender
  • 1 x Mounting Material
  • 1 x Manual

DOWNLOADS AND CERTIFICATES

Certificate
