Level One LevelOne 1x GE PoE-Splitter Adapter POS-5000 5W PoE

Reference POS-5000

Condition: New

More info

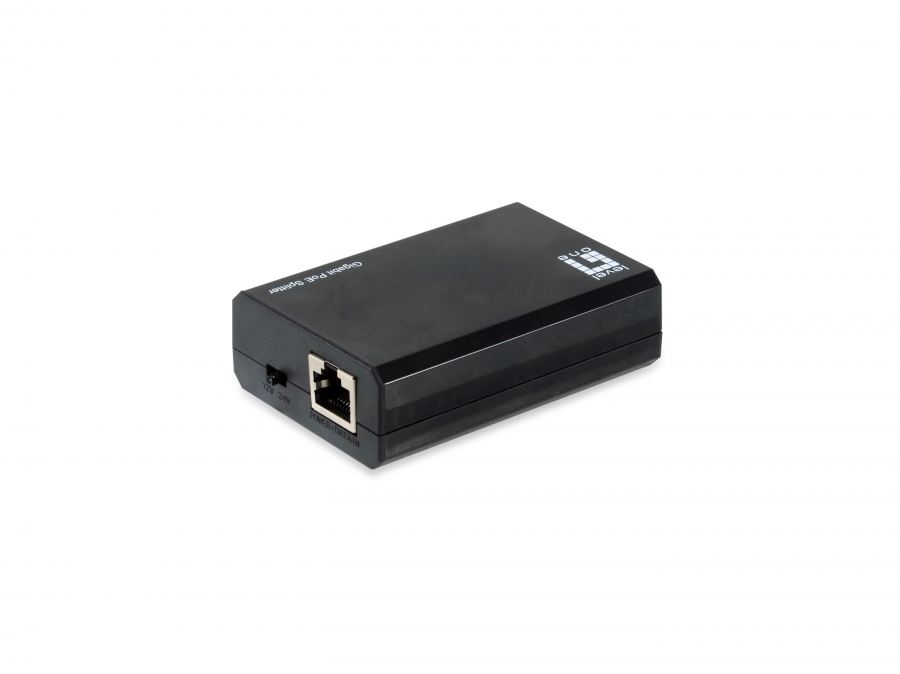

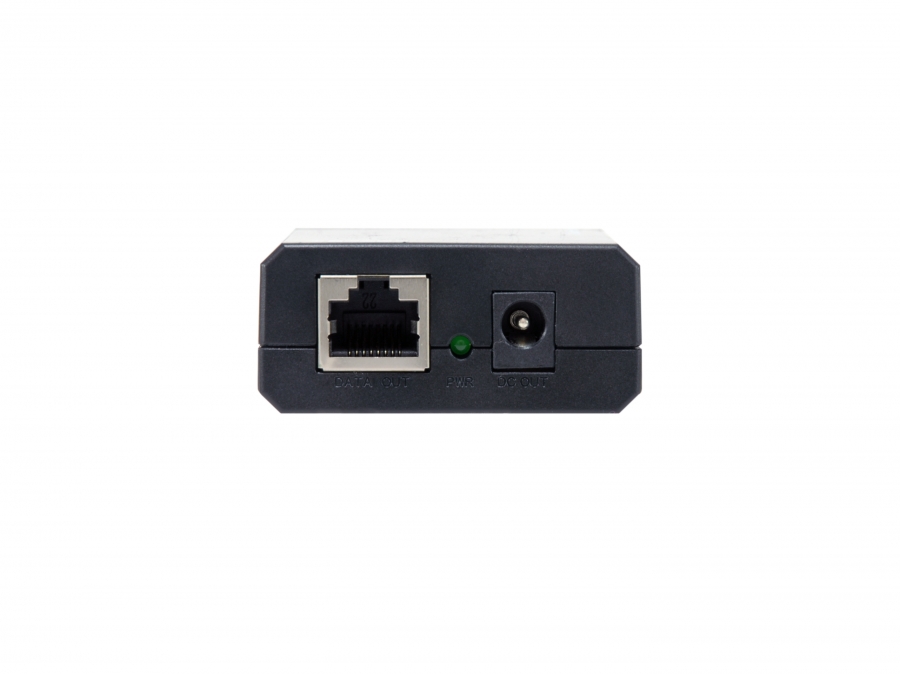

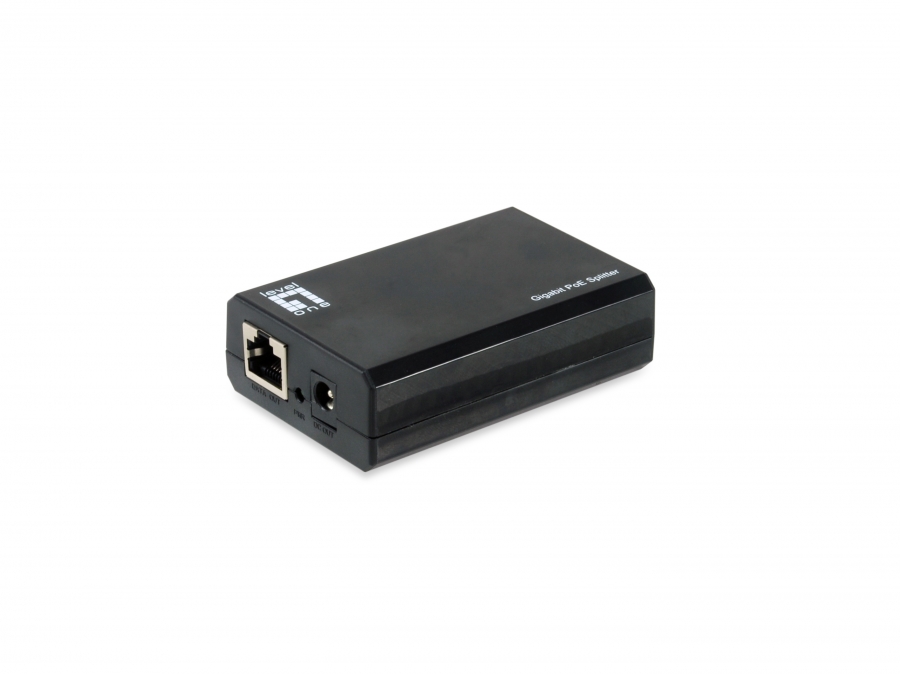

The LevelOne POS-5000 Gigabit High Power PoE Splitter splits a networked PoE Signal intoseparated power and Gigabit data sources. This device allows administrators to run Gigabit speed PoE cables over long distances and then split the PoE signal into separated data and power sources in order to network non-PoE devices. Active splitters are aslo available in the following output voltages (12V or 24V). Save installation and equipment cost when installing WiFi access points, (Pan/Tilt/Zoom) IP cameras and more in remote locations. No need to install network devices near a power outlet. This compact device safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and non PoE network at Gigabit speeds.

Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Cabling technology	10/100/1000Base-T(X)
Product colour	Black
LED indicators	Y
Country of origin	China
RJ-45 input ports	1
RJ-45 output ports	1
DC-out jack	Y
Power over Ethernet (PoE)	Y
DC output voltage	12V, 24V
Output power	60 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	0 - 95%
Width	53 mm
Depth	24 mm
Height	80 mm
Weight	80 g
Package width	125 mm
Package depth	55 mm
Package height	125 mm
Package weight	600 g
Cables included	DC, LAN (RJ-45)
Pallet gross length	80 cm
Pallet gross width	120 cm
Pallet gross height	168 cm
Master (outer) case width	290 mm
Master (outer) case length	270 mm
Master (outer) case height	640 mm
Master (outer) case gross weight	5.5 kg
Products per master (outer) case	50 pc(s)
