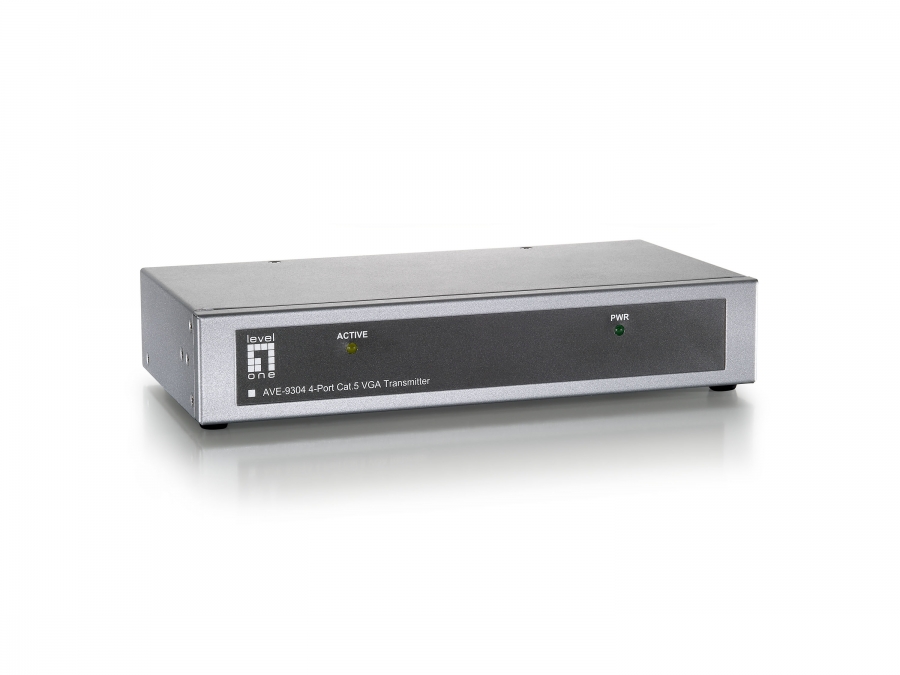

Level One LevelOne AVE-9304 Cat5 Audio/Video Transmitter 4-Port

Reference AVE-9304

Condition: New

More info

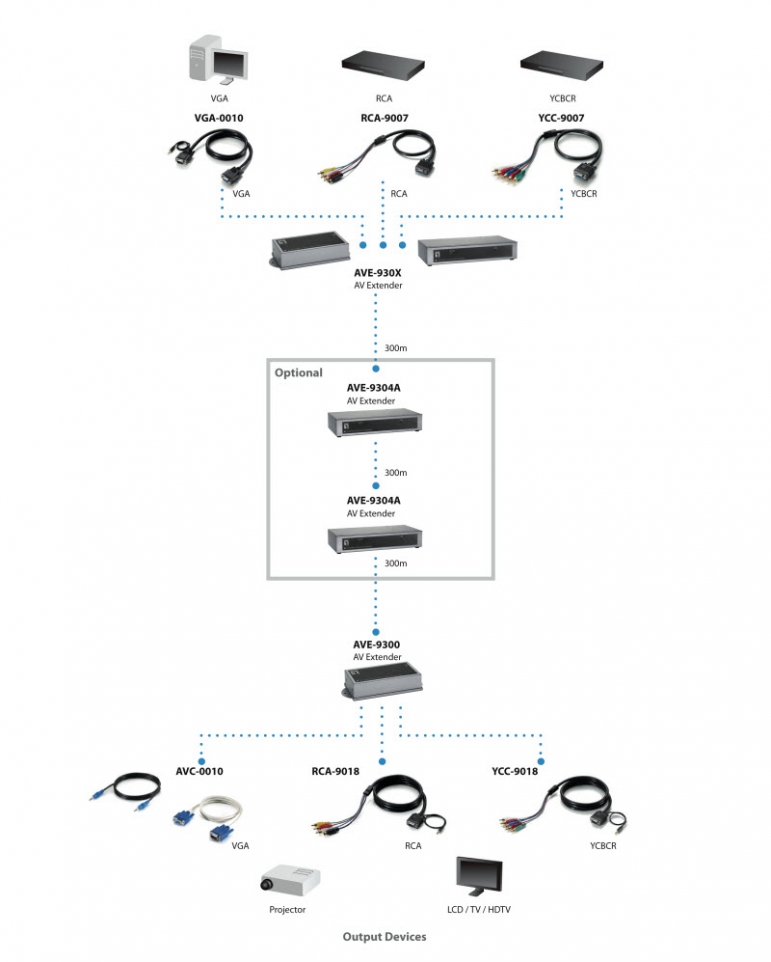

Product Overview The LevelOne AVE-93xx series of Cat.5 Audio/Video Extenders is an ideal PC, DVD player broadcast solution to transmit audio and video signals via Cat.5/6/7 cabling to multiple remote plasma or LCD monitor/screen.Cost-effective Audio/Video Broadcasting over Ethernet The AVE-93xx series make use of inexpensive Ethernet cabling to transmit and receive HDTV audio and video signals. Signals can be transmitted up to 300 meters away from the transmitting unit.Flexible Multi-Location Audio/Video Broadcasting The AVE-9301, AVE-9304, AVE-9308 and AVE-9316 transmit Audio/Video from the controlling unit (player) via Cat. 5/6/7 cabling to remote monitors. The AVE-9300 receives the signal and translates it back to its original form making it possible for the remote monitor/screen to display the original signal.Cable Kits for Different Applications The units support VGA/SVGA/XGA TFT-LCD, LCDTV, PDP and DDC2B enabled projectors by using different format cable kits.- PC Cable Kit VGA A/V with support for all VGA standards Max Resolution: 2048x1536 at 300m- TV Cable Kit Composite/S-Video A/V Supports: 480i, 480p and 720i video formatEasy Installation The compact Cat.5/6/7 Audio/Video extenders easily fit on a desk or where space is limited. No software or interface cards are needed. All repeaters and transmitters are plug-and-play orientated for quick installation.The AVE-9304A can be cascaded to three levels to expand broadcasting locations and broadcasting distances up to 900 meters. The AVE-9304A and AVE-9300 features adjustable video gain and focus control for adjusting video signals that are extended over this distance.- Broadcast Audio/Video signals over Ethernet Cable - Supports 2048x1536 VGA resolution over 300m - Flexible multi-location Audio/Video broadcasting - Flexible cable kit choices for different video applications - Units can be stacked into 3 layer stackable units for extending broadcast signal to 900m away - Repeater and Receiver units feature Video Gain and Focus control

Type	AV transmitter
Maximum resolution	2048 x 1536 pixels
Cable types supported	Cat5, Cat6, Cat7
Maximum transfer distance	300 m
Audio system	stereo

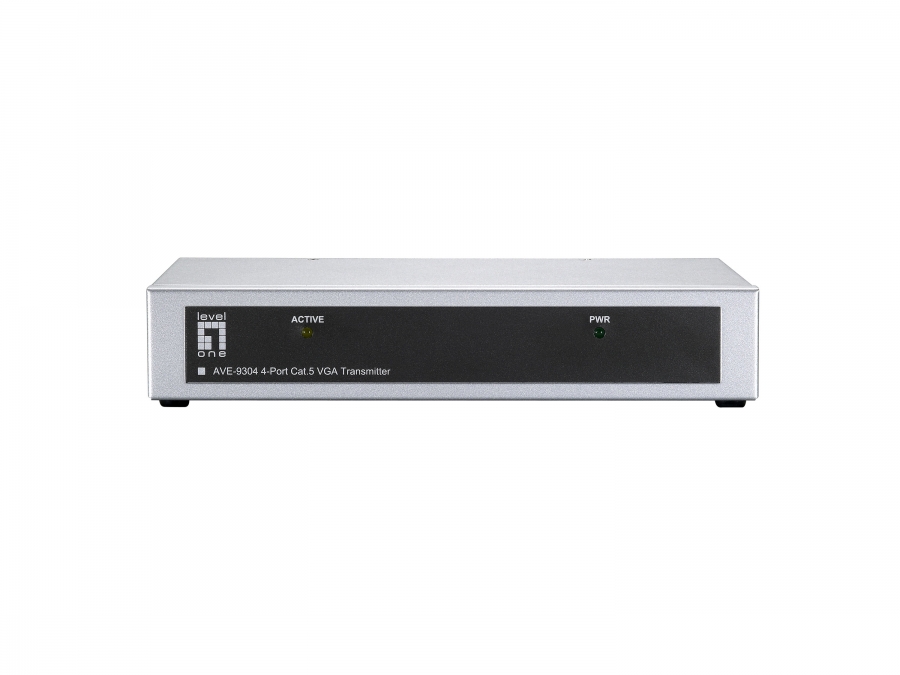

LED indicators	Activity, Power
Supported video modes	480i, 480p, 720p, 1080p
Product colour	Black, Silver

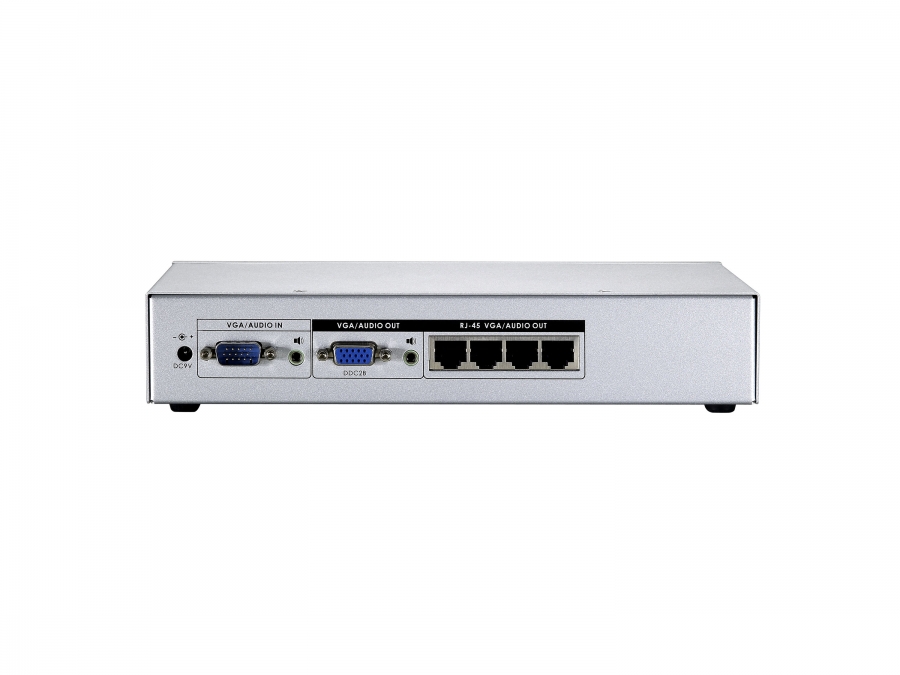

RJ-45 output ports	4
VGA (D-Sub) input ports	1
VGA (D-Sub) output ports	1
Audio input	1
Audio output	1
Operating voltage	5 V
Current	2 A
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Transmitter dimensions (WxDxH)	240 x 130 x 144 mm
Package width	195 mm
Package depth	370 mm
Package height	85 mm
Package weight	2.18 kg
AC adapter included	Y
Manual	Y
Country of origin	Taiwan
