Delock Gigabit Ethernet Switch 4 Port PoE + 1 RJ45 + 1 SFP

Delock Gigabit Ethernet Switch 4 Port PoE + 1 RJ45 + 1 SFP

DELOCK

87702

New

Add to Compare

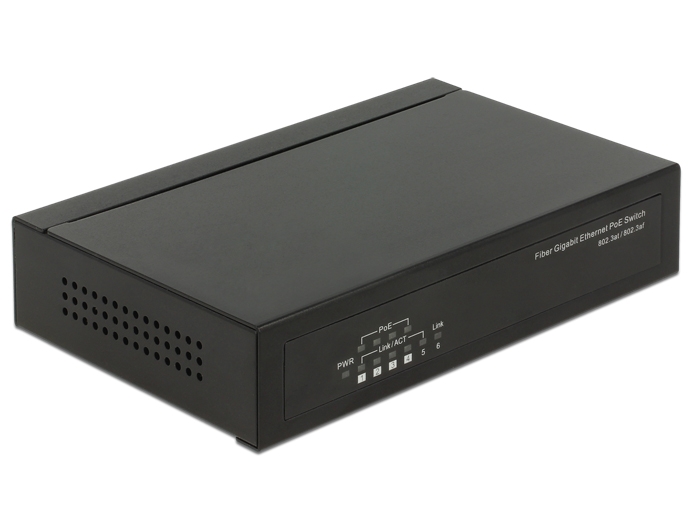

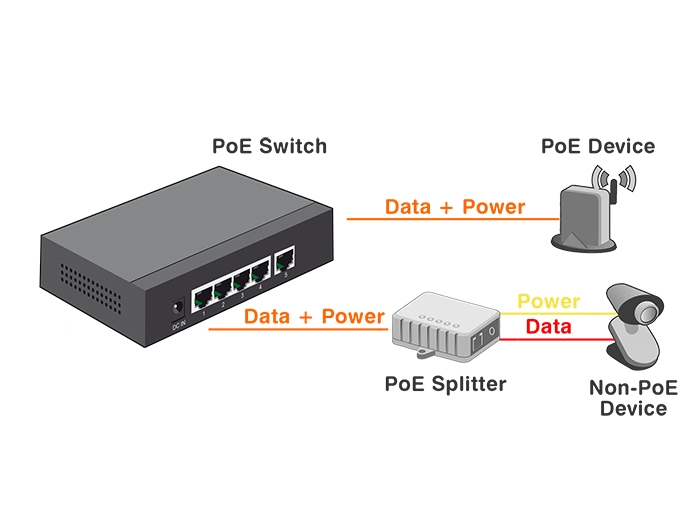

This Gigabit Ethernet Switch by Delock can be used to connect different network components. The four RJ45 ports support Power over Ethernet according to IEEE802.3af / 802.3at, so they can supply power to PoE-enabled devices, such as an IP camera or a PoE splitter via the network cable. In addition, a fifth RJ45 uplink port is available without PoE function.The built-in SFP slot allows to expand the network with a fiber optic connection.
System requirements:
• Device with one free RJ45 port
Specification:

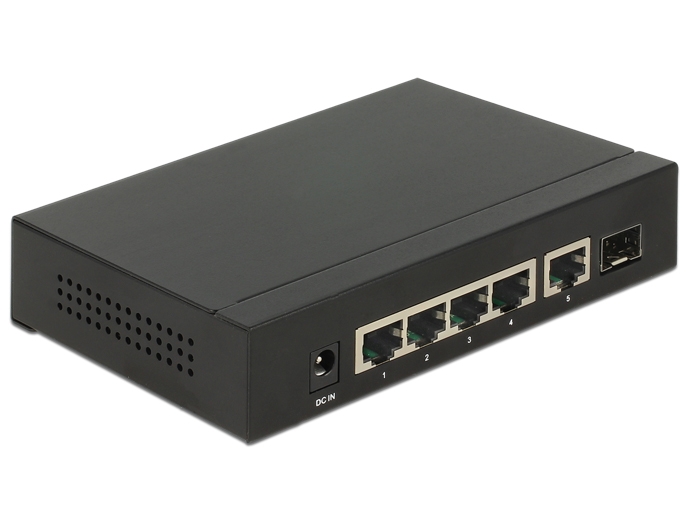

• Connector:
    4 x RJ45 female for 10/100/1000 Mb/s Base-T (PoE+)
    1 x RJ45 female for 10/100/1000 Mb/s Ethernet (Uplink)
    1 x SFP slot for 1 Gb/s SFP module (SFP module not included)
    1 x DC female 5.5 x 2.1 mm (power)
• Data transfer rate up to 1 Gb/s
• LEDs for status monitoring: Power, Link / Activity, PoE
• Supports IEEE802.3at (PoE+) and 802.3af (PoE)
• Phantom power (Mode A, pairs 1/2 and 3/6)
• Power supply: max. 30 W per PoE port, max. 60 W total
• Power consumption: max. 72 W
• Metal housing
• Fanless
• Dimensions (LxWxH): ca. 141 x 94 x 26 mm
Package content:
• PoE switch

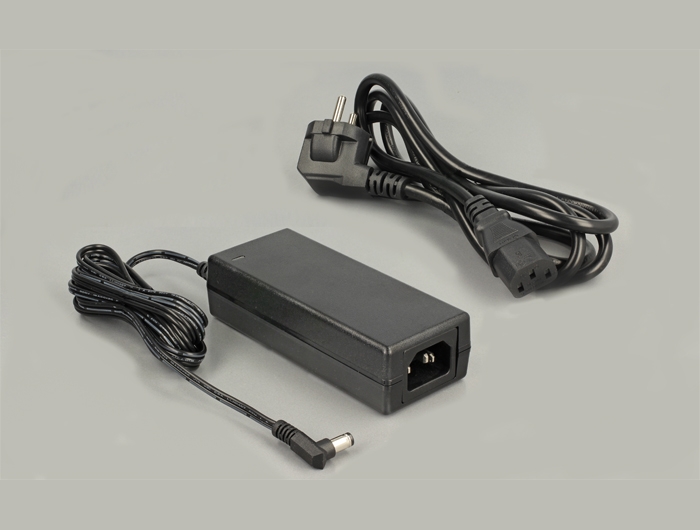

• External power supply
• Power cord
• User manual
Data sheet:
http://www.delock.de/produkt/87702/pdf.html?sprache=en
