Delock Riser Card PCI Express x1 to 2 x PCI 32 Bit Slot with 60 cm cable

Reference 90066

Condition: New

More info

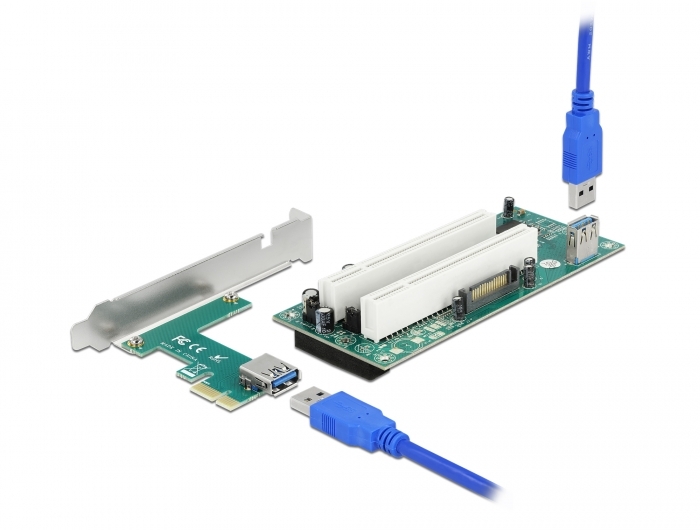

The PCI Express riser card by Delock enables the connection of two PCI cards via one PCI Express interface. The flexible cable allows a space-saving installation inside the computer case.

Note
The package content includes a USB 3.0 riser cable with a length of 60 cm. No USB signals are transmitted through this cable, therefore it is not possible to exchange it with a different or longer cable.

System requirements:
• Linux Kernel 5.4 or above
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2019
• PC with one free PCI Express slot

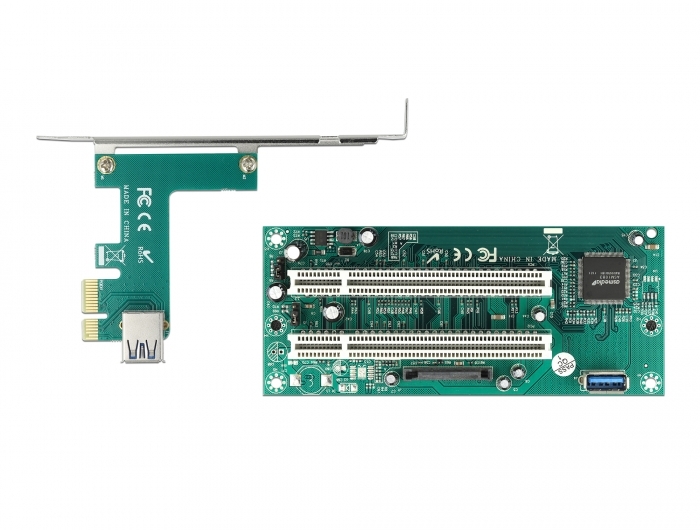

Specification:
• Connectors:
  Motherboard side:
  1 x PCI Express x1
  1 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
  Riser side:
  2 x 32-Bit PCI
  1 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
  1 x SATA power connector
• Chipset: Asmedia ASM1083
• Bootable
• 1 x jumper for 5 V or 3.3 V setting
• 4 x mounting holes on the riser card

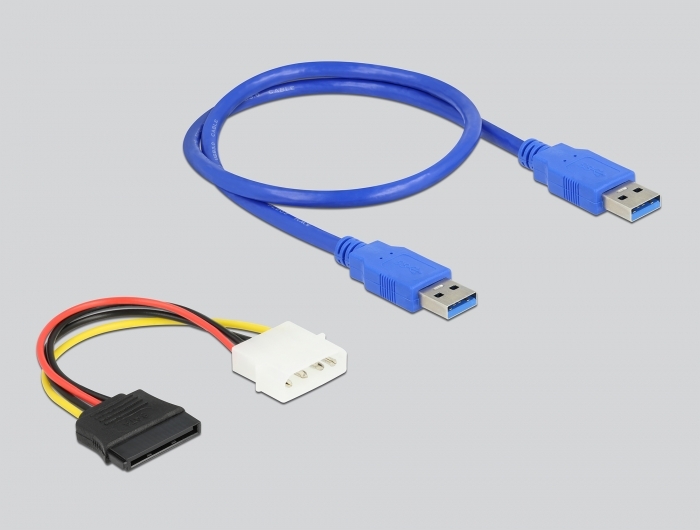

• Cable data:
  1 x riser cable USB 3.0 Type-A male to male ca. 60 cm (incl. connectors)
  1 x power cable 4 pin to SATA ca. 20 cm (incl. connectors)

Package content:
• PCIe to USB riser card
• USB to PCI riser card
• USB cable
• Power cable
• User manual
