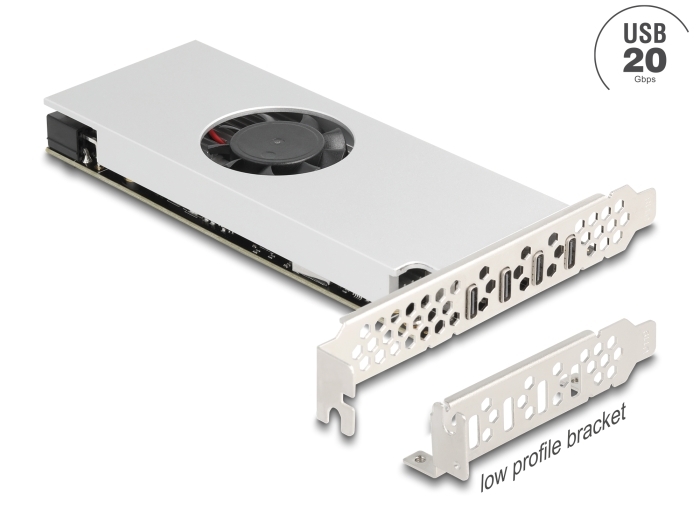

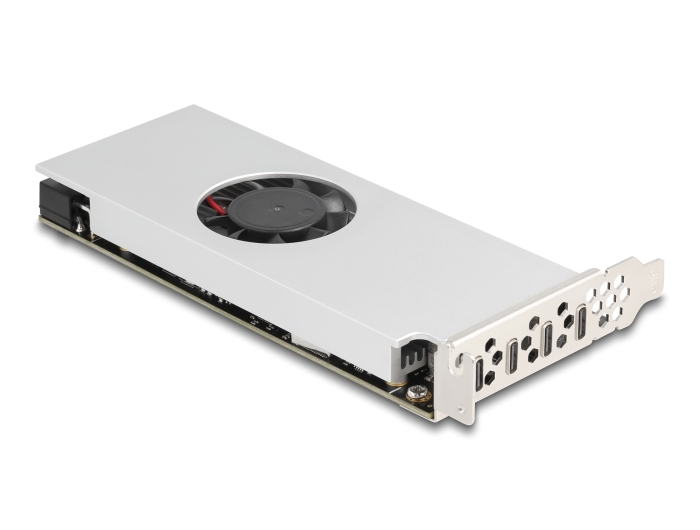

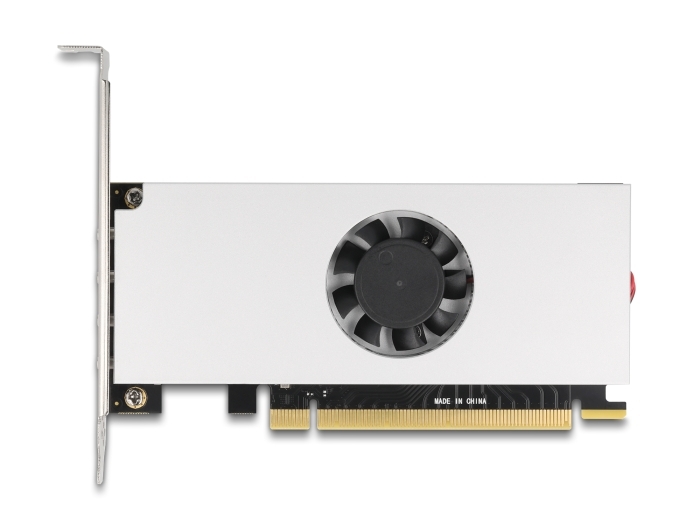

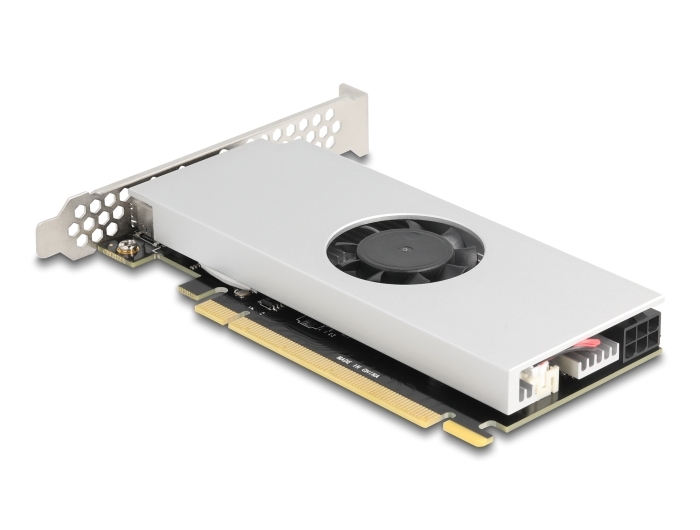

Delock PCI Express x16 Card to 4 x USB 20 Gbps USB Type-C™ Quad Channel with Fan and Heat Sink in Low Profile Form Factor

Reference 90806

Condition: New

More info

The PCI Express card by Delock expands a PC by four external USB 20 Gbps ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card.

Quad Channel
The card has four ASM3242 chipsets one for each USB Type-C™ connector. This ensures the high data transfer rate of 20 Gbps on all ports when used at the same time.

System requirements:
• Windows 10/10-64/11
• Windows Server 2022
• PC with one free PCI Express x16 / x32 slot

Specification:
• Connectors:
  external:
  4 x USB 20 Gbps USB Type-C™ female
  internal:
  1 x PCI Express x16, V3.0
  1 x 6 pin PCIe power female
• Chipset: Asmedia ASM3242, PLX PEX8747
• Data transfer rate up to 20 Gbps
• Downwards compatible to USB 3.0, USB 2.0, USB 1.1
• Power supply via PCI Express interface or via 6 pin power connector
• Electrical power per port: max. 7.5 watt (5 V / 1.5 A)
• Bootable
• Supports UASP
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports Multiple INs
• Heat sink with 40 mm fan

Package content:
• PCI Express card SuperSpeed USB 20 Gbps
• Low profile bracket
• User manual
