New

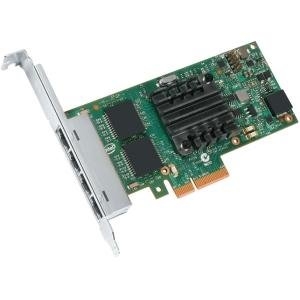

Intel NEK PCI-Express I350T4V2

Manufacturer: Intel

Reference I350T4V2

Condition: New

More info

Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	4
PCI version	2.1
PCI Card form factor	Half-height (low-profile)
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN	Jā
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000BaseT(X)
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex	Jā
Supported network protocols	TCP, UDP, IP
Maximum operating distance	100 m
LAN controller	Intel® I350
Internal	Jā
Component for	Server
Product colour	Green, Silver
Chipset	Intel® I350
LED indicators	LAN
Power consumption (typical)	5 W
Compatible operating systems	https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Linux operating systems supported	RedHat EL Linux 5.0, RedHat EL Linux 6.0, SuSE Linux 10, SuSE Linux 11
Server operating systems supported	Windows Server 2003 R2, Windows Server 2008 R2
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	35 - 90%
Width	68.9 mm
Depth	135.4 mm
Height	120 mm
Harmonized System (HS) code	85176990
Cable type	Cat 5 up to 100m
Market segment	Server
Intel Trusted Execution Technology	Nē
Thermal power	5 W
Embedded options available	Nē
Intel Virtual Machine Device Queues (VMDq)	Jā
PCI-SIG* SR-IOV Capable	Jā
On-chip QoS and Traffic Management	Jā
Intel Flexible Port Partitioning	Jā
Storage-over-ethernet	Jā
Speed & slot width	5.0 GT/s, x4 Lane
Message signal interrupt	Nē
Low halogen options available	Nē
Intelligent Offloads	Jā
iWARP/RDMA	Nē
Fiber Channel over Ethernet	Nē
Intel Ethernet Power Management	Jā
Intel Data Direct I/O Technology	Nē
Intel Virtualization Technology for Connectivity (VT-c)	Jā
Interface type	PCIe v2.1 (5.0 GT/s)
Product type	Network Interface Card
Thermal Design Power (TDP)	5 W
Number of QPI links	Quad
Processor family	Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Ethernet adapter ARK ID	84805
Export Control Classification Number (ECCN)	5A991
Commodity Classification Automated Tracking System (CCATS)	NA
Controller type	Intel I350
Cabling type	Cat 5 up to 100m
Bracket height	Low-Profile (LP) / Full-Height (FH)
Storage Over Ethernet	iSCSI, NFS
Born on date	Q3'14
Launch date	Q3'14
Network interface card cable medium	Copper
Network interface card type	Server
Product brief URL	http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350
Product name	Intel Ethernet Server Adapter I350-T4V2
Status	Launched
Last change	63903513
Product family	Intel Gigabit server adapter
Product series	Intel® I350
Product codename	Powerville
