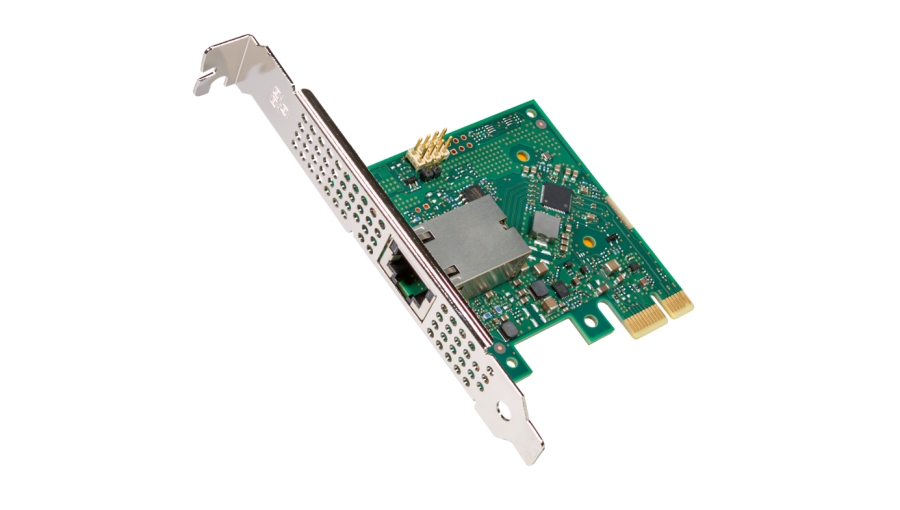

Intel NEK PCI-Express I226T1BLK

Manufacturer: Intel

Reference I226T1BLK

Condition: New

More info

The Intel® Ethernet Network Adapter I226-T1 is ideally suited for personal computers and workstations used for enterprise, gaming, and home networks. These systems require more bandwidth than ever before. This ultra-compact, easy-to-integrate PCIe 3.1 x1 adapter, is a cost-effective networking solution for speeds up to 2.5GbE. The I226-T1 is also designed with a ventilated bracket, for increased efficiency and reduced power consumption.
Packed with performance optimization capabilities, the I226-T1 includes advanced interrupt-handling features to reduce CPU overhead. Combining interrupt-handling features with intelligent filtering, ordering, and directing packets to specific queues and cores, enables load-balancing network traffic flows to improve throughput in multi-core platforms.
Based on the Intel® Ethernet Controller I226-LM, this versatile networking solution supports 2.5Gbps, 1Gbps, 100Mbps and 10Mbps network speeds without the need to overhaul existing cabling infrastructure. Simplifying technology transitions with autonegotiation between port speeds provides maximum flexibility.

Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
PCI version	3.1
PCI Card form factor	Full-height (low-profile)
Maximum data transfer rate	25000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3x, IEEE 802.3z
Ethernet LAN	Jā
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Wi-Fi	Nē
Jumbo frames support	Jā
Maximum operating distance	100 m
Internal	Jā
Component for	PC/Server
Product colour	Green, Silver
LED indicators	Activity, Link
Power consumption (typical)	1.4 W
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Sustainability compliance	Jā
Sustainability certificates	BSMI, CE, Federal Communications Commission (FCC), KCC, RoHS, VCCI
Width	68.7 mm
Depth	65.3 mm
Harmonized System (HS) code	8517620090
Market segment	Desktop
Ethernet adapter ARK ID	225771
Export Control Classification Number (ECCN)	5A991.B.4.A
Cabling type	CAT5e, CAT6, CAT6A
Launch date	Q3'23
Network interface card cable medium	Copper
