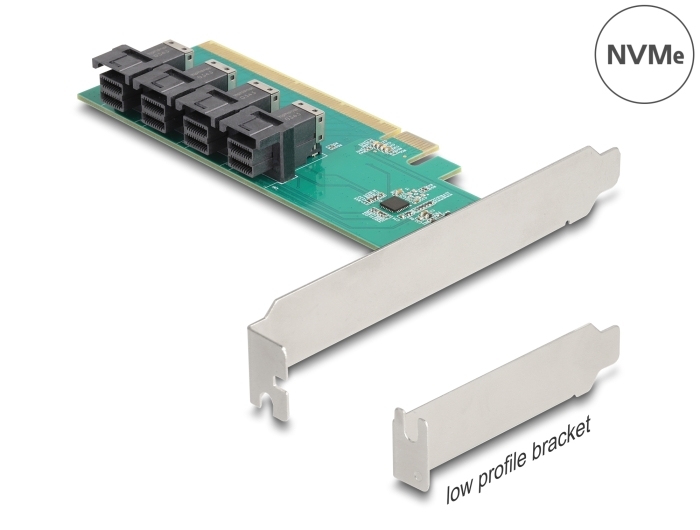

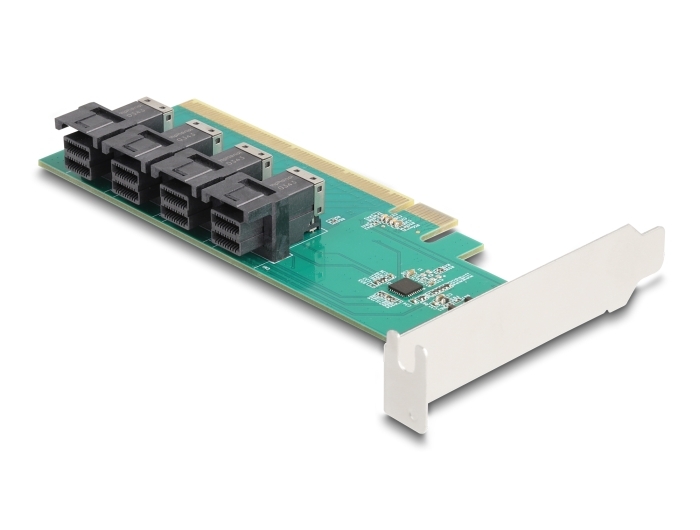

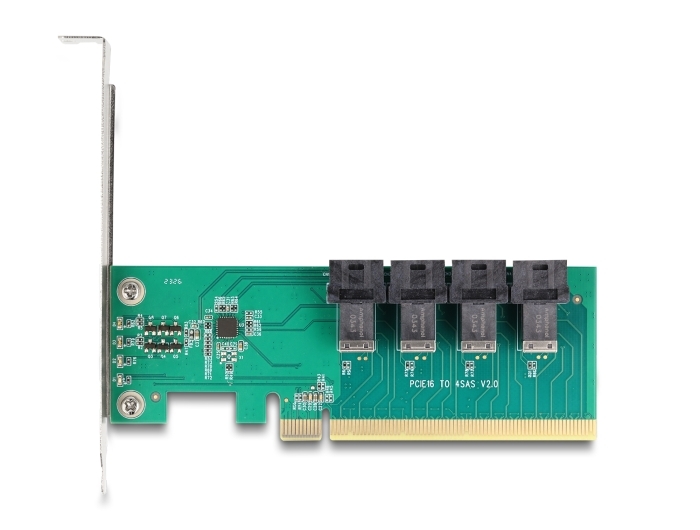

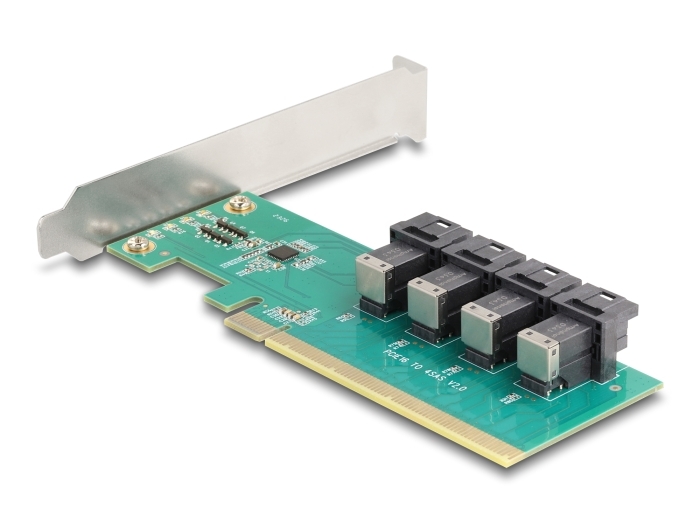

Delock PCI Express x16 Card to 4 x internal SFF-8643 NVMe - Bifurcation - Low Profile Form Factor

Reference 90777

Condition: New

More info

This PCI Express card by Delock expands the PC by four SFF-8643 interfaces. SSDs with e.g. U.2 interface can be connected to these ports by using an optional cable.

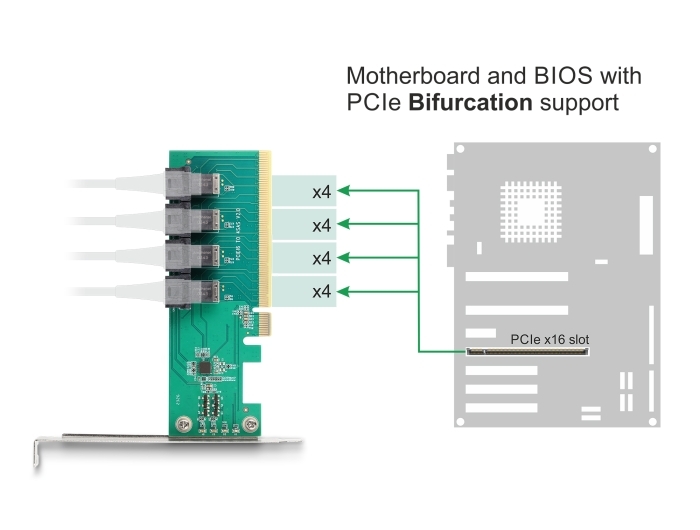

PCIe Bifurcation
The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports.

Note
Without PCIe bifurcation only the first SFF-8643 port of the card can be used.

System requirements:
• Linux Kernel 6.2 or above
• Windows 10/10-64/11
• Windows Server 2022
• PC with one free PCI Express x16 / x32 slot

Specification:
• Connectors:
4 x SFF-8643 female
1 x PCI Express x16, V4.0
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• 4 x LED indicator

Package content:
• PCI Express card
• Low profile bracket
• User manual

Data sheet:
http://www.delock.de/produkt/90777/pdf.html?sprache=en
