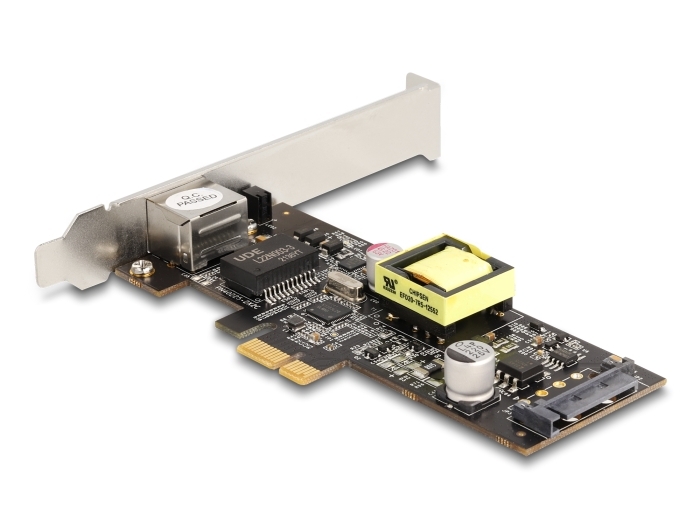

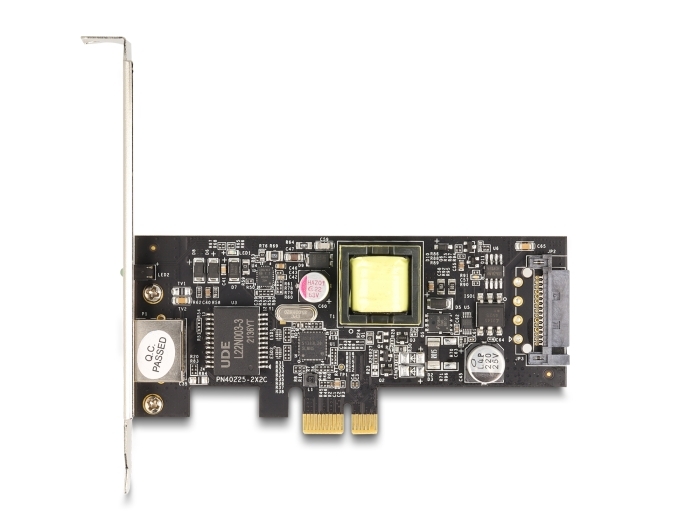

Delock PCI Express x1 Card to 1 x 2.5 Gigabit LAN PoE+ i225

Reference 88506

Condition: New

More info

The PCI Express card by Delock offers one network port with a data transfer rate up to 2500 Mbps.

NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

The RJ45 port supports Power over Ethernet according to IEEE 802.3af / 802.3at, so power can be supplied to PoE-enabled devices, such as IP cameras or PoE splitters via the network cable.

System requirements:
• Windows 10/10-64/11
• PC with one free PCI Express slot

Specification:
• Connectors:
  external:
  1 x 2.5 Gigabit LAN RJ45 jack
  internal:
  1 x PCI Express x1, V2.1
  1 x SATA 15 pin power connector
• Chipset: Intel i225V
• Data transfer rate:
  Ethernet up to 10 Mbps (Half/Full Duplex)
  Fast Ethernet up to 100 Mbps (Half/Full Duplex)
  Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
  NBASE-T with up to 2.5 Gbps (Half/Full Duplex)
  PCI Express x1 up to 2.5 Gbps
• Supports IEEE 802.3 / 802.3u / 802.3ab
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports Wake On LAN (WOL)
• Supports 9k Jumbo Frames
• Supports PXE
• Supports IEEE 802.3af PoE
• Supports IEEE 802.3at PoE+
• Phantom power (Mode B, pairs 4/5 and 7/8)
• Output power: max. 30 W total
• LED indicator for link and activity

Package content:
• PCI Express card

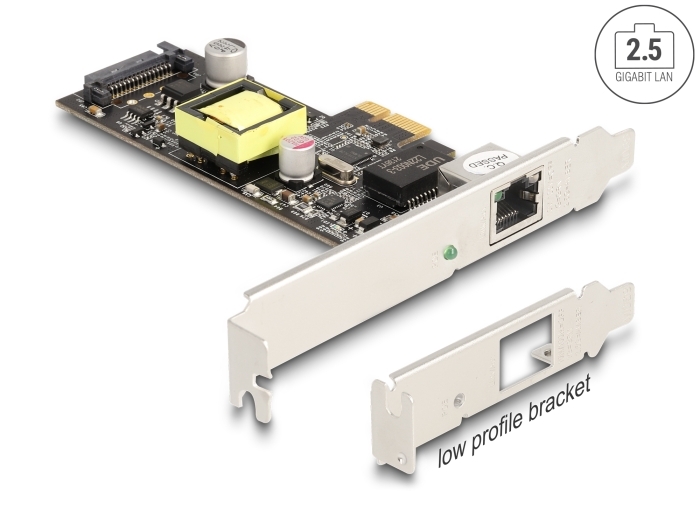

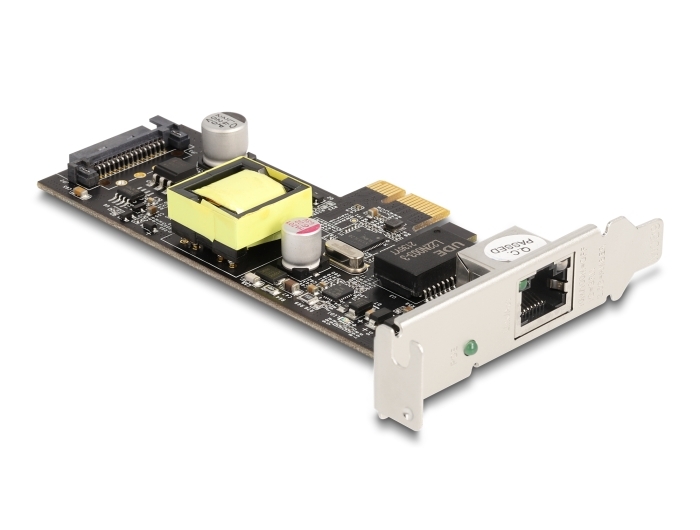

• Low profile bracket
• User manual
