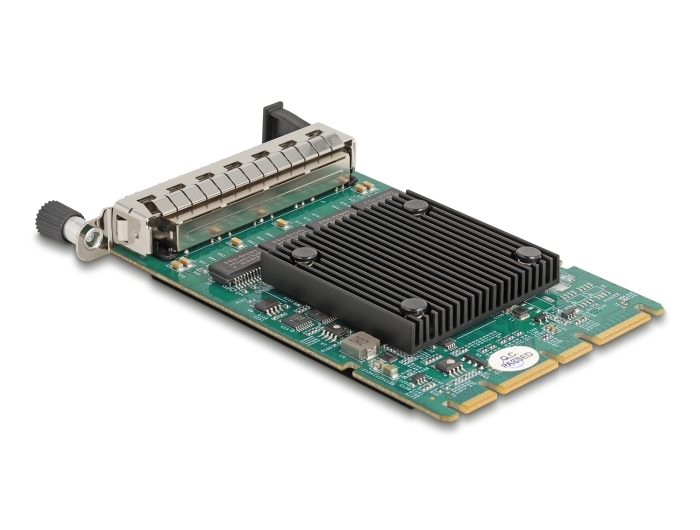

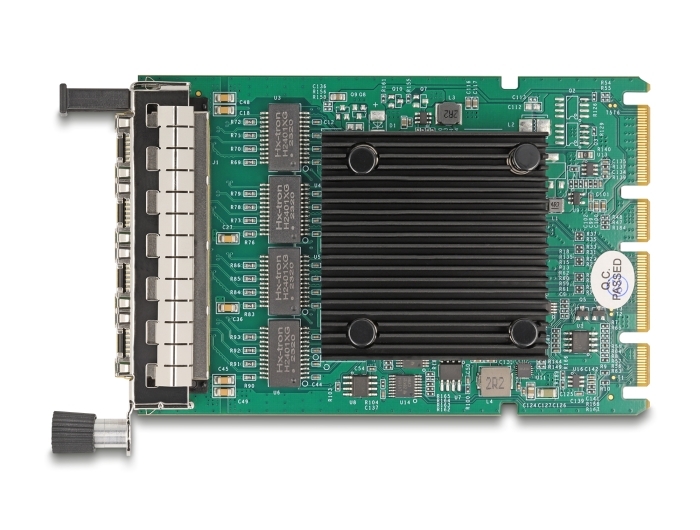

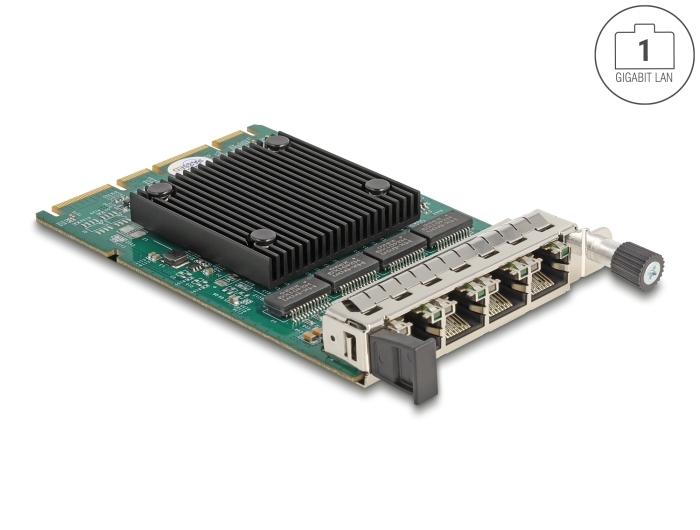

Delock OCP 3.0 Card to 4 x RJ45 Gigabit LAN

Reference 88300

Condition: New

More info

The OCP 3.0 card by Delock offers four network ports with a data transfer rate up to 1 Gbps.

OCP NIC 3.0 Small Form Factor (SFF)
The Open Compute Project provides open and unified standards that make data centers more energy-efficient and cost-effective. The OCP NIC 3.0 SFF interface for servers supports PCI Express 4.0 with 16 lanes. The mechanical design simplifies maintenance and servicing, as it is no longer necessary to open the server housing for replacement.

Specification:
• Connectors:
  external: 4 x Gigabit LAN RJ45 jack
  internal: 1 x OCP 3.0 4C+ connector
• OCP 3.0 W1 SFF 76 mm
• Fastening with pull tab
• Chipset: Intel i350
• Data transfer rate:
  Ethernet up to 10 Mbps
  Fast Ethernet up to 100 Mbps
  Gigabit Ethernet up to 1000 Mbps
  PCI Express x4 up to 16 Gbps
• Supports IEEE 802.3 / 802.3u / 802.3ab
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports 9k Jumbo Frames
• LED indicator for link and activity

Package content:
• OCP 3.0 card
• User manual

Data sheet:
http://www.delock.de/produkt/88300/pdf.html?sprache=en
