Delock PCI Express x4 Card to 1 x external USB Type-C™ 10 Gbps female + 1 x external USB Type-C™ 10 Gbps (DP Alt Mode) female

Reference 90161

Condition: New

More info

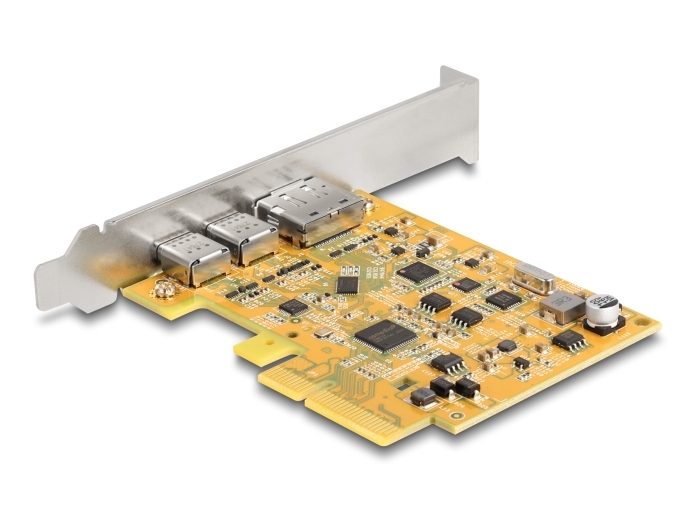

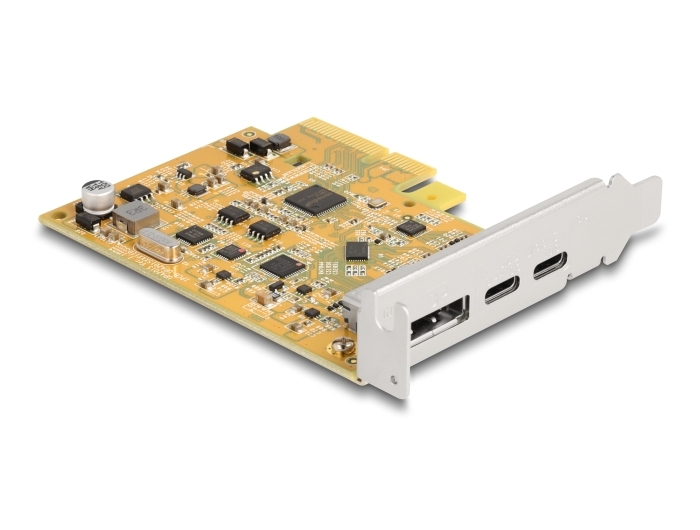

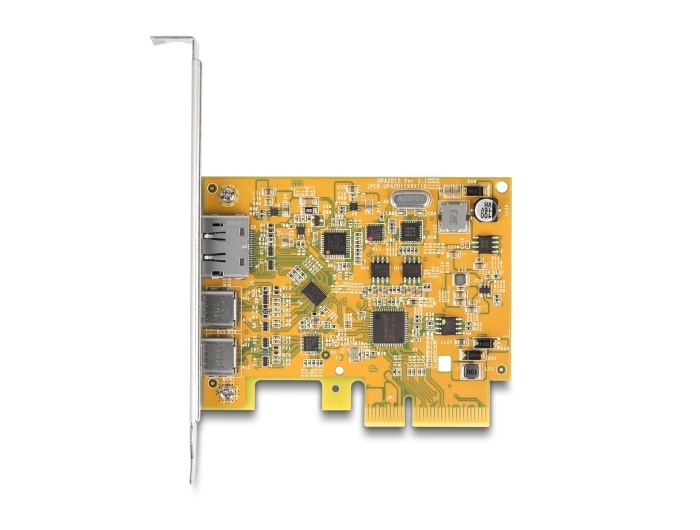

This PCI Express card by Delock expands the PC by two external USB-C™ ports. Different USB devices such as USB flash memory, card reader, external enclosure etc. can be connected.

Video output at USB-C™ port

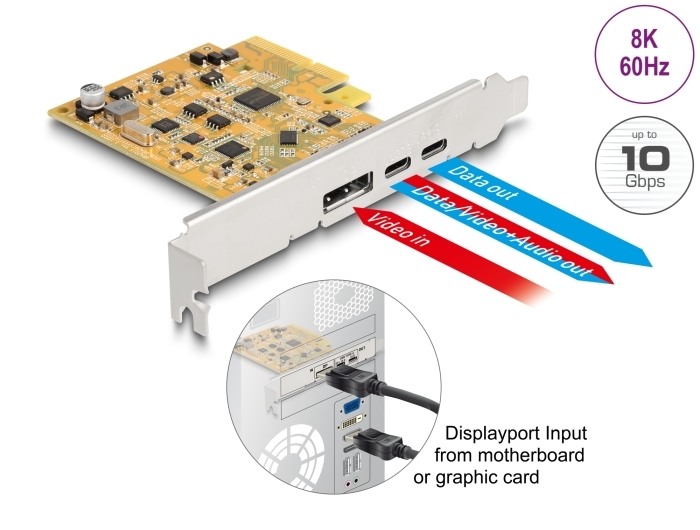

By using the included cable, the DisplayPort connector of the PCI Express card can be connected to a DisplayPort output of a graphics card on the motherboard. Therefore one USB-C™ port will be DP Alt Mode capable. A monitor can be connected to this port in order to transmit video and audio signals. The maximum resolution of the output depends on the input signal.

System requirements:
• Linux Kernel 5.15 or above
• Windows 10/10-64/11
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
• Graphics card with DisplayPort output (to support DP Alt Mode)

Specification:
• Connectors:
  external:
  1 x USB 10 Gbps USB Type-C™ female
  1 x USB 10 Gbps USB Type-C™ female (DP Alt Mode capable)
  1 x DisplayPort female (for DP Alt Mode function)
  internal:
  1 x PCI Express x4 (2-Lane), V3.0
• Chipset: Asmedia ASM3142
• Data transfer rate up to 10 Gbps
• Resolution up to 7680 x 4320 @ 60 Hz (depending on the system and the connected hardware)
• Power supply via PCI Express interface
• Electrical power per port: max. 7.5 watt (5 V / 1.5 A)
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1

Package content:
• PCI Express card
• DisplayPort cable, length ca. 35 cm

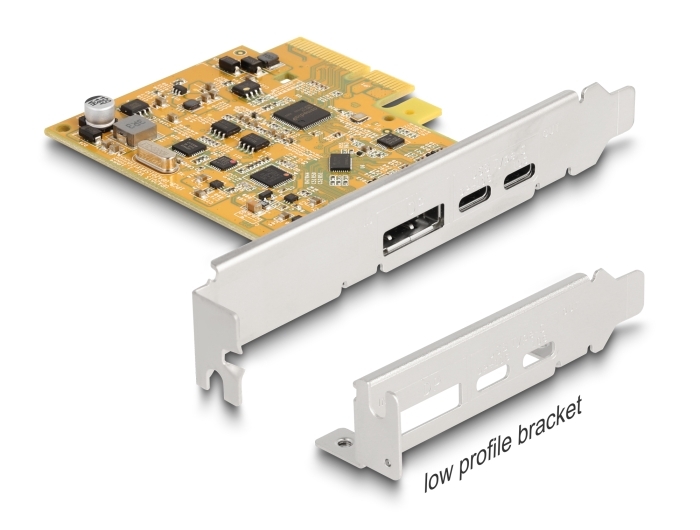

• Low profile bracket
• User manual
