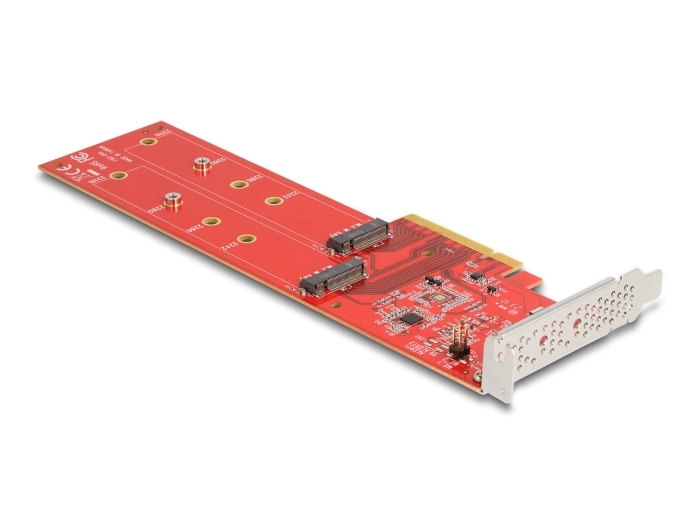

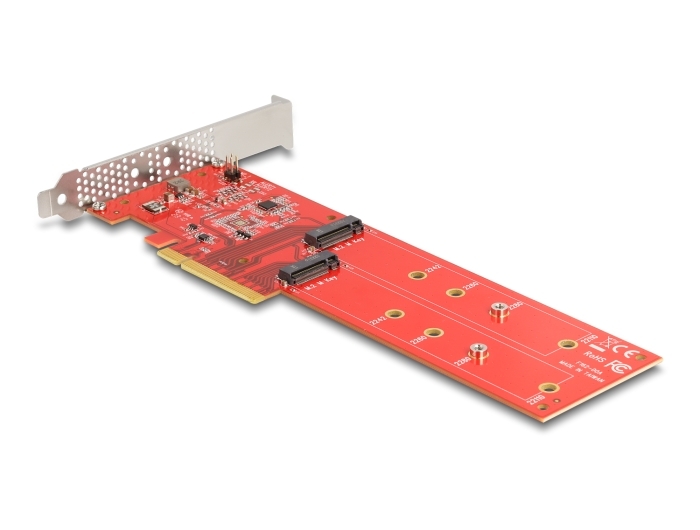

Delock PCI Express x8 Card to 2 x internal NVMe M.2 Key M 110 mm - Bifurcation - Low Profile Form Factor

Reference 90616

Condition: New

More info

This PCI Express card by Delock expands the PC by two M.2 slots. M.2 SSDs in format 22110, 2280, 2260 and 2242 can be connected. The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple slots with M.2 SSDs.

Note
Without PCIe bifurcation only the first M.2 slot of the card can be used.

System requirements:
• Linux Kernel 6.2 or above
• Windows 10/10-64/11
• Windows Server 2022
• PC with one free PCI Express x8 / x16 / x32 slot
• Motherboard and BIOS with PCIe bifurcation support

Specification:
• Connectors:
  internal:
  2 x M.2 key M slot
  1 x PCI Express x8, V4.0
  2 x 2 pin pin header for LED
• Interface: PCIe

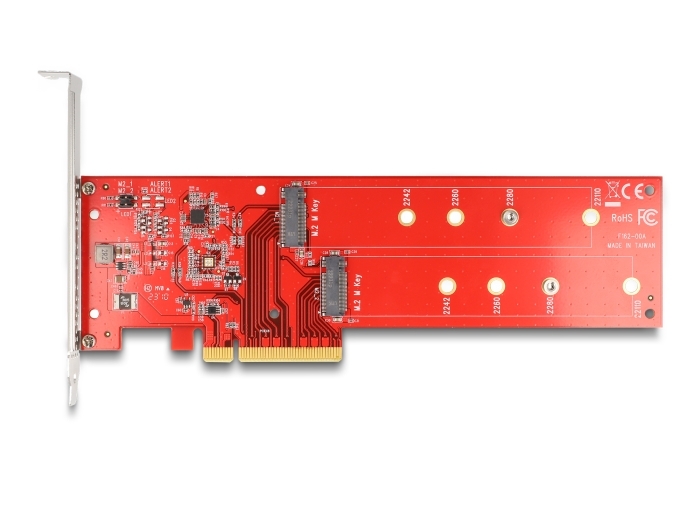

• Supports M.2 modules in format 22110, 2280, 2260 and 2242 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• Supports S.M.A.R.T.
• Supports TRIM

Package content:
• PCI Express card

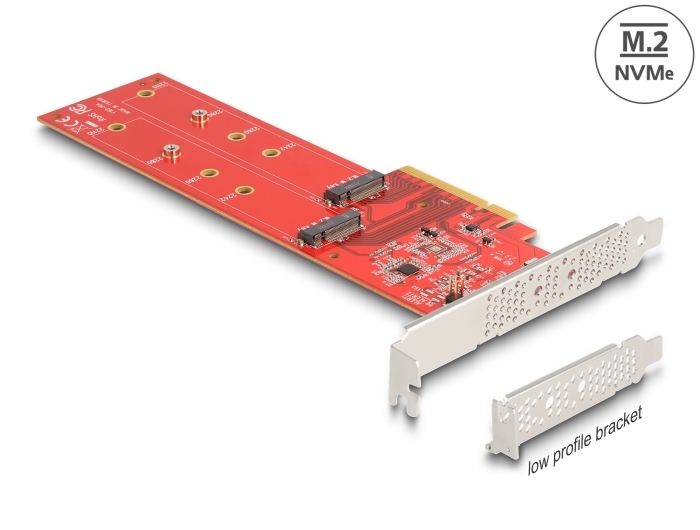

• Low profile bracket

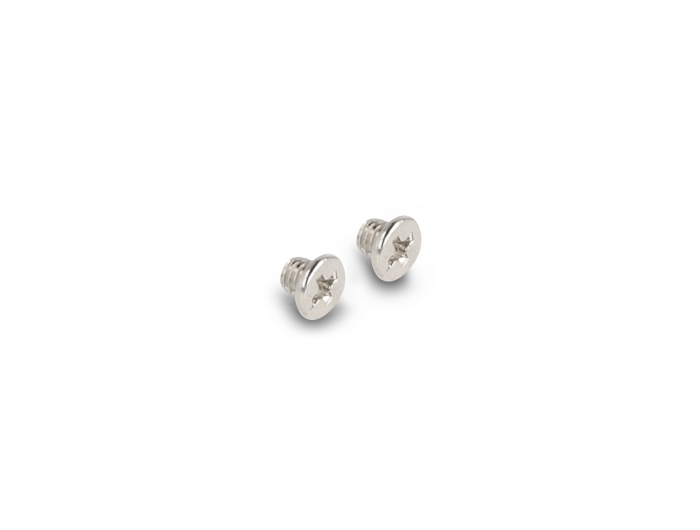

• 2 x screw
• User manual
