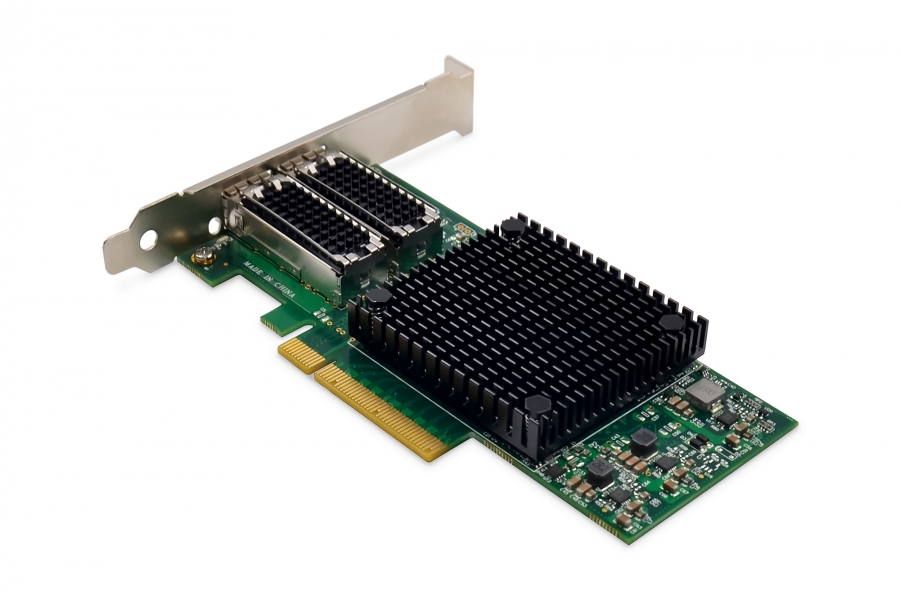

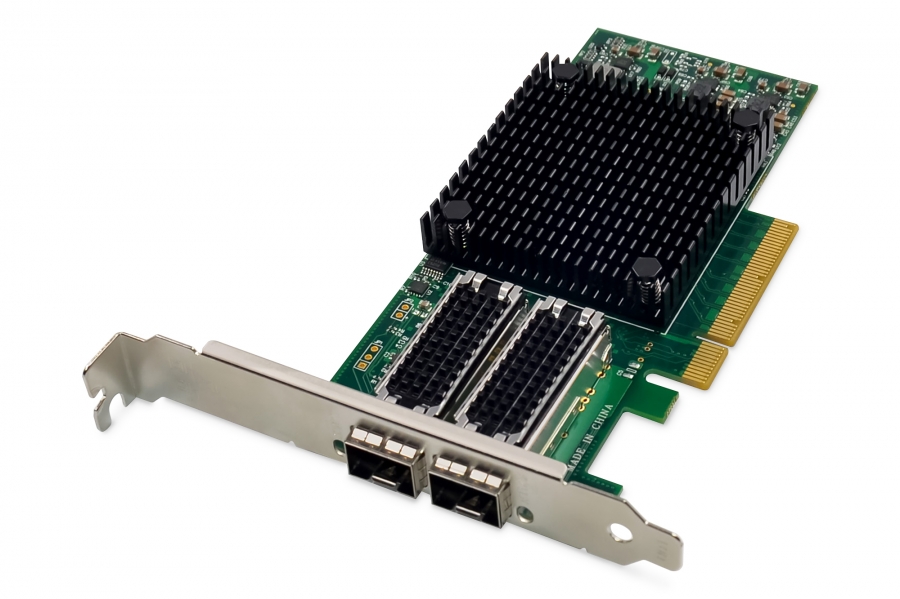

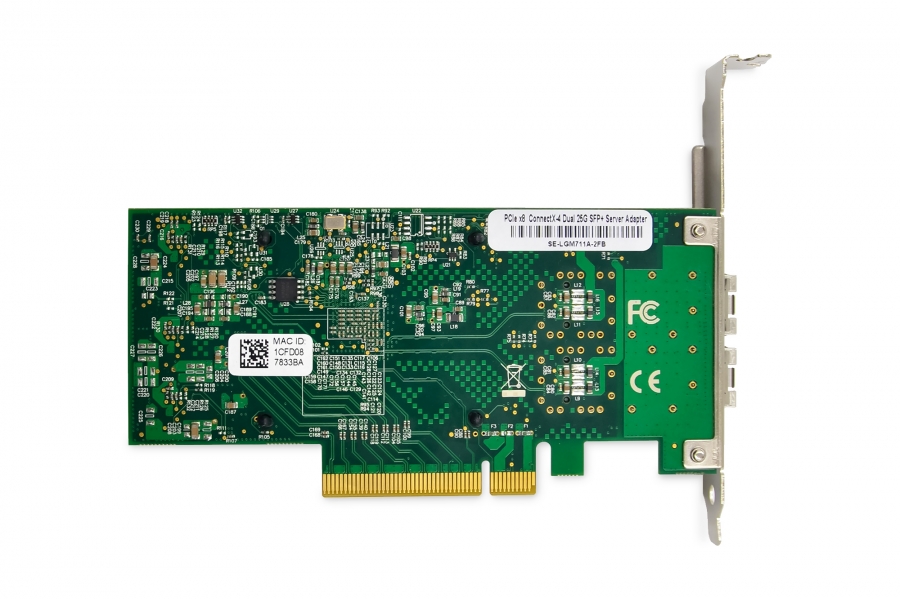

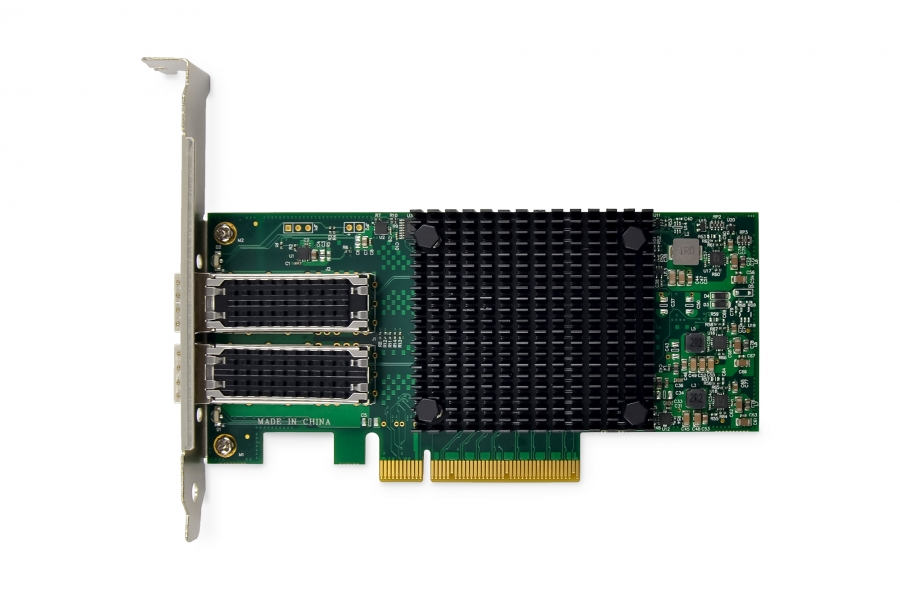

Digitus 2 port 25 Gigabit Ethernet network card, SFP28, PCI Express, Mellanox chipset
Previous Next

Digitus 2 port 25 Gigabit Ethernet network card, SFP28, PCI Express, Mellanox chipset

Digitus

DN-10180

New

Dual-Port 25G SFP28 Adapter

Introducing the DN-10180 - a high-performance network interface card that is designed to provide reliable and efficient network connectivity for your server or workstation. This card is fully compliant with PCI Express Specification Revision 3.0, 1.1, and 2.0, and supports link rates of 2.5, 5.0, or 8.0GT/s at x8.

Supports dual-Port 25G,10G, or 1Gb/s SFP+
Compliant with PCI Express Specification Revision 3.0,1.1 and 2.0,2.5, 5.0, or 8.0GT/s link rate x8
Support Standards IEEE802.3ad, IEEE802.1ax, IEEE802.1Q, IEEE802.1P, IEEE802.1Qaz, IEEE802.1Qbb, IEEE802.1Qbg, IEEE1588V2
Jumbo frame support 9.6KB
Independent NC-SI SMBus interface

Introducing the DN-10180 - a high-performance network interface card that is designed to provide reliable and efficient network connectivity for your server or workstation. This card is fully compliant with PCI Express Specification Revision 3.0, 1.1, and 2.0, and supports link rates of 2.5, 5.0, or 8.0GT/s at x8.
The DN-10180 features auto-negotiation capabilities that allow it to operate at x8, x4, x2, or x1, making it compatible with a wide range of devices. It also supports MSI/MSI-X mechanisms for efficient interrupt handling and dual-Port 25G, 10G, or 1Gb/s SFP+ connectivity for flexible network deployment.
This network interface card is designed to support a wide range of industry standards, including IEEE802.3by, 25G supporting all FEC modes, IEEE802.3az Energy Efficient Ethernet, IEEE802.3ap based auto-negotiation and KR startup, and IEEE802.3ad, IEEE802.1ax, IEEE802.1Q, IEEE802.1P, IEEE802.1Qaz, IEEE802.1Qbb, IEEE802.1Qbg, IEEE1588V2.
The DN-10180 also supports jumbo frame support up to 9.6KB, independent NC-SI SMBus interface, independent stand-by and wake-on-Lan signals, hardware-based reliable transport, collective operation offloads, and PeerDirect RDMA (aka GPUDirect communication acceleration).
Other key features of the DN-10180 include 64/66 encoding, extended reliable connected transport, dynamically connected transport, RDMA over Converged Ethernet (RoCE), TCP/UDP/IP stateless offload, LSO.LRO. checksum offload, and hardware offload of encapsulation and decapsulation of NVGRE and VXLAN overlay networks.
This network interface card also supports SR-IOV, Multi-function, Enhanced QoS, VMware support, and up to 256 virtual functions and 8 physical functions per port. It offers guaranteed QoS for VMs and is compatible with OpenMPI, IBM PE, OSU MPI, and Intel MPI protocols.
The DN-10180 is designed to support remote boot over Ethernet, iSCSI, PXE, and UEFI and is compatible with a wide range of operating systems, including FreeBSD, Linux 5.x and above, VMware 5.5/6.0/6.5/6.7, Windows Server 2008/2012/2016/2019, and Win7/Win8/Win8.1/Win10 32 or 64bit.
Overall, the DN-10180 is a high-performance network interface card that offers reliable and efficient network connectivity for your server or workstation. It is designed to meet the demands of modern data centers and is compatible with a wide range of devices and operating systems.

Compliant with PCI Express Specification Revision 3.0,1.1 and 2.0,2.5, 5.0, or 8.0GT/s link rate x8
Auto-negotiates to x8, x4, x2, or x1
Support for MSI/MSI-X mechanism
Supports dual-Port 25G,10G, or 1Gb/s SFP+
IEEE802.3by,25G supporting all FEC modes, IEEE802.3az Energy Efficient Ethernet, IEEE802.3ap based auto-negotiation and KR startup
Support Standards IEEE802.3ad, IEEE802.1ax, IEEE802.1Q, IEEE802.1P, IEEE802.1Qaz, IEEE802.1Qbb, IEEE802.1Qbg, IEEE1588V2
Jumbo frame support 9.6KB
Independent NC-SI SMBus interface
Independent stand-by and wake-on-Lan signals
Collective operation offloads
PeerDirect RDMA (aka GPUDirect communication acceleration)
64/66 encoding
Extended Reliable connected transport
Dynamically connected transport
RDMA over Converged Ethernet (RoCE)
TCP/UDP/IP stateless offload
LSO.LRO. checksum offload
Hardware offload of encapsulation and decapsulation of NVGRE and VXLAN overlay networks
SR-IOV, Multi-function, Enhanced QoS, VMware support
SR-IOV up to 256 virtual functions
SR-IOV up to 8 physical functions per port
Guaranteed QoS for VMs
OpenMPI, IBM PE, OSU MPI, Intel MPI protocol support
NC-SI over MCTP over SMBus and NC-SI over MCTP over PCIe-Baseboard Management Controller interface
Remote boot over Ethernet, iSCSI, PXE, and UEFI
Supports Operation Systems: FreeBSD, Linux5.x and above, VMware5.5/6.0/6.5/6.7, Windows server2008/2012/2016/2019, win7/win8/win8.1/win10 32 or 64bit

Package content:
1 x PCIe x8 Mellanox Connectx-4 Dual-Port 25G SFP+ adapter
1 x User’s Manual
1 x CD Driver
1 x Low profile bracket

Platums(cm)15.5
Grums(cm)3
Augstums(cm)22
Svars(kg)0.2575
Tilpums(cm3)1023
Izcelsmes valstsCN
