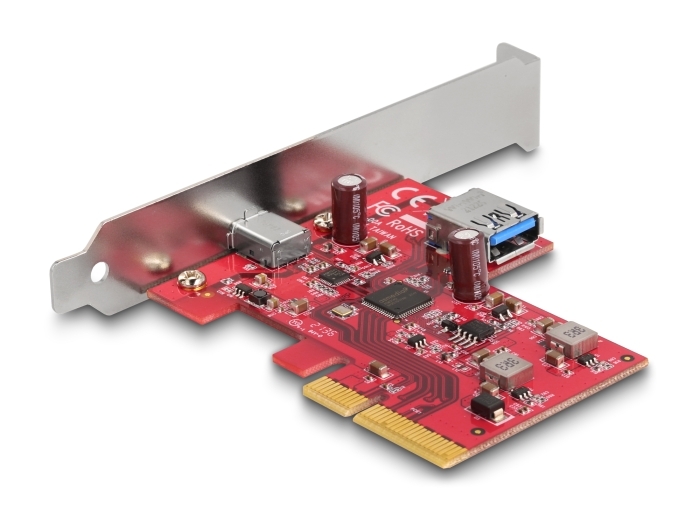

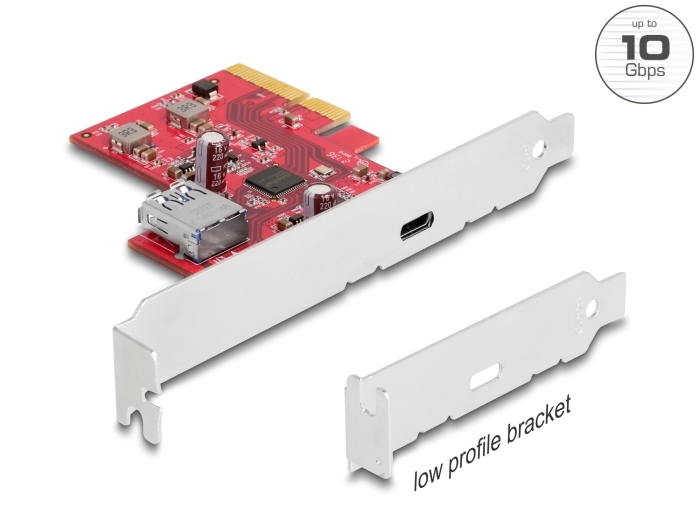

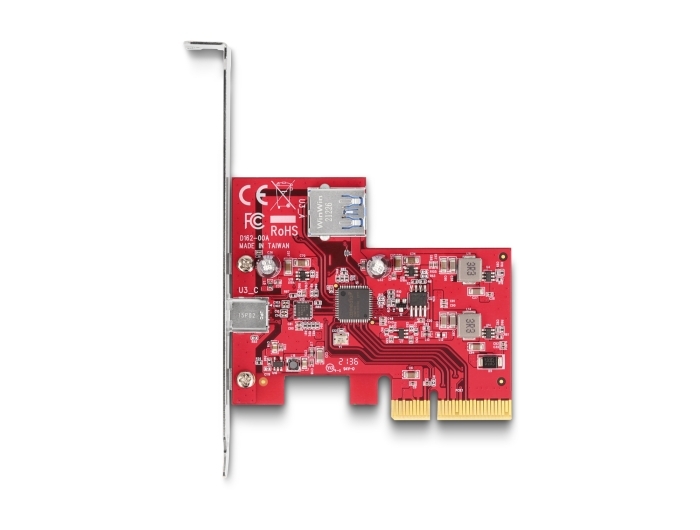

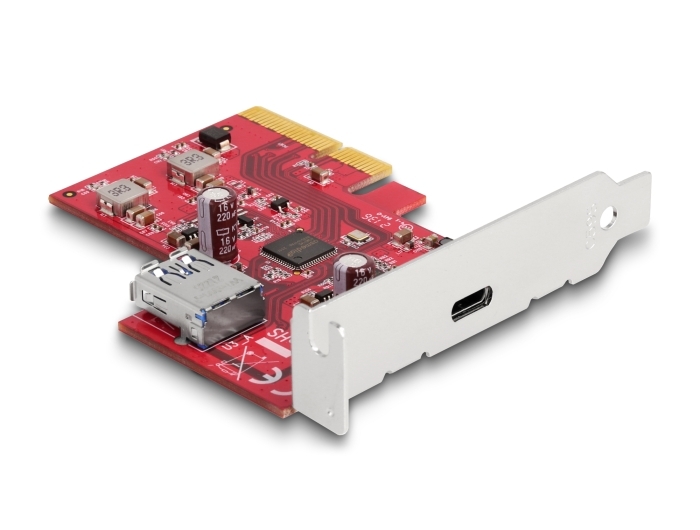

Delock PCI Express x4 Card to 1 x external USB 10 Gbps USB Type-C™ female + 1 x internal USB 10 Gbps Type-A female - Low Profile

Reference 90158

Condition: New

More info

This PCI Express card by Delock expands the PC by two USB 10 Gbps ports. Different USB devices such as USB flash memory, card reader, external enclosure etc. can be connected. The card allows a data transfer rate of 10 Gbps on both ports when used simultaneously.

System requirements:
• Linux Kernel 5.15 or above
• Windows 10/10-64/11
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Specification:
• Connectors:
  external: 1 x USB 10 Gbps USB Type-C™ female
  internal:
  1 x PCI Express x4, V3.0
  1 x USB 10 Gbps Type-A female
• Chipset: Asmedia ASM3142
• Data transfer rate up to 10 Gbps
• Power supply via PCI Express interface or via SATA 15 pin power connector
• Electrical power per port:
  USB Type-C™: max. 15 watt (5 V / 3 A)
  USB Type-A: max. 10 watt (5 V / 2 A)
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports Multiple INs
• Bootable

Package content:
• PCI Express card USB 10 Gbps
• Low profile bracket
• User manual
