Delock PCI Express x4 Card to 2 x external USB 10 Gbps Type-A female - Low Profile Form Factor

Reference 90106

Condition: New

More info

This PCI Express card by Delock expands the PC by two external USB 10 Gbps ports. Different USB Type-A devices, such as docking stations, card readers, external enclosure etc., can be connected to the card. The card allows a data transfer rate of 10 Gbps on both ports when used simultaneously.

System requirements:
• Linux Kernel 5.15 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Specification:
• Connectors:
  external:
  2 x USB 10 Gbps Type-A female
  internal:
  1 x SATA 15 pin power connector
  1 x PCI Express x4, V3.0
• Chipset: Asmedia ASM3142
• Data transfer rate up to 10 Gbps
• Power supply via PCI Express interface or via SATA 15 pin power connector
• Electrical power per port: max. 4.5 watt (5 V / 900 mA)
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports UASP
• Supports Multiple INs
• Bootable

Package content:
• PCI Express card USB 10 Gbps

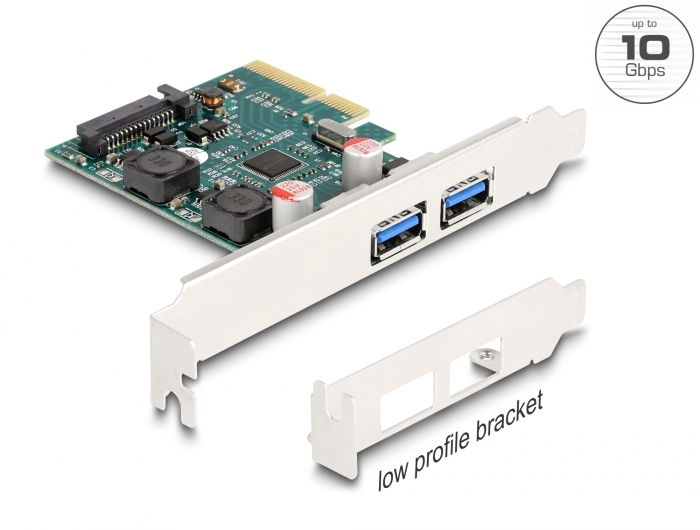

• Low profile bracket
• User manual
