Delock PCI Express Card > 4 x 1 Gigabit LAN PoE+ RJ45

Reference 89559

Condition: New

More info

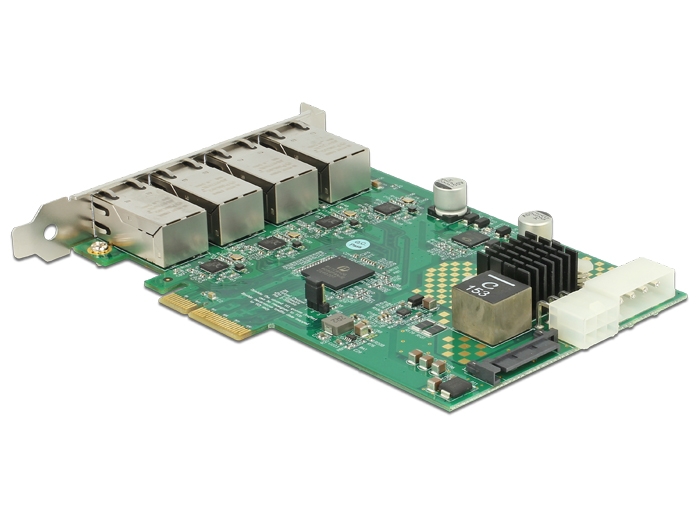

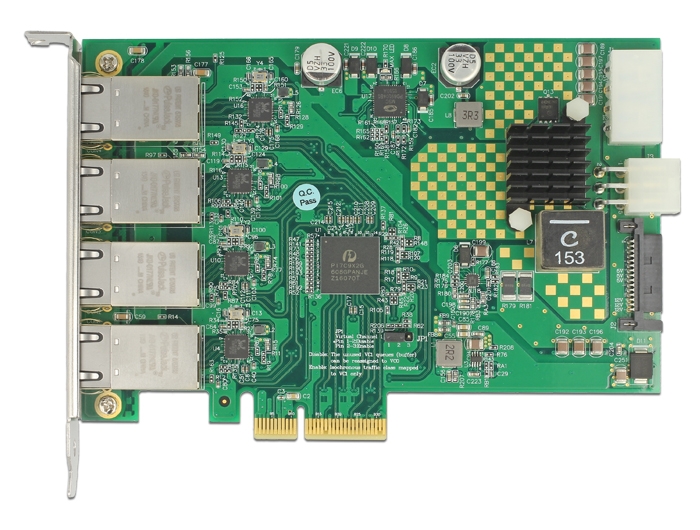

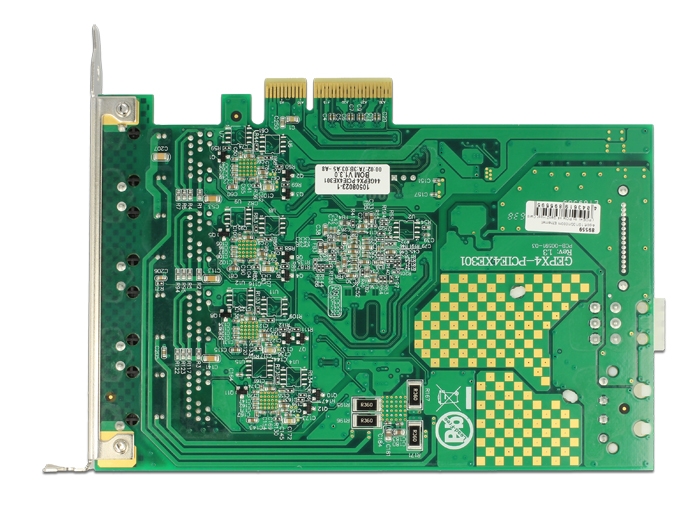

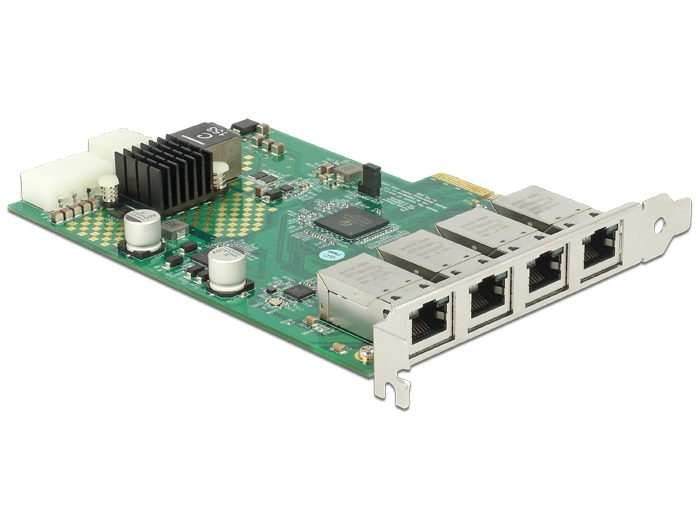

This PCI Express card by IOI offers four network ports with a data transfer rate up to 1 Gbps. The RJ45 ports support Power over Ethernet according to IEEE 802.3af / 802.3at, so you can supply power to PoE-enabled devices, such as an IP camera or a PoE splitter via the network cable.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux Kernel 2.6.31
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Specification:
• IOI item number: GEPX4-PCIE4XE301
• Connector:
external: 4 x Gigabit LAN RJ45 female
internal: 1 x SATA 15 pin power connector
                  1 x 6 pin power connector
                  1 x 4 pin power connector
                  1 x PCI Express x4, V2.1
• Chipset: Realtek
• Data transfer rate:
Ethernet up to 10 Mb/s
Fast Ethernet up to 100 Mb/s
Gigabit Ethernet up to 1 Gbps
PCI Express x1 up to 5 Gbps per lane
• Supports Full Duplex flow control (IEEE 802.3x)
• Supports IEEE 802.3 10Base-T and 802.3u 100Base-TX
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.3az-2010 (EEE)
• Supports 9k Jumbo frames
• Supports IEEE 802.3af & IEEE 802.3at Power Sourcing Equipment (PSE)
• Power delivery: max. 65 W total
• PoE power input from PCIe, SATA 15 pin, 4 or 6 pin power connector

Package content:
• PCI Express card
• Driver CD
• User manual

Data sheet:
http://www.delock.de/produkt/89559/pdf.html?sprache=en
