Delock PCI Express 4.0 x8 Card to 2 x internal U.2 NVMe SFF-8639 - Bifurcation

Reference 90091

Condition: New

More info

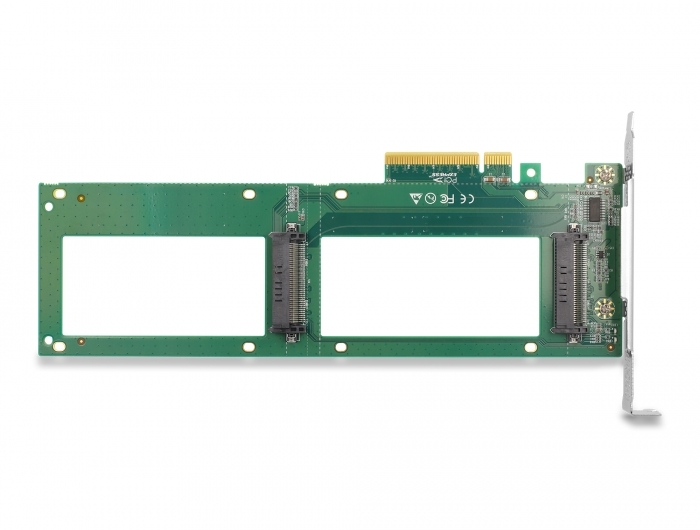

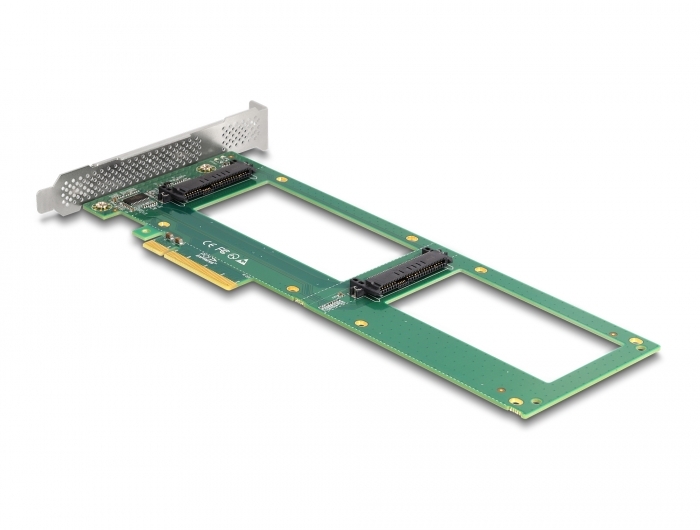

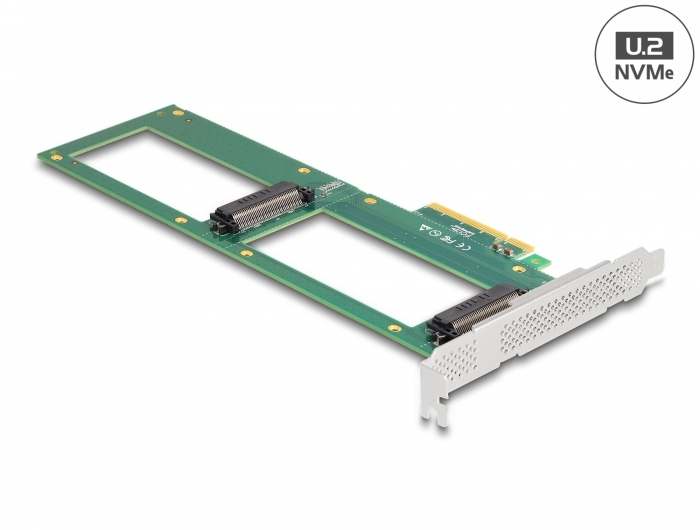

This PCI Express card by Delock expands the PC by two U.2 interfaces. It supports the connection of up to two U.2 SSDs in 2.5″ format.

PCIe Bifurcation
The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports.

Note
Without PCIe bifurcation only the first SFF-8639 port of the card can be used.

System requirements:
• Linux Kernel 5.11 or above
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• PC with one free PCI Express x8 / x16 / x32 slot
• Motherboard and BIOS with PCIe bifurcation support

Specification:
• Connectors:
  internal:
  2 x U.2 SFF-8639 female
  1 x PCI Express x8, V4.0
• Supports NVM Express (NVMe)
• 2 x LED indicator for power and activity
• Bootable, ex UEFI version 2.3.1
• Supports S.M.A.R.T.
• Supports TRIM
• 8 x mounting holes
• Humidity: 15 ~ 90 %
• Operating temperature: 5 °C ~ 50 °C
• Storage temperature: -25 °C ~ 70 °C

Package content:
• PCI Express card
• 8 x screw
• User manual

Data sheet:
http://www.tragant.de/produkt/90091/pdf.html?sprache=en
