Delock PCI Express Card to 1 x internal USB 3.2 Gen 2 key B 20 pin female

Reference 90068

Condition: New

More info

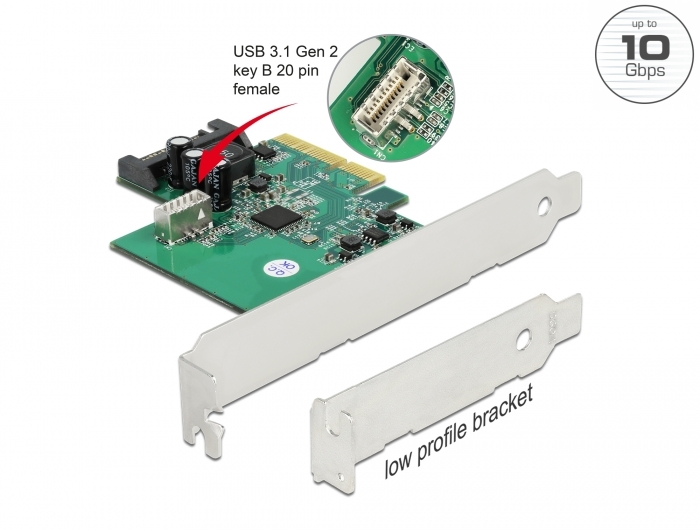

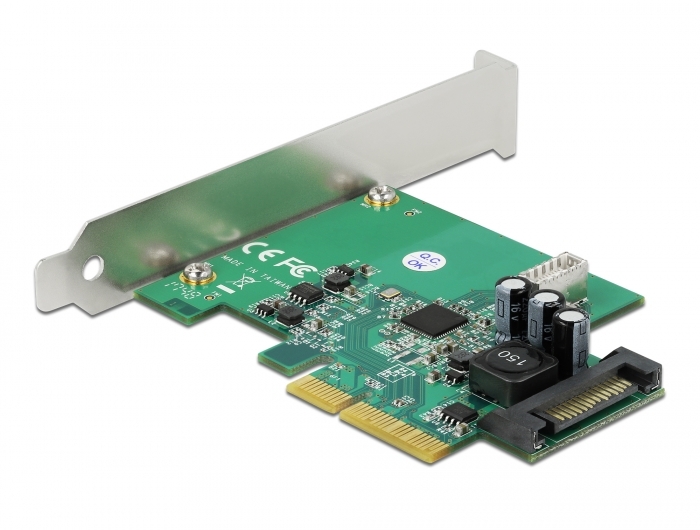

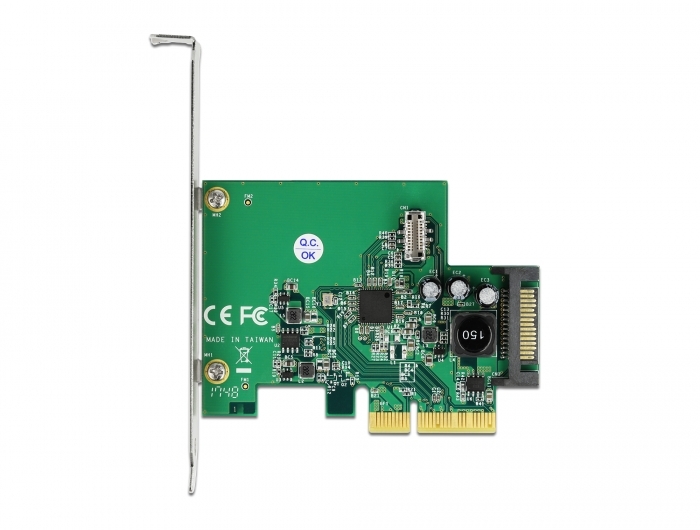

This PCI Express card by Delock expands the PC by one internal USB 3.2 key B 20 pin female port. Various cables can be connected to the card to provide up to two USB Type-A interfaces.

System requirements:
• Linux Kernel 4.4 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
• Optional: power supply with a free SATA power connector

Specification:

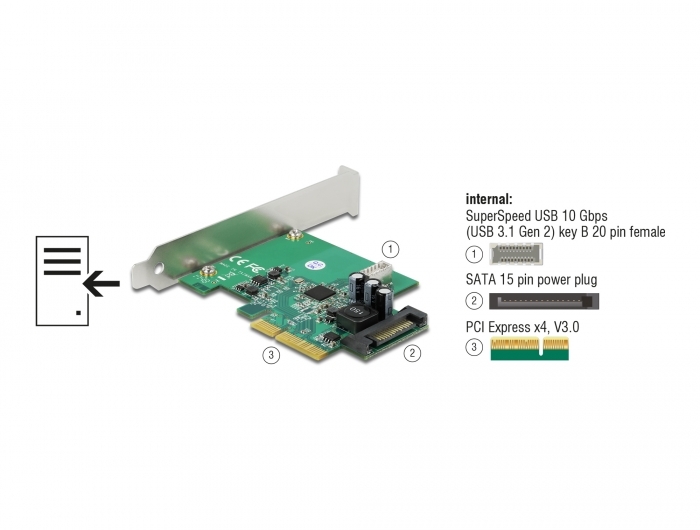

• Connectors:
  internal:
  1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) key B 20 pin female
  1 x SATA 15 pin power plug
  1 x PCI Express x4, V3.0
• Chipset: Asmedia ASM3142
• Data transfer rate up to:
  SuperSpeed USB 10 Gbps,
  SuperSpeed USB 5 Gbps,
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• Power supply via PCI Express interface or via SATA 15 pin power connector
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Compliant with USB Attached SCSI Protocol (UASP) Rev. 1.0

Package content:
• PCI Express card
• Low profile bracket
• User manual
