Delock PCI Express Card to 2 x Serial RS-232

Reference 90046

Condition: New

More info

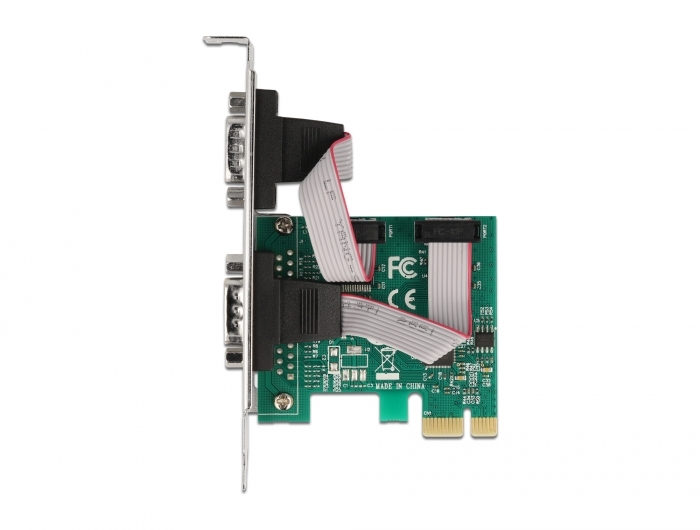

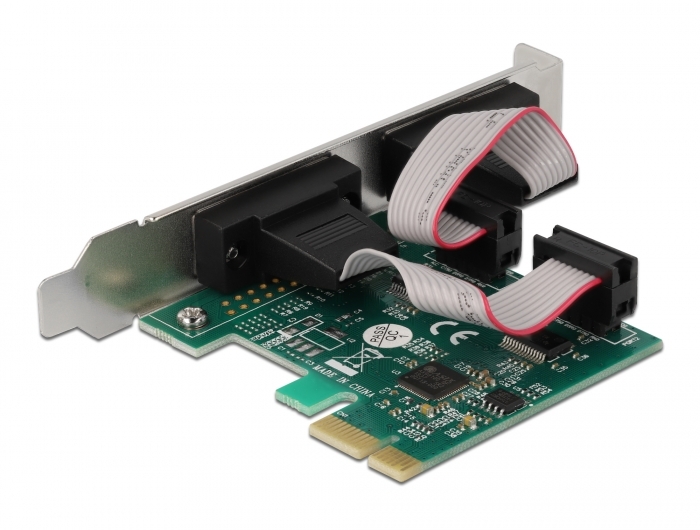

The PCI Express card by Delock expands a PC by two external serial ports. Different devices such as scanner, protocol converter, IoT devices etc. can be connected to this card.

Low Profile Form Factor

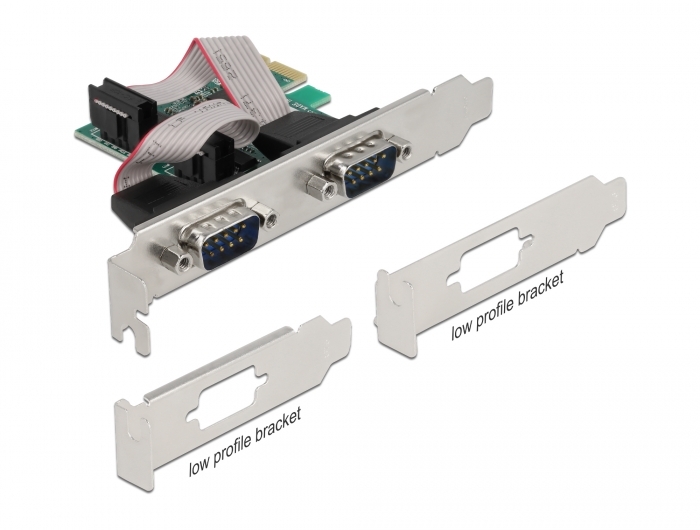

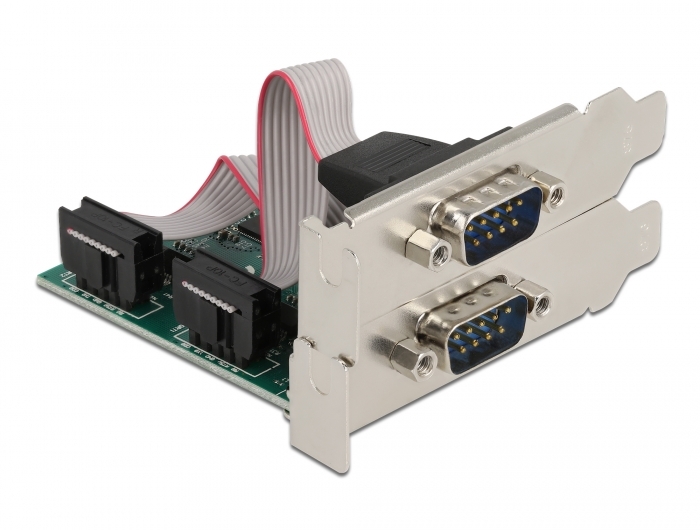

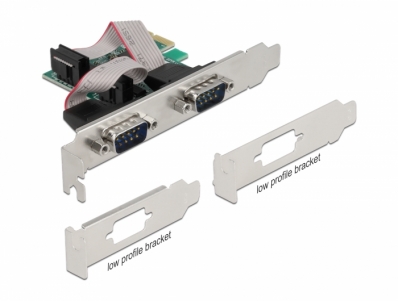

By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.

System requirements:
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express slot

Specification:
• Connectors:
external: 2 x serial RS-232 DB9 male
internal: 1 x PCI Express x1, V2.0
• Chipset: ASIX AX99100
• Compatible with 16C950 UART
• Supports Active State Power Management (ASPM)
• Supports Direct Memory Access (DMA)
• Data transfer rate up to 921.6 Kbps
• FIFO: 256 byte
• Databits: 5, 6, 7, 8, 9
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Operating temperature: 0 °C ~ 70 °C

Package content:
• PCI Express card
• 2 x low profile bracket
• Driver CD
• User manual
