Delock PCI Express x4 Card 4 x RJ45 Gigabit LAN PoE+ i350

Reference 88501

Condition: New

More info

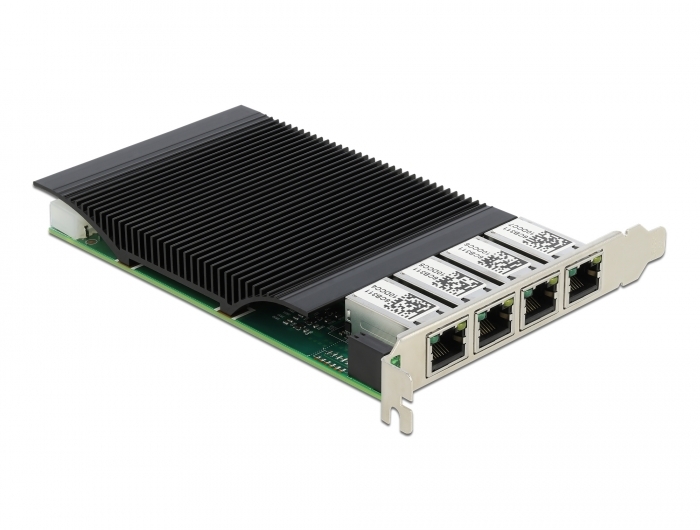

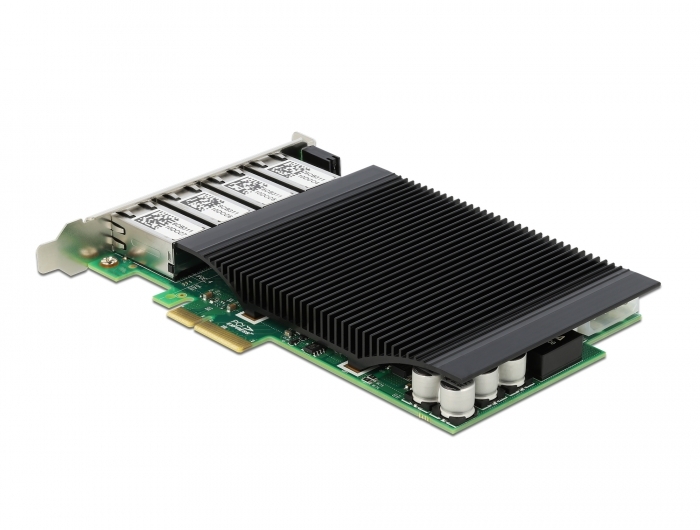

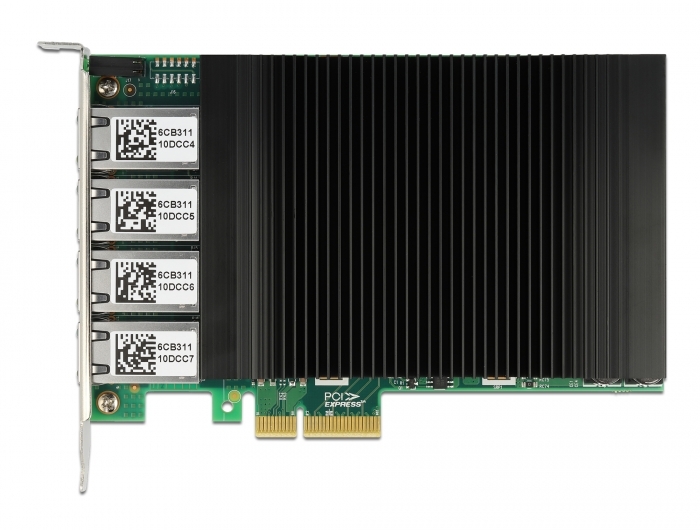

The PCI Express card by Delock offers four network ports with a data transfer rate up to 1000 Mbps.

PoE support
The RJ45 ports support Power over Ethernet according to IEEE 802.3af / 802.3at, so power can be supplied to PoE-enabled devices, such as IP cameras or PoE splitters via the network cable.

System requirements:
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express slot

Specification:
• Connectors:
external:
4 x Gigabit LAN RJ45 jack with screw-nut
internal:
1 x PCI Express x4, V2.1
1 x 4 pin power connector
• Chipset: Intel i350
• Data transfer rate:
  Ethernet up to 10 Mbps (Half/Full Duplex)
  Fast Ethernet up to 100 Mbps (Half/Full Duplex)
  Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
  PCI Express x4 up to 16 Gbps
• Suitable for Gigabit Ethernet vision systems
• Supports IEEE 1588 PTP
• Supports IEEE 802.3 / 802.3u / 802.3z / 802.3ab
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports 9k Jumbo Frames
• Supports PXE
• Supports IEEE 802.3af PoE
• Supports IEEE 802.3at PoE+
• Phantom power (Mode A, pairs 1/2 and 3/6)
• Output power: max. 90 W total
• LED indicator for link and activity

Package content:
• PCI Express card
• Driver CD
• User manual

Data sheet:
http://www.delock.de/produkt/88501/pdf.html?sprache=en
