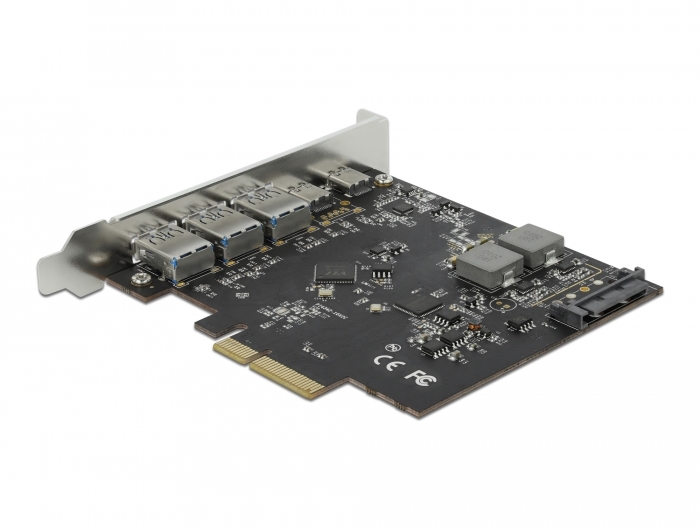

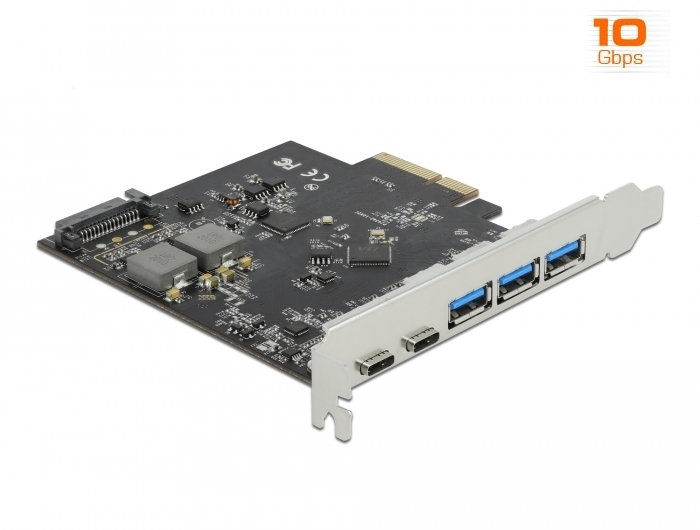

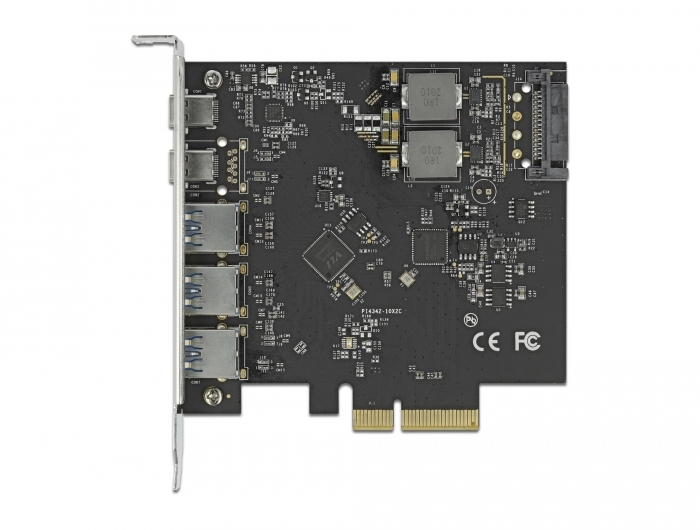

Delock PCI Express x4 Card to 2 x USB Type-C™ + 3 x USB Type-A - SuperSpeed USB 10 Gbps

Reference 89064

Condition: New

More info

This PCI Express card by Delock expands the PC by five external USB 3.2 ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card.

Sufficient ports - 2 x USB Type-C™ and 3 x USB Type-A
The PCIe card offers two USB-C™ port as well as three USB Type-A ports. Thus devices can be connected with 10 Gbps at each port.

System requirements:
• Linux Kernel 3.18.37 or above
• Windows 10/10-64
• Windows Server 2016
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Specification:
• Connectors:
external:
  2 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
  3 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) Type-A female
internal:
  1 x PCI Express x4 (2-Lane), V3.0
  1 x SATA 15 pin power connector
• Chipset: Asmedia ASM3142, VIA VL822
• Data transfer rate up to:
  SuperSpeed USB 10 Gbps,
  SuperSpeed USB 5 Gbps,
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• Downwards compatible to USB 3.0, USB 2.0, USB 1.1
• Power supply via SATA power connector
• Electrical power:
  USB Type-C™: max. 15 watt (5 V / 3 A)
  USB Type-A: max. 4.5 watt (5 V / 0.9 A)
• Bootable
• Supports UASP
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports Multiple INs
• Operating temperature: 5 °C ~ 50 °C
• Storage temperature: -20 °C ~ 60 °C
• Humidity: 20 ~ 80 %

Package content:
• PCI Express card SuperSpeed USB 10 Gbps
• User manual
