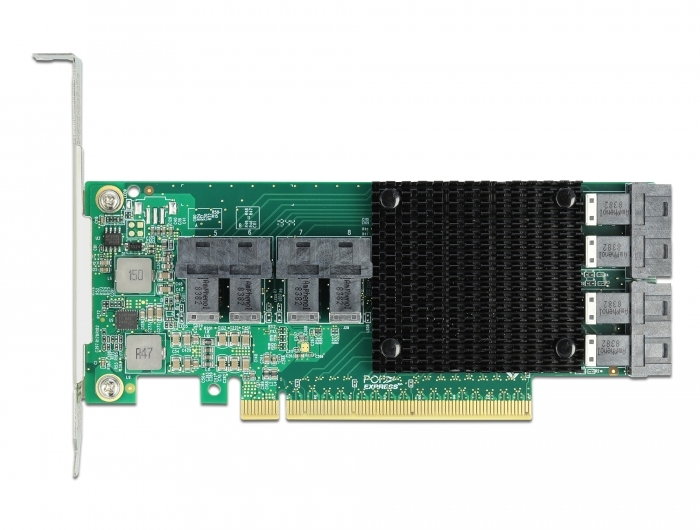

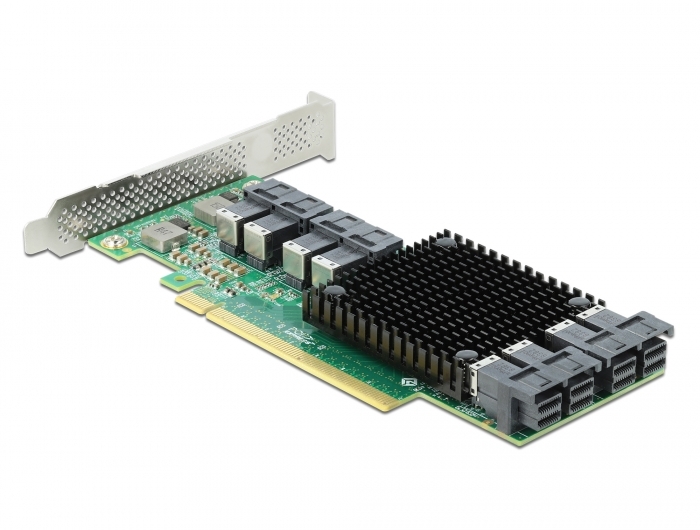

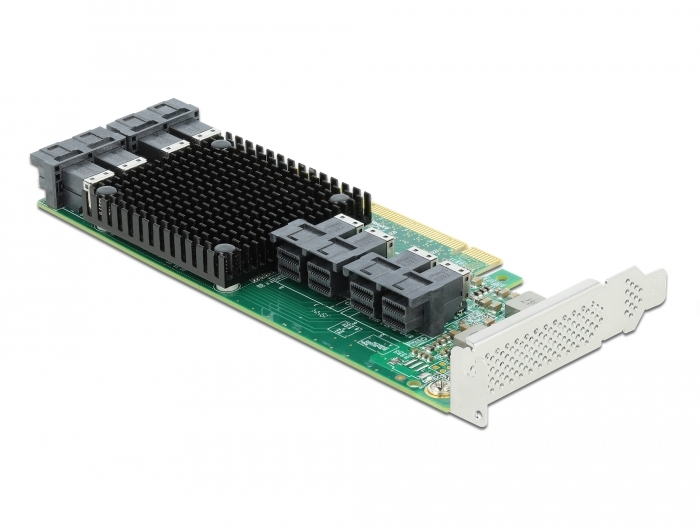

Delock PCI Express x16 Card to 8 x internal SFF-8643 NVMe - Low Profile Form Factor

Reference 90504

Condition: New

More info

This PCI Express card by Delock expands the PC by eight SFF-8643 interfaces. SSDs with e.g. U.2 interface can be connected to these ports by using an optional cable.

System requirements:
• Linux Kernel 3.18.37 or above
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2019
• PC with one free PCI Express x16 / x32 slot

Specification:
• Connectors:
8 x SFF-8643 female
1 x PCI Express x16, V3.0
• Chipset: Broadcom PEX8749
• Data transfer rate up to 32 Gbps
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• 1 x LED indicator
• Humidity: 15 ~ 90 %
• Operating temperature: 5 °C ~ 50 °C
• Storage temperature: -25 °C ~ 70 °C

Package content:
• PCI Express card

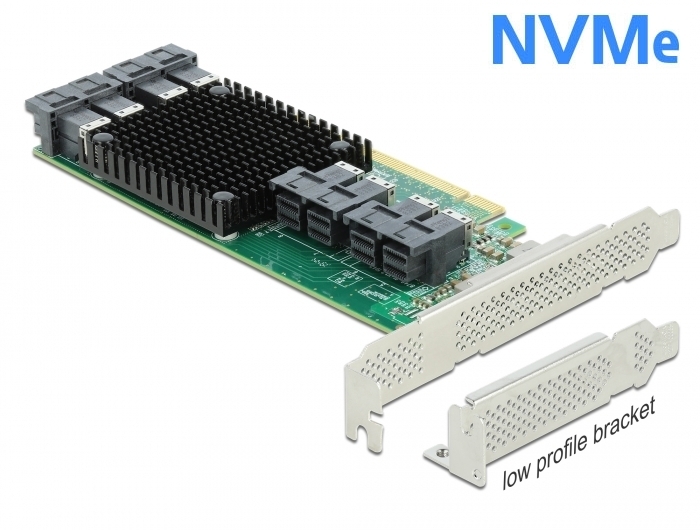

• Low profile bracket
• User manual

Data sheet:
http://www.delock.de/produkt/90504/pdf.html?sprache=en
