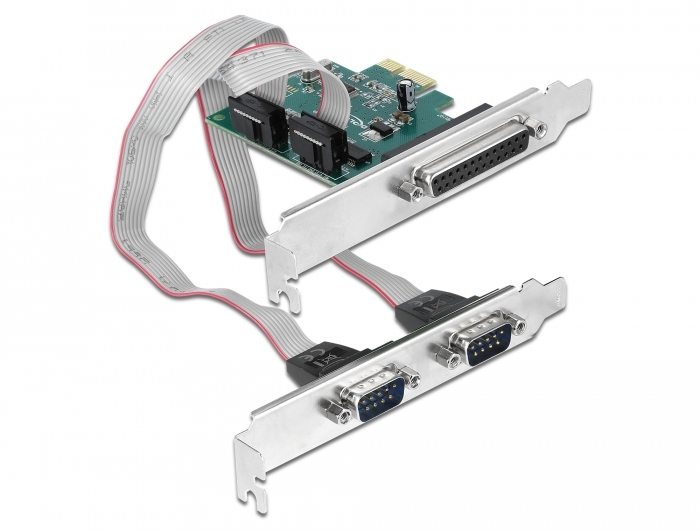

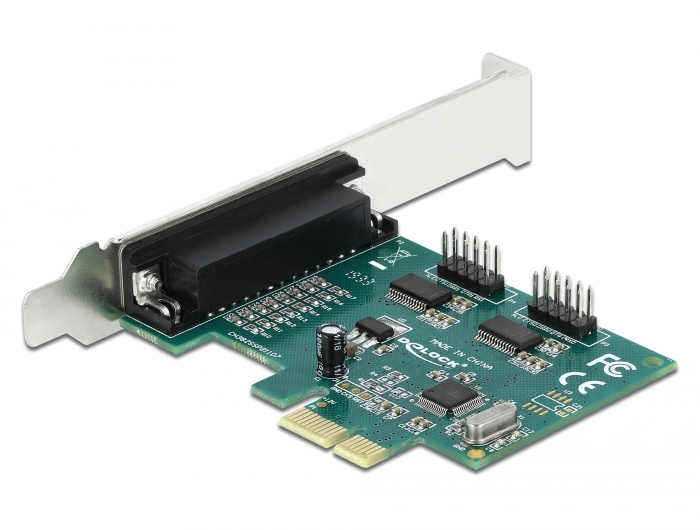

Delock PCI Express Card to 2 x Serial RS-232 + 1 x Parallel IEEE1284

Reference 90413

Condition: New

More info

The PCI Express card by Delock expands a PC by two external serial ports as well as one external parallel port. Different devices such as scanner, printer, mouse etc. can be connected to this card.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot

Specification:
• Connectors:
  external:
  2 x serial RS-232 DB9 male (separate rear bracket)
  1 x Parallel DB25 female
  internal:
  1 x PCI Express x1, V1.1
• Chipset: WCH CH384L
• Operating temperature: -40 °C ~ 85 °C
• Relative humidity: 0 - 95 % (non condensing)
• Dimensions (LxWxH): ca. 79 x 59 x 11 mm
• Serial specification:
• Data transfer rate up to 460.8 Kbps
• FIFO: 256 byte
• Compatible with 16C950 UART
• Parallel specification:
• Data transfer rate up to 1.5 Mbps
• FIFO: 256 byte
• Supports SPP, Byte and ECP mode

Package content:
• PCI Express card
• Slot bracket

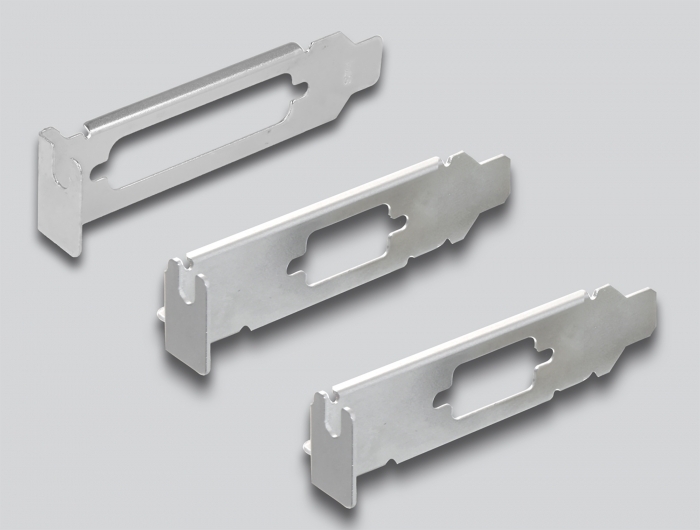

• 3 x low profile bracket
• Driver CD
• User manual
