Delock 2 port SATA PCI Express Card with RAID 1 - mirroring existing data

Reference 90406

Condition: New

More info

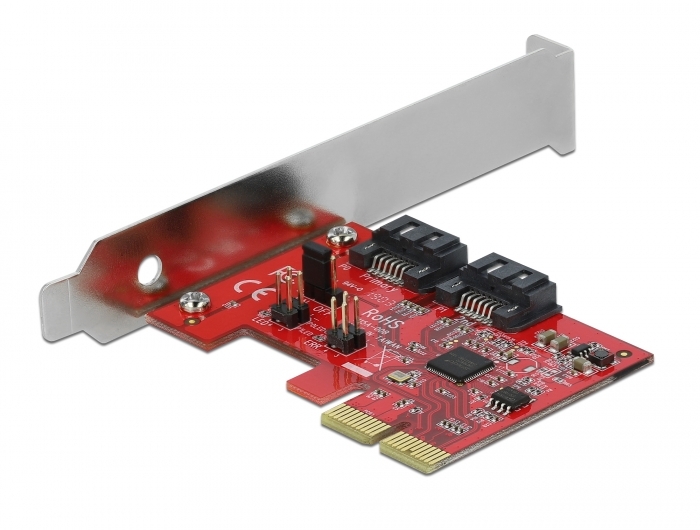

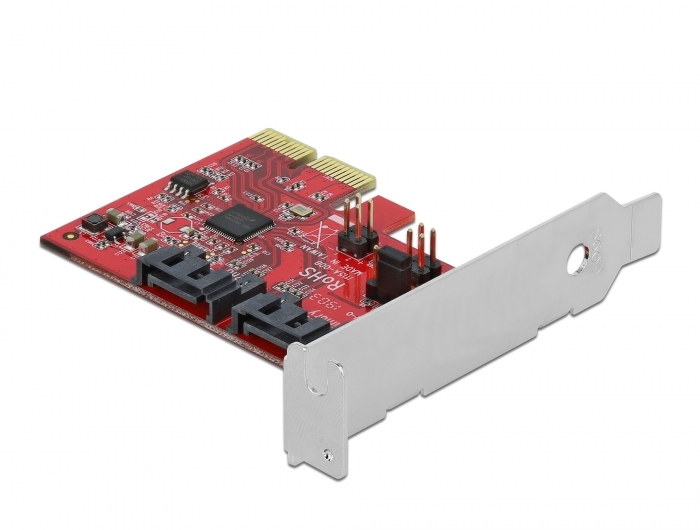

This PCI Express card by Delock expands the PC by two internal SATA ports. Different devices such as SSDs, hard drives, DVD-drives etc. can be connected to the card.

RAID 1
The special feature of this PCIe card is that an SSD / HDD, which already contains data, does not need to be formatted in order to build a RAID 1 group with a second SSD / HDD. The data of the existing SSD / HDD will be mirrored to a new one.

System requirements:
• Linux Kernel 3.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot

Specification:

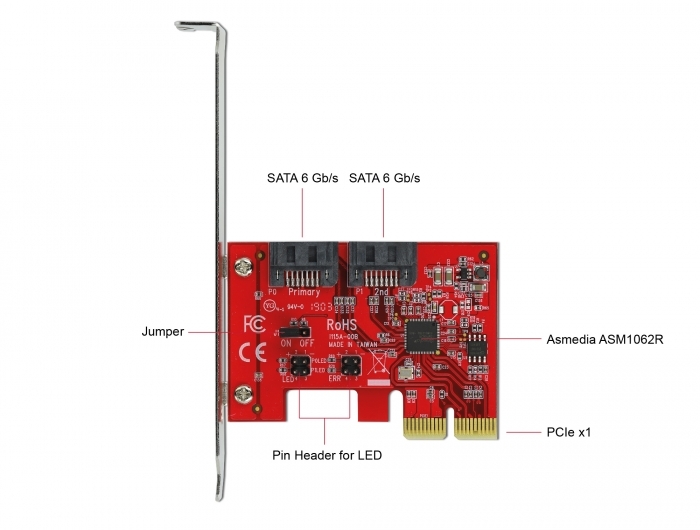

• Connectors:
  2 x SATA 6 Gb/s 7 pin plug
  1 x PCI Express x1, V2.0
  4 x 2 pin pin header for LED
• Chipset: Asmedia ASM1062R
• Supports RAID 1
• Jumper for RAID mode ON / OFF
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Plug

Package content:
• PCI Express card

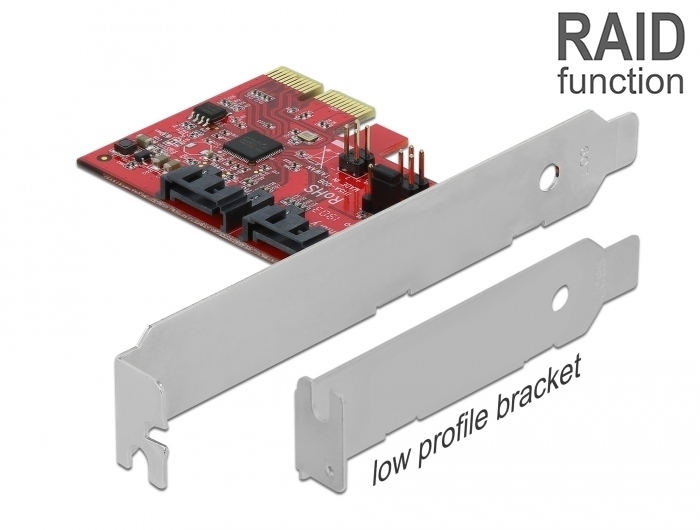

• Low profile bracket
• Driver CD
• User manual
