Delock PCI Express x4 Card to 1 x M.3 / NF1 Slot - Low Profile Form Factor

Reference 90401

Condition: New

More info

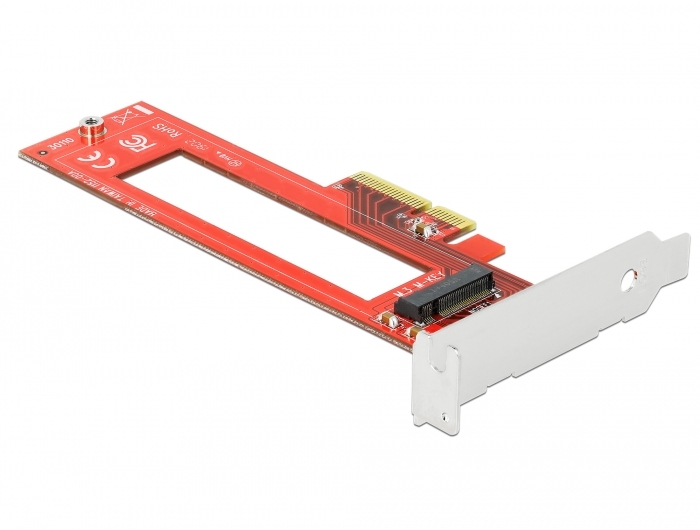

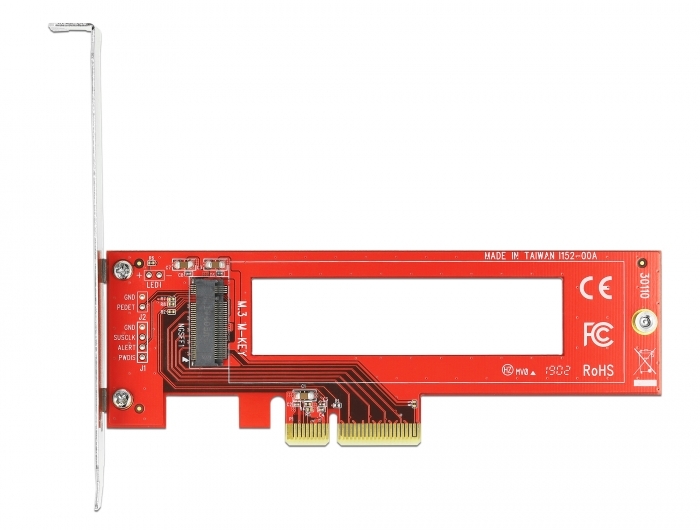

This PCI Express card by Delock expands the PC by one M.3 / NF1 (NGSFF) slot. One M.3 module with 110 mm length and 30 mm width can be connected.

Cooling for the SSD
For better cooling, the PCB of the PCIe card has a recess, which is located directly under the inserted SSD. Thus it is possible that an optional heat sink can be mounted on the bottom of the SSD.

System requirements:
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Specification:
• Connectors:
  internal:
  1 x M.3 / NF1 slot
  1 x PCI Express x4, V3.0
• Interface: PCIe / NVMe
• Supports M.3 / NF1 modules in format 30110
• Supports M.3 / NF1 SSD up to 4.8 mm thickness
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• OS independent, no driver installation necessary

Package content:
• PCI Express card

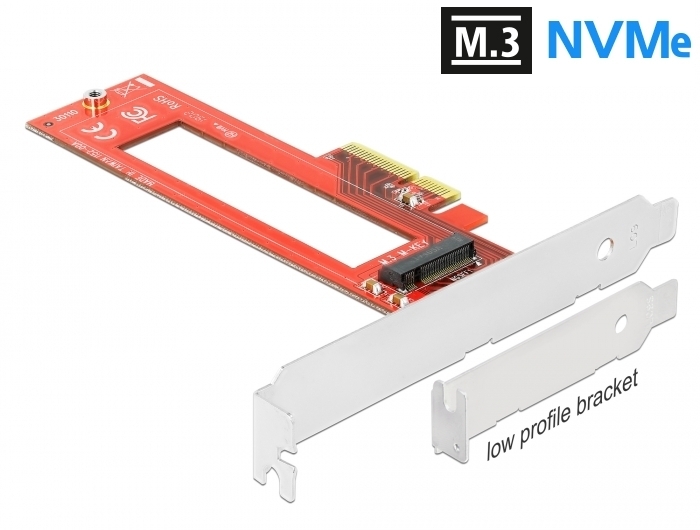

• Low profile bracket

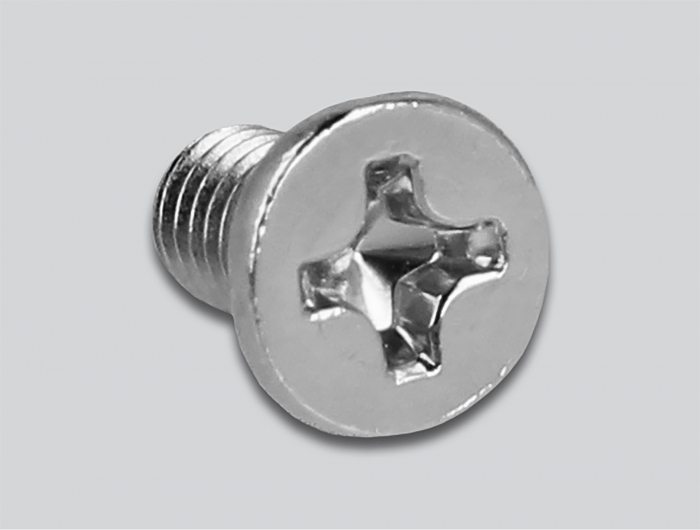

• 1 x fixing screw
• User manual
