Delock 2 port SATA PCI Express Card with RAID

Reference 90392

Condition: New

More info

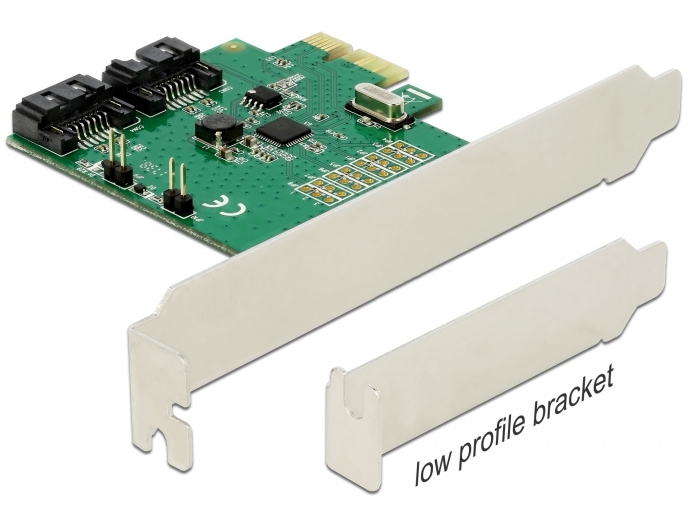

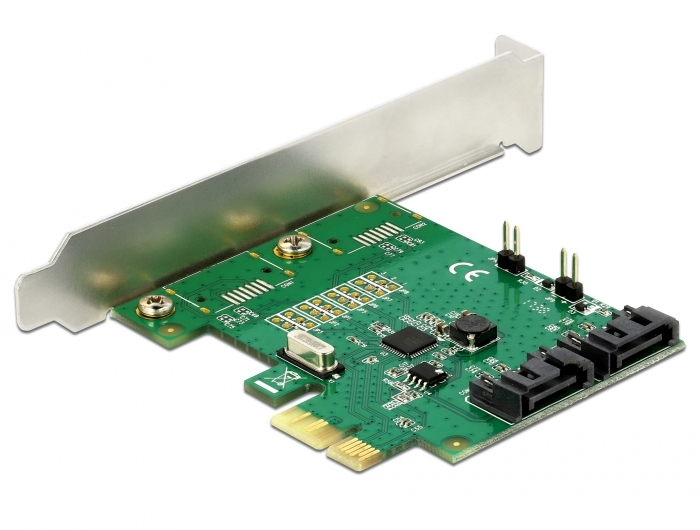

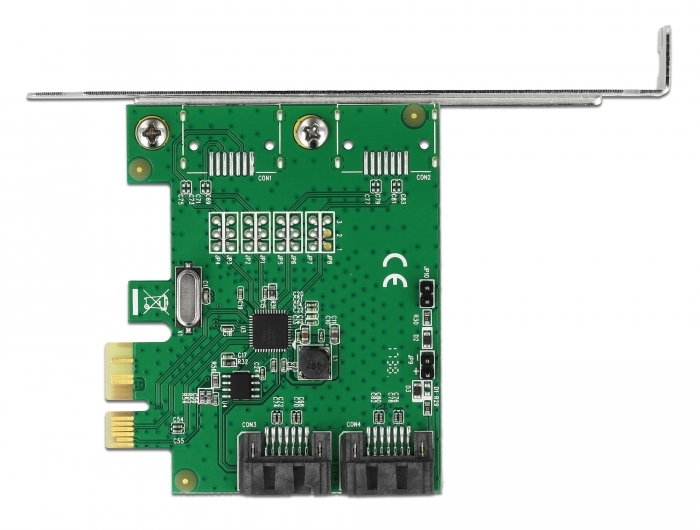

This PCI Express card by Delock expands the PC by two internal SATA ports. Different devices such as SSDs, hard drives, DVD-drives etc. can be connected to the card.

RAID
When using more than one SATA port, there is the possibility to use different RAID modes.

System requirements:
• Linux Kernel 3.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot

Specification:

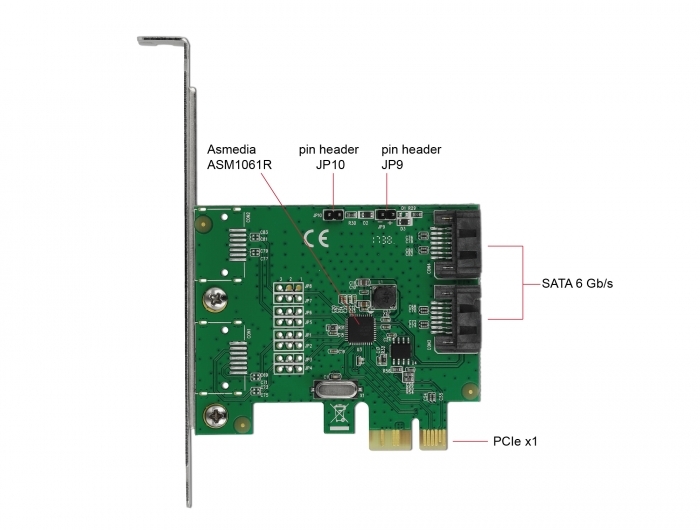

• Connectors:
  2 x SATA 6 Gb/s 7 pin plug
  1 x PCI Express x1, V2.0
  2 x 2 pin pin header for LED
• Chipset: Asmedia ASM1061R
• Supports RAID 0, 1, SPAN
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Swap
• Bootable

Package content:
• PCI Express card
• Low profile bracket

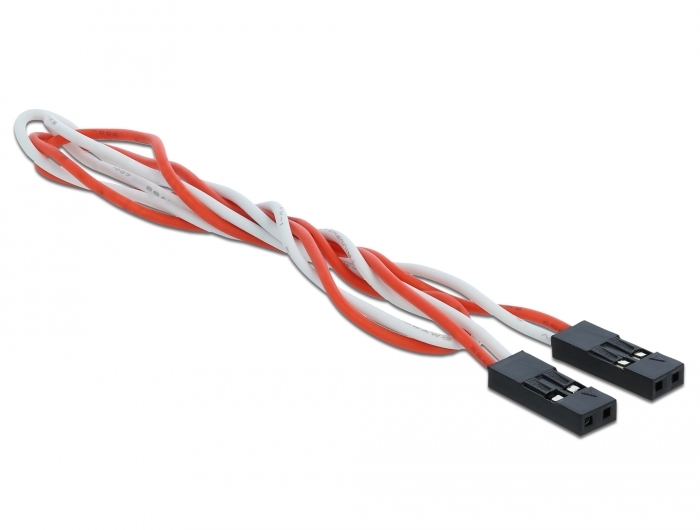

• LED cable
• Driver CD
• User manual

Data sheet:
http://www.delock.de/produkt/90392/pdf.html?sprache=en
