Delock PCI Express x1 Card for 2 x SATA HDD / SSD

Reference 90348

Condition: New

More info

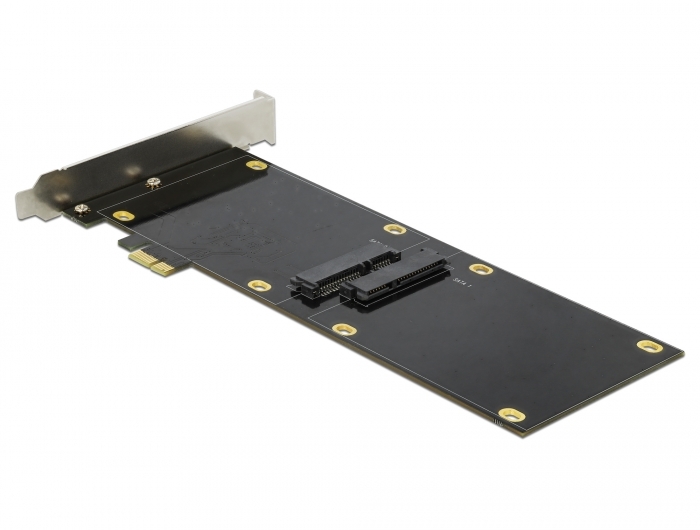

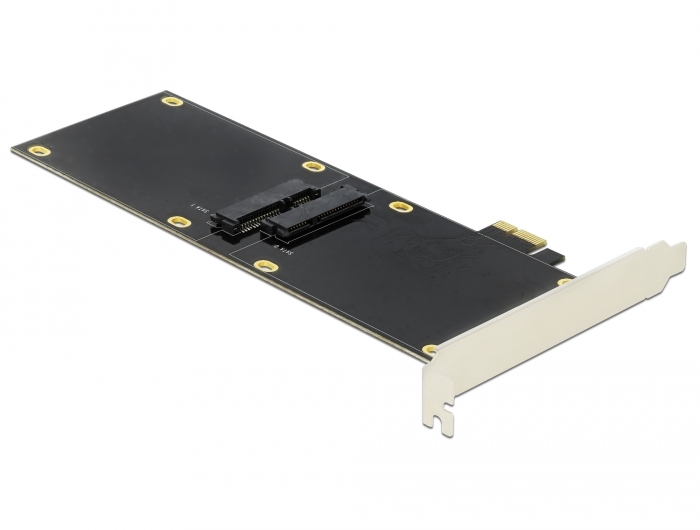

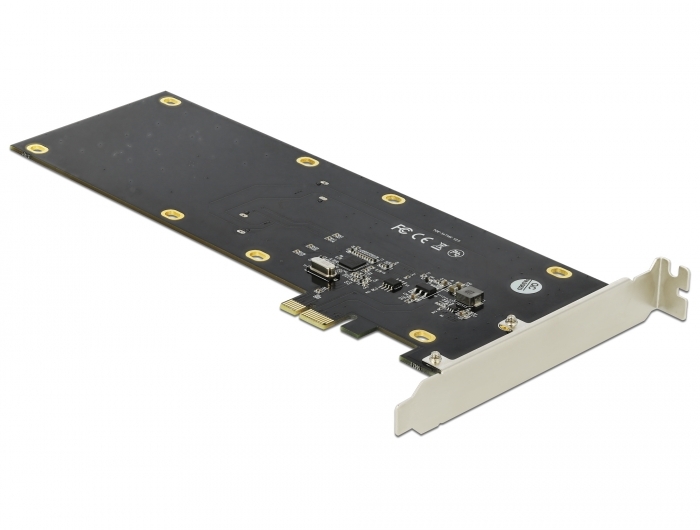

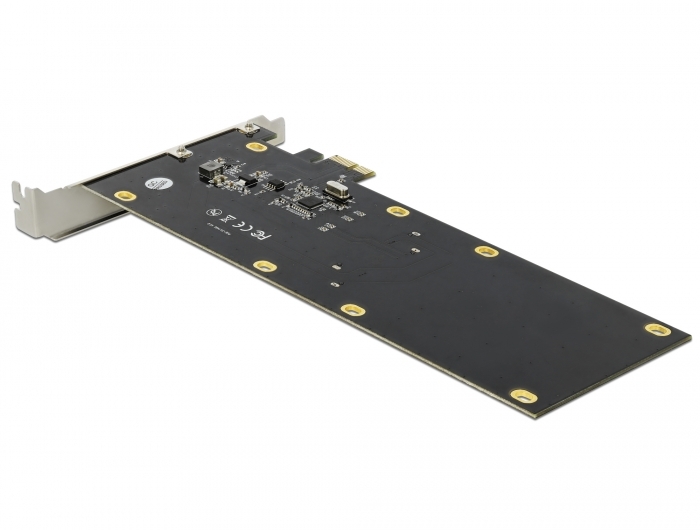

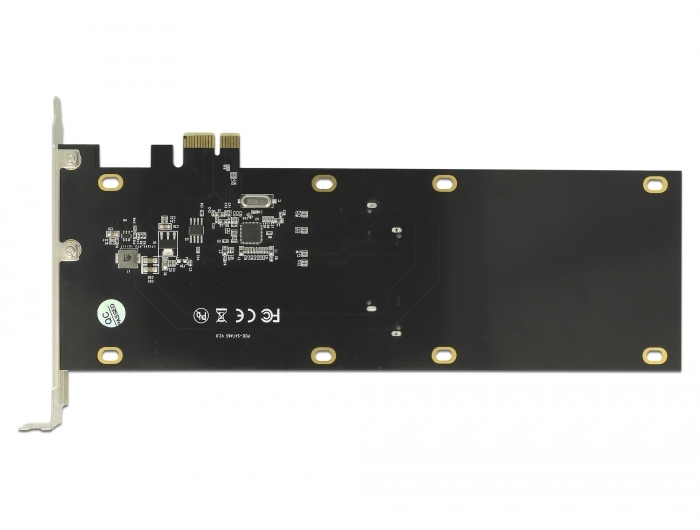

This PCI Express card by Delock expands the PC by two SATA 22 pin ports. Up to two 2.5″ SSD / HDD can be connected to this card. The SSDs / HDDs are mounted single-sided, one after the other on the PCIe card.

System requirements:
• Linux Kernel 4.9.4 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot

Specification:
• Connectors:
  internal:
    1 x PCI Express x1, V2.0
    2 x SATA 22 pin receptacle
• Chipset: Asmedia ASM1061
• Suitable for 2.5″ SATA HDD / SSD:
  SATA HDD / SSD up to 6 Gb/s
  supports 5 V HDD / SSD
• Bootable
• Supports Native Command Queuing (NCQ)
• Dimensions (LxWxH): ca. 227 x 120 x 20 mm

Package content:
• PCI Express card
• 8 x fixing screw
• Driver CD
• User manual

Data sheet:
http://www.delock.de/produkt/90348/pdf.html?sprache=en
