Delock PCI Express x16 (x4 / x8) Card to 1 x NVMe M.2 Key M for Server

Reference 90303

Condition: New

More info

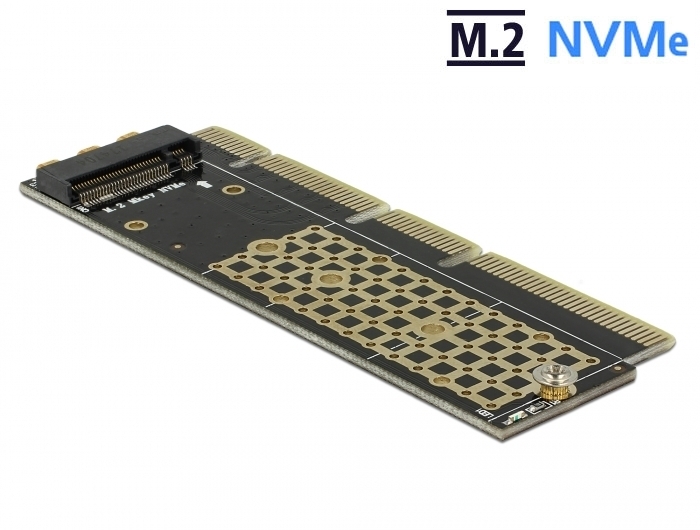

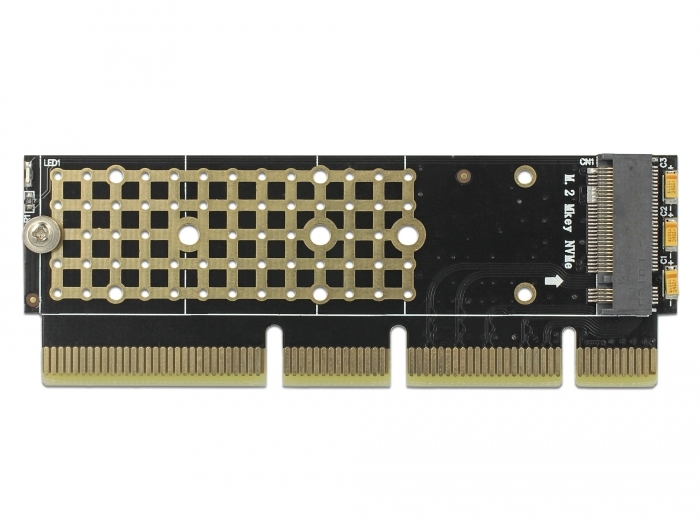

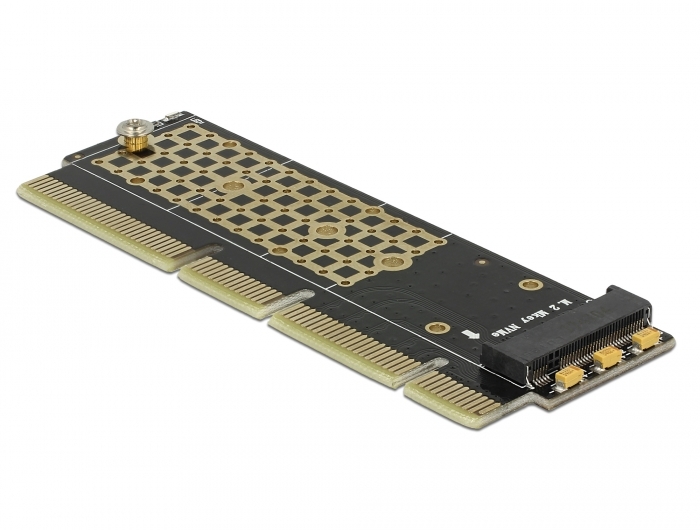

This PCI Express card by Delock expands the PC by one M.2 slot. One M.2 module in 2280, 2260, 2242 or 2230 format can be connected. The card can be operated through the notches on an x4, x8 or x16 slot. If the card will be installed in the PC, the slot bracket does not have to be removed. Due to the small height, the card can also fit into for servers with one unit height (1U).

System requirements:
• Linux Kernel 3.17 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Specification:
• Connectors:
1 x 67 pin M.2 key M slot
1 x PCI Express x16, V3.0
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230
with key M or key B+M based on PCIe
• Bootable, ex UEFI version 2.3.1
• Supports NVM Express (NVMe)
• 1 x LED indicator
• Holes in the PCB for cooling the SSD
• Dimensions (LxWxH) without PCIe connector: ca. 90 x 24 x 5 mm

Package content:
• PCI Express card

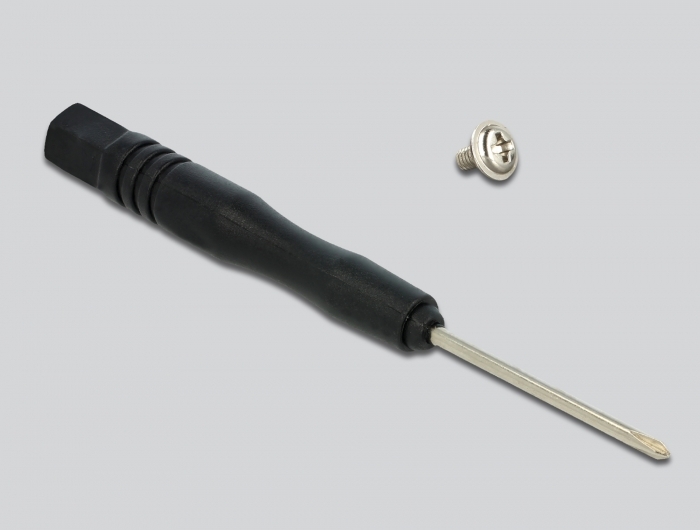

• 1 x fixing screw for M.2 module
• Screwdriver
• User manual
