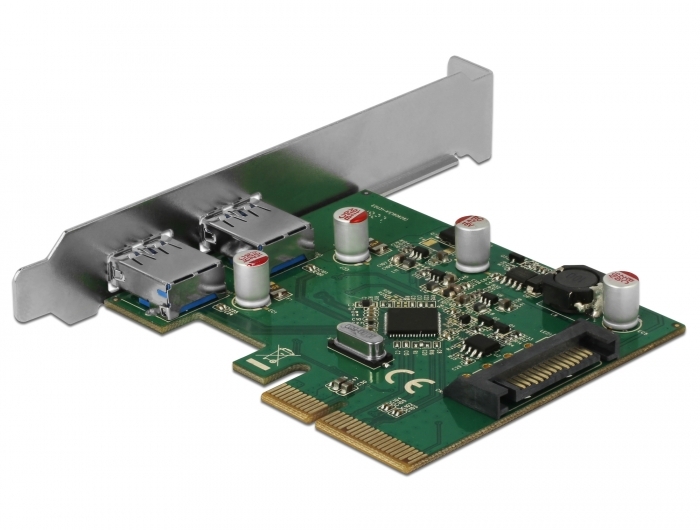

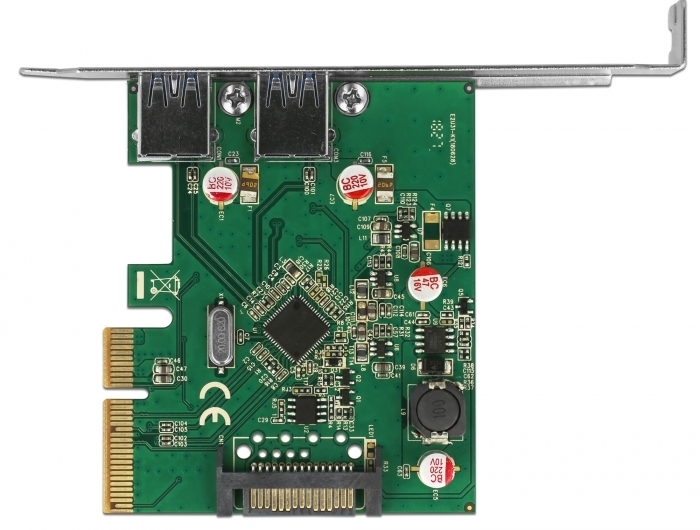

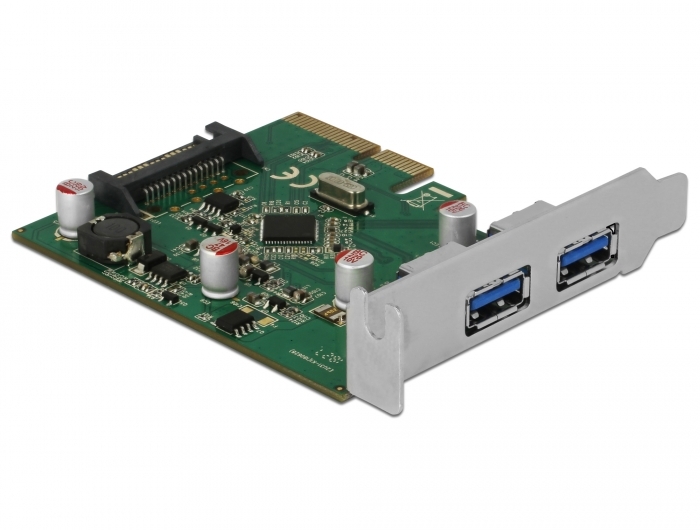

Delock PCI Express x4 Card to 2 x external USB 3.1 Gen 2 Type-A female

DELOCK

90298

New

This PCI Express card by Delock expands the PC by two external USB 3.1 ports. Different USB Type-A devices, such as docking stations, card readers, external enclosure etc., can be connected to the card. The card allows a data transfer rate of 10 Gbps on both ports when used simultaneously.
System requirements:
• Linux Kernel 4.6 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Specification:
• Connectors:
  external:
  2 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type-A female
  internal:
  1 x SATA 15 pin power connector
  1 x PCI Express x4, V3.0
• Chipset: Asmedia ASM3142
• Data transfer rate up to:
  SuperSpeed USB 10 Gbps,
  SuperSpeed USB 5 Gbps,
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• Power supply via PCI Express interface or via SATA 15 pin power connector
• Electrical power per port: max. 4.5 watt (5 V / 900 mA)
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports UASP
• Supports Multiple INs
Package content:
• PCI Express card SuperSpeed USB 10 Gbps

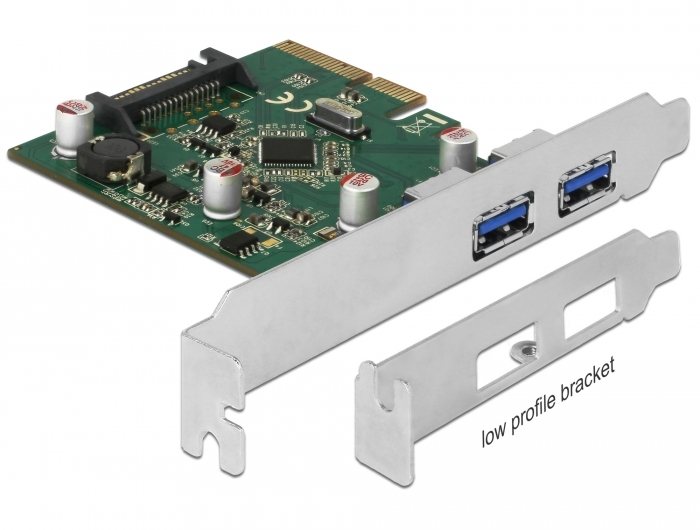

• Low profile bracket
• Driver CD
• User manual
Data sheet:
http://www.delock.de/produkt/90298/pdf.html?sprache=en
