Delock PCI Express x8 Card to 8 x external USB Type-C™

Reference 90308

Condition: New

More info

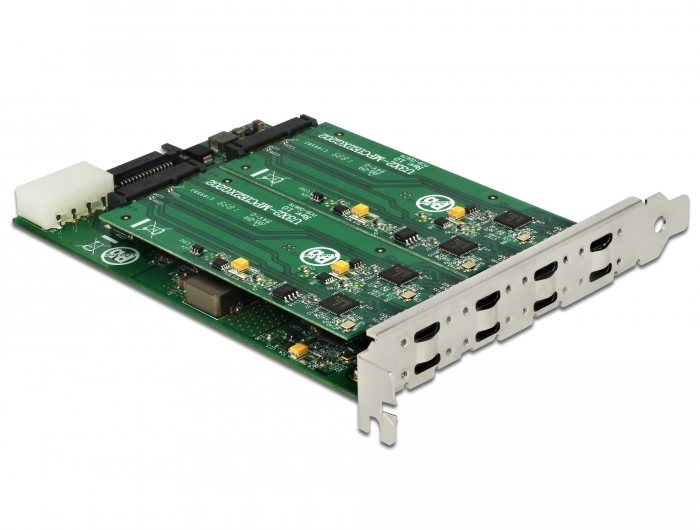

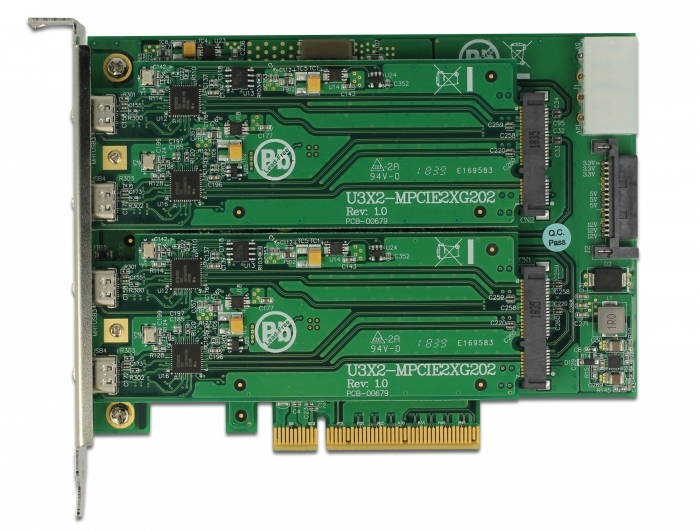

This PCI Express card by Delock expands the PC by eight external USB-C™ ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card. The card has eight USB host controller chipsets that independently control each USB-C™ port.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x8 / x16 / x32 slot

Specification:
• IOI item number: U3X8-PCIE8XE104
• Connectors:
external:
8 x SuperSpeed USB (USB 3.1 Gen 1) USB Type-C™ female
internal:
1 x PCI Express x8, V2.0
1 x SATA 15 pin power connector
1 x 4 pin power connector
• Chipset: Renesas uPD720202
• Data transfer rate up to:
SuperSpeed 5 Gb/s,
Hi-Speed 480 Mb/s,
Full-Speed 12 Mb/s,
Low-Speed 1.5 Mb/s
• Electrical power per port: max. 7.5 watt (5 V / 1.5 A)
• Supports xHCI specifications V1.0
• Supports UASP
• USB ports with screw holes (M2 x 0.4)

Package content:
• PCI Express card USB

Data sheet:
http://www.delock.de/produkt/90308/pdf.html?sprache=en
