Delock PCI Express Card to 1 x Serial RS-232

Reference 89948

Condition: New

More info

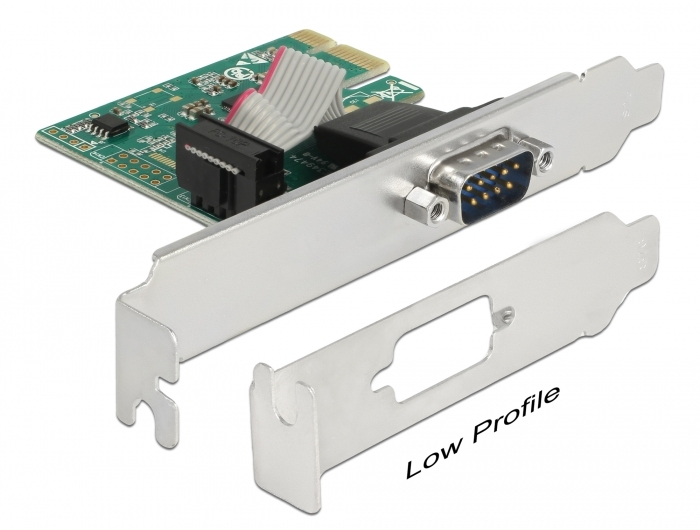

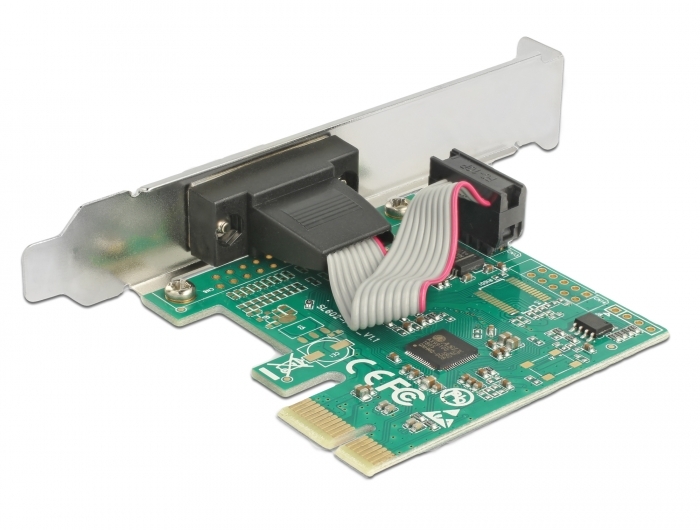

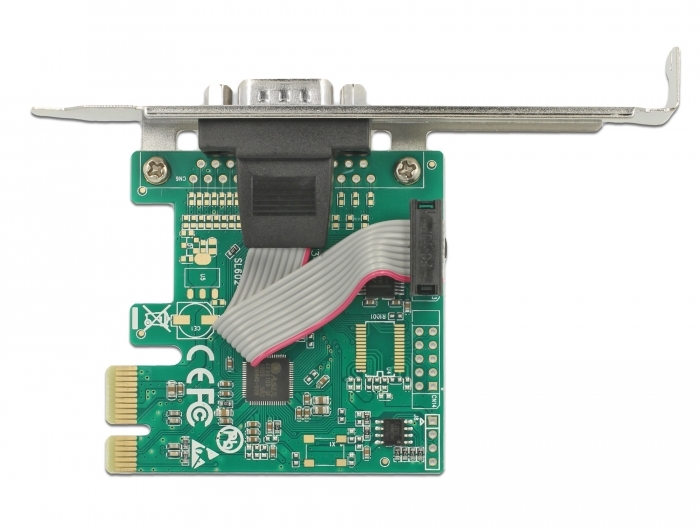

The PCI Express card by Delock expands a PC by one external serial RS-232 port. Devices such as scanners, protocol converters, POS systems, infrared -, IoT - devices etc. and different modes can be used. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot

Specification:
• Connectors:
  1 x serial RS-232 DB9 male
  1 x PCI Express x1, V2.0
• Chipset: ASIX AX99100
• Compatible with 16C950 UART
• Supports Active State Power Management (ASPM)
• Supports Direct Memory Access (DMA)
• Modes
  Supports slow IrDA mode up to 115 Kbps
  Supports Multi-Drop 9-bit mode
• Data transfer rate up to 230.4 Kb/s
• FIFO: 256 byte
• Databits: 5, 6, 7, 8, 9
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Operating temperature: 0 °C ~ 55 °C
• Relative humidity: 10 - 90 %
• Dimensions (LxWxH): ca. 64 x 60 x 16 mm

Package content:
• PCI Express card
• 1 x low profile bracket
• Driver CD
• User manual
