Delock PCI Express x4 Card to 1 x NVMe M.2 Key M for Server

Reference 89929

Condition: New

More info

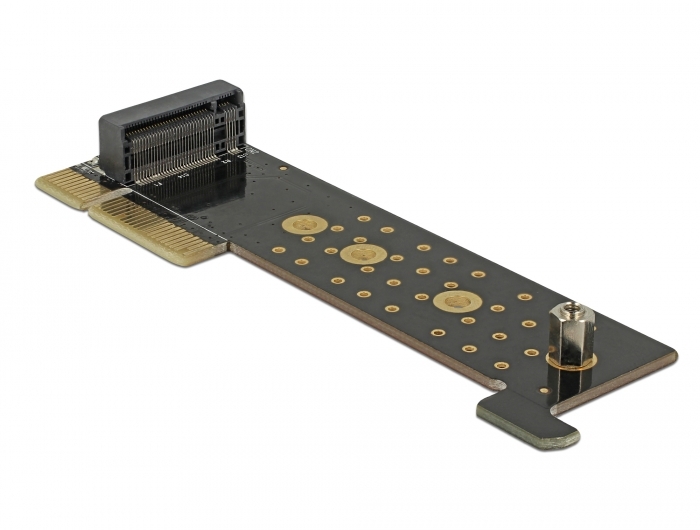

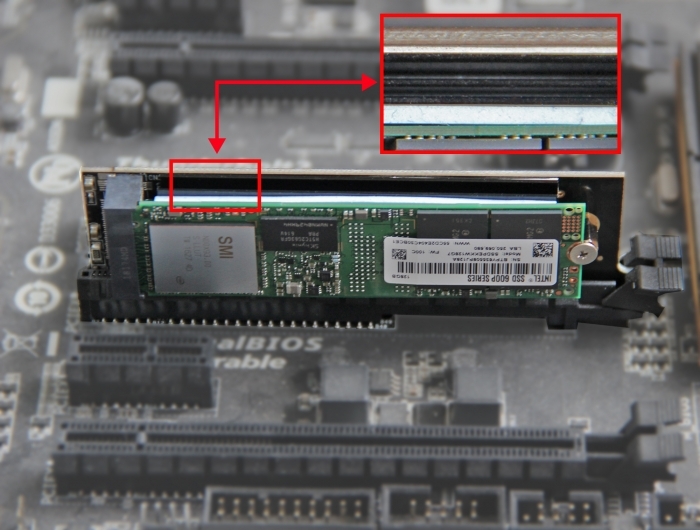

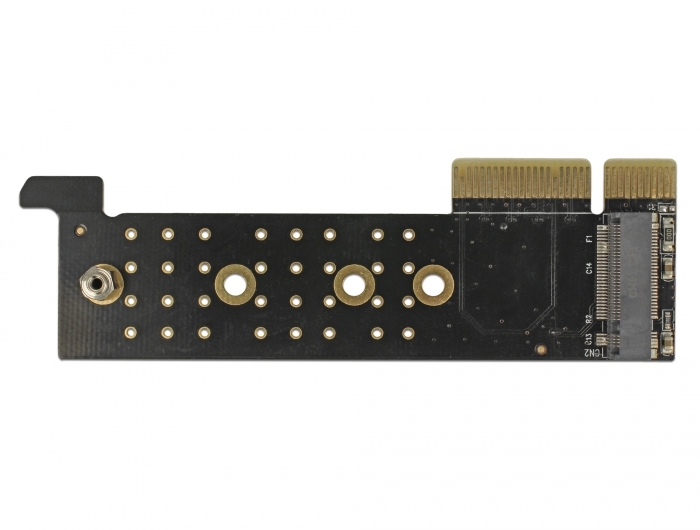

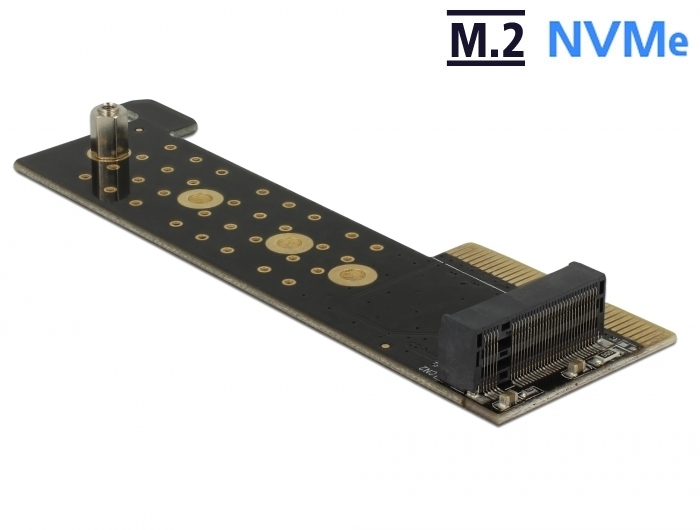

This PCI Express card by Delock expands the PC by one M.2 slot. One M.2 module in 2280, 2260, 2242 or 2230 format can be connected. If the card will be installed in the PC, the slot bracket does not have to be removed. Due to the small height, the card can also fit into for servers with one unit height (1U).

System requirements:
• Linux Kernel 3.19 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Specification:
• Connectors:
1 x 67 pin M.2 key M slot
1 x PCI Express x4
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M
or key B+M based on PCIe
• Bootable
• Supports NVM Express (NVMe)
• Holder for lock on PCI Express x16 slots
• Dimensions (LxWxH) without PCIe connector and lock holder: ca. 94 x 22 x 12 mm

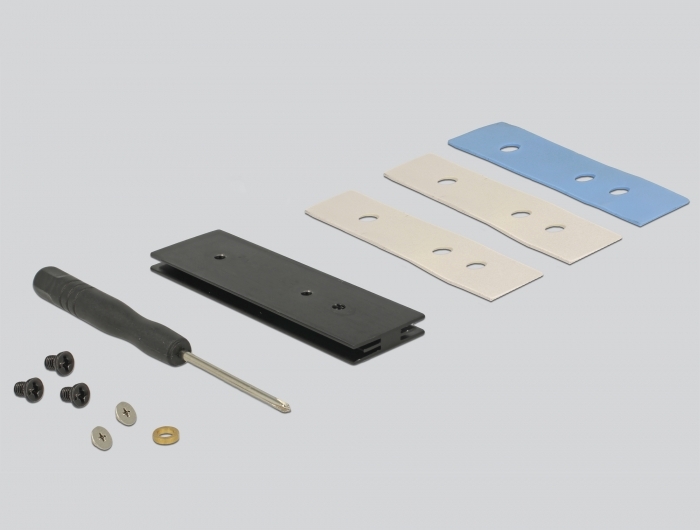

Package content:
• PCI Express card
• 1 x Heat sink
• 2 x fixing screw for M.2 module
• 3 x self-adhesive thermal pad
• Screwdriver
• User manual
