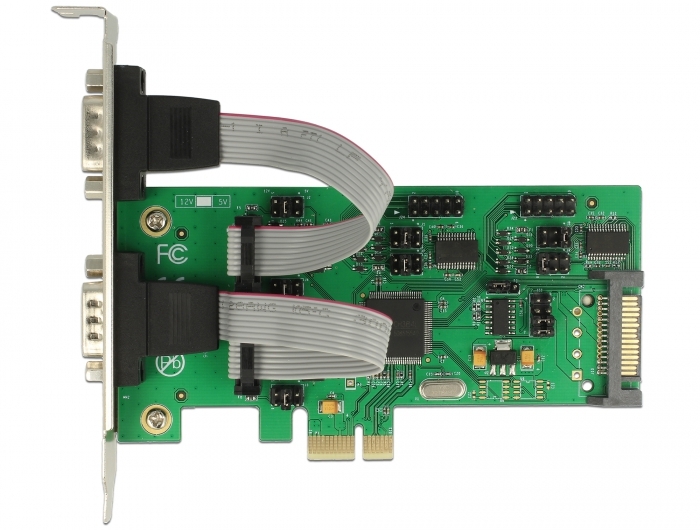

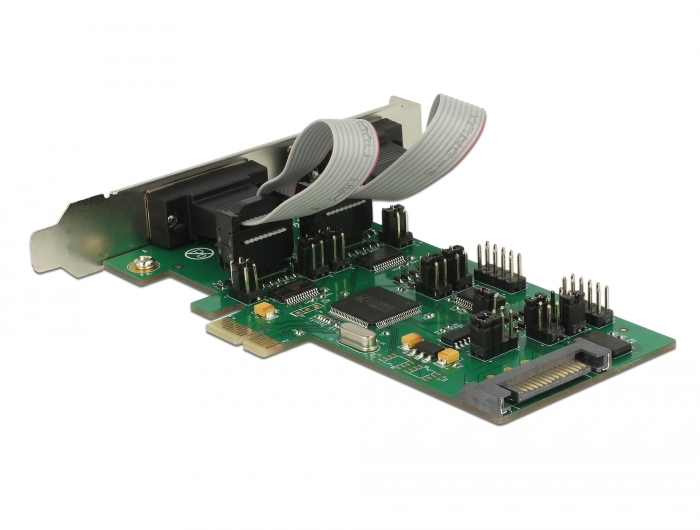

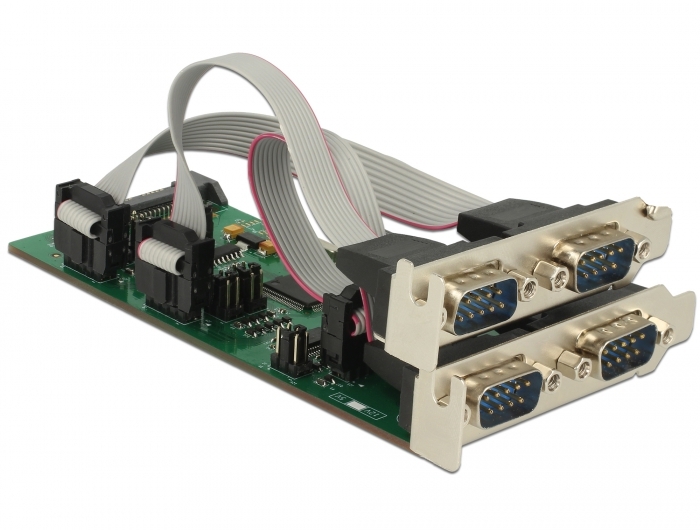

Delock PCI Express Card with 3 Serial RS-232 + 1 TTL 3.3 V / RS-232 with voltage supply

Reference 62922

Condition: New

More info

The PCI Express card by Delock expands a PC by three external RS-232 ports ad well as one TTL 3.3 V / RS-232 port. Different devices such as gateways, plotters, printers, line extender, dongles or embedded modules, field programmable gate arrays (FPGA), controllers etc. can be connected to this card. Connected devices can be optionally supplied with a voltage of 5 V or 12 V. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot and one rear slot
• Power supply with free SATA power connectors

Specification:
• Connectors:
  external:
  3 x serial RS-232 DB9 male

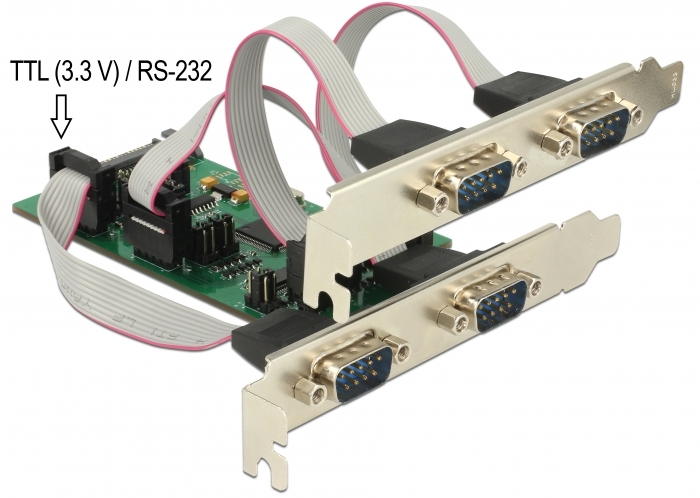

  1 x serial TTL 3.3 V / RS-232 DB9 male
  internal:
  1 x PCI Express x1, V1.1
  1 x SATA power connector
• Chipset: WCH384L

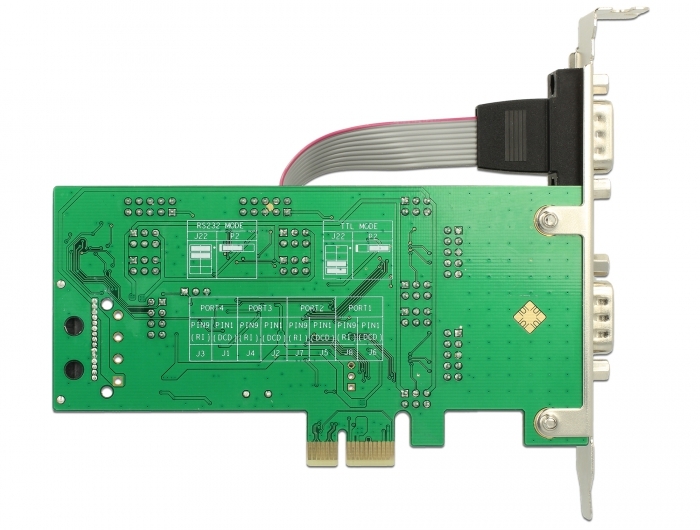

• 5 V or 12 V can be set individually for each port through the jumper (pin 1 or 9)
• Signals: DCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
• Data transfer rate:
  RS-232 up to 230 Kbps
  TTL up to 921 Kbps
• FIFO: 128 byte
• Flow control: none, Xon / Xoff, RTS / CTS
• Stop bits: 1, 1.5, 2
• Databits: 4, 5, 6, 7, 8
• Parity: even, odd, none, mark, space
• Compatible with 16C950 UART
• Dimensions (LxWxH): ca. 125 x 66 x 22 mm

Package content:
• PCI Express card
• 2 x low profile bracket
• 11 x jumper
• Driver CD
• User manual
