Delock PCI Express Card > 2 x Serial RS-232 high speed 921K with voltage supply

Reference 89641

Condition: New

More info

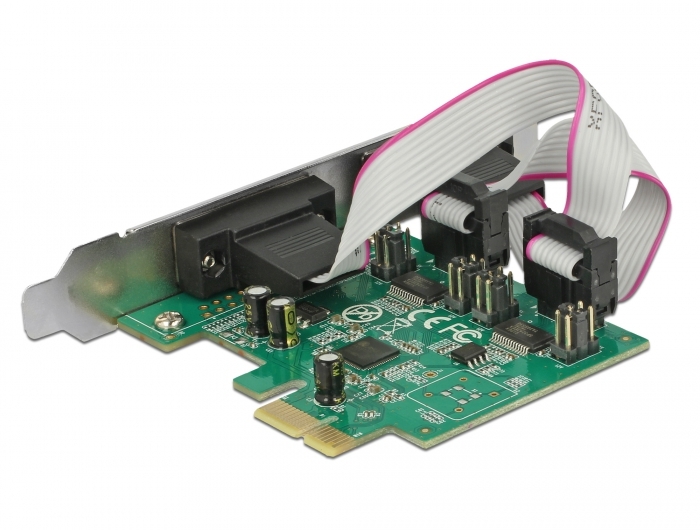

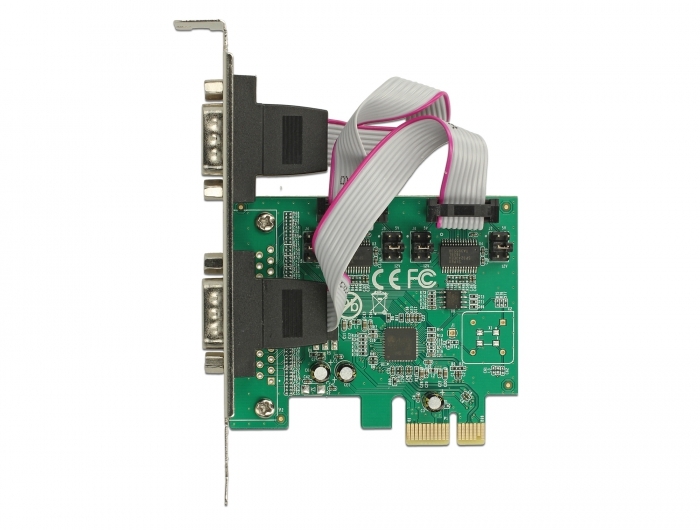

The PCI Express card by Delock expands a PC by two external serial RS-232 ports. Devices such as scanners, protocol converters, POS systems, infrared -, IoT - devices etc. and different modes can be used. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot

Specification:
• Connectors:
  external: 2 x serial RS-232 DB9 male
  internal: 1 x PCI Express x1, V2.0
• Chipset: ASIX AX99100
• Compatible with 16C950 UART

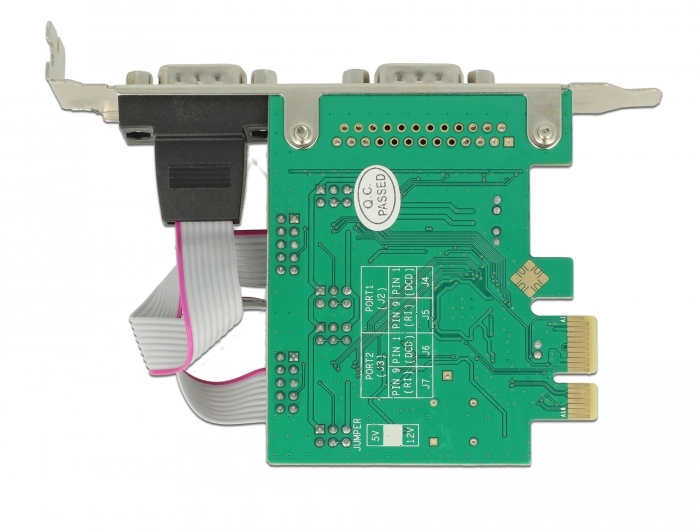

• Selectable voltage supply: pin 1 / 9, maximum output power 23 W, 5 V (max. 1 A)
and 12 V (max. 1.5 A)
• Supports Active State Power Management (ASPM)
• Supports Direct Memory Access (DMA)
• Modes
  Supports slow IrDA mode up to 115 Kbps
  Supports Multi-Drop 9-bit mode
• Data transfer rate up to 1 Mbps
• Buffer: 256 byte on each port
• Databits: 5, 6, 7, 8, 9
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Operating temperature: 0 °C ~ 70 °C
• Dimensions (LxWxH): ca. 72 x 63 x 10 mm

Package content:
• PCI Express card

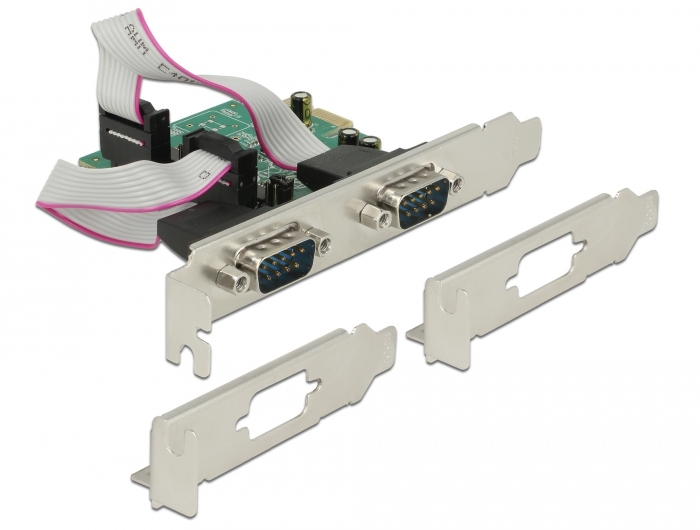

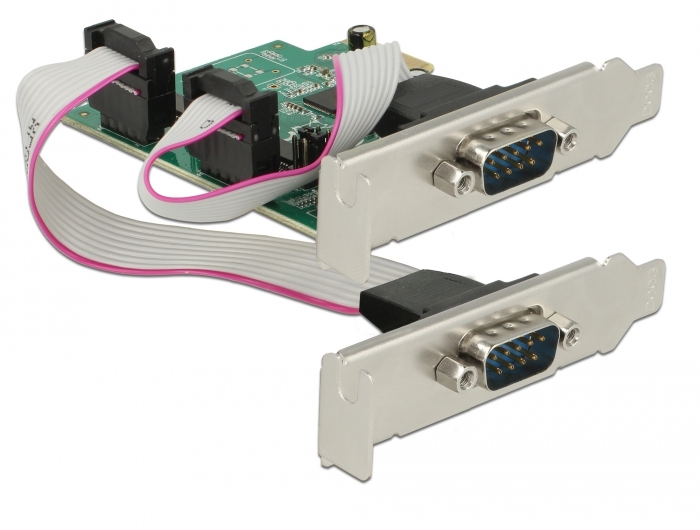

• 2 x low profile bracket
• Driver CD
• User manual
