Delock PCI Express x16 Card > 4 x internal NVMe M.2 Key M - Bifurcation

Reference 89835

Condition: New

More info

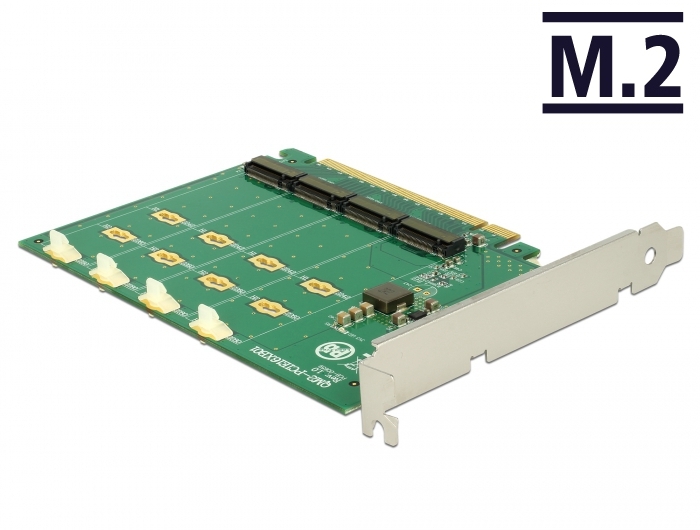

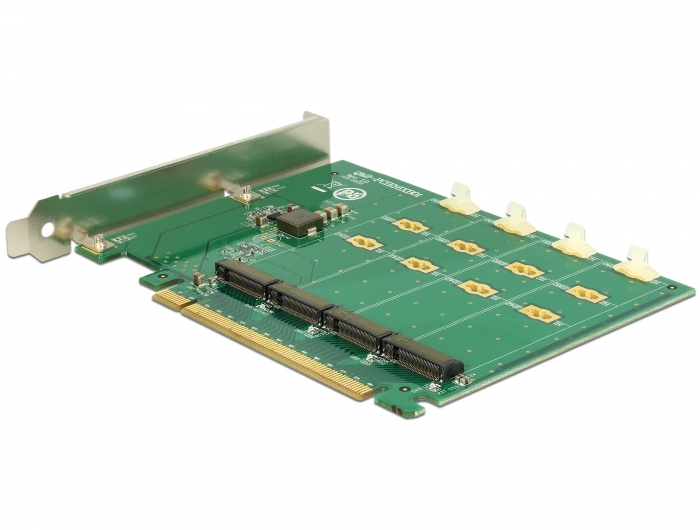

This PCI Express card by Delock expands a PC by four M.2 slots. M.2 SSDs in format 2280, 2260, 2242 and 2230 can be connected. The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple slots with M.2 SSDs.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 3.17 / Kernel 4.10
• PC with one free PCI Express x16 / x32 slot

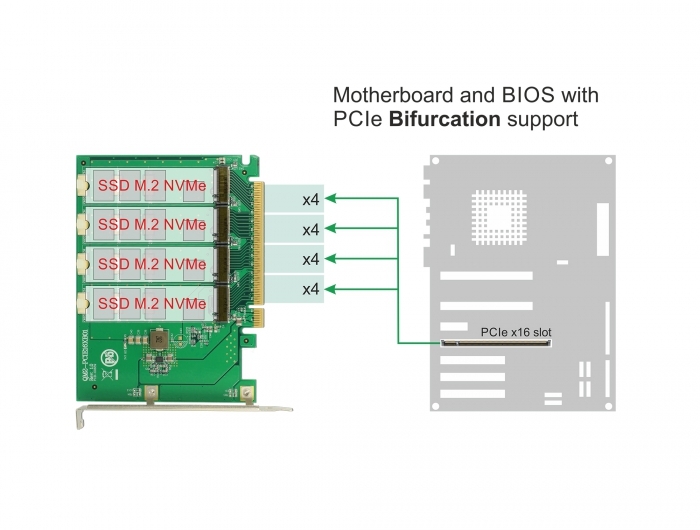

• Motherboard and BIOS with PCIe bifurcation support

Specification:

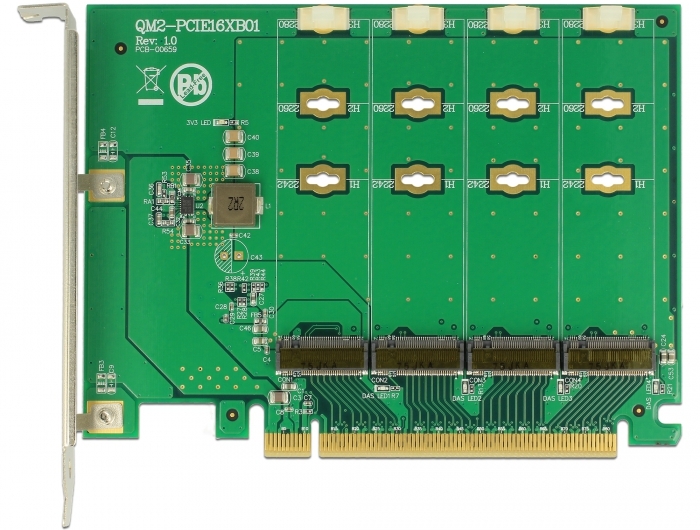

• IOI part number: QM2-PCIE16XB01
• Connectors:
internal:
4 x 67 pin M.2 key M slot
1 x PCI Express x16, V3.0
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• 4 x LED indicator

Package content:
• PCI Express card

Data sheet:
http://www.delock.de/produkt/89835/pdf.html?sprache=en
