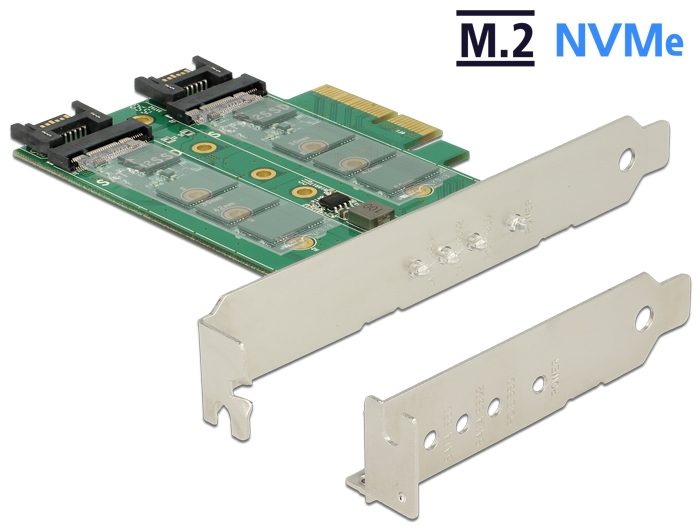

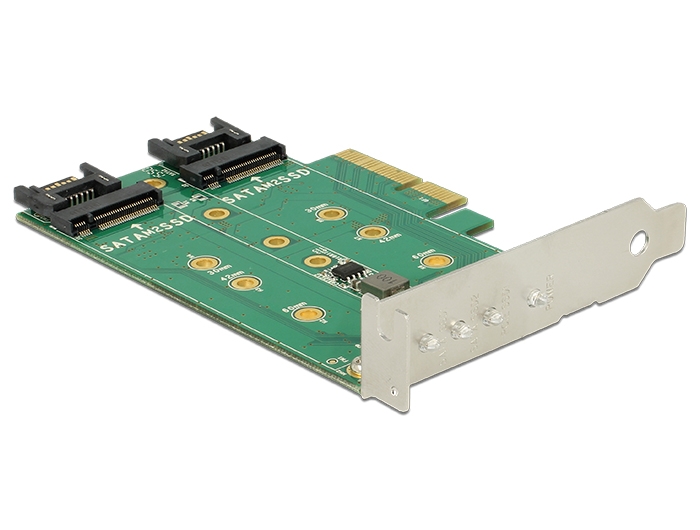

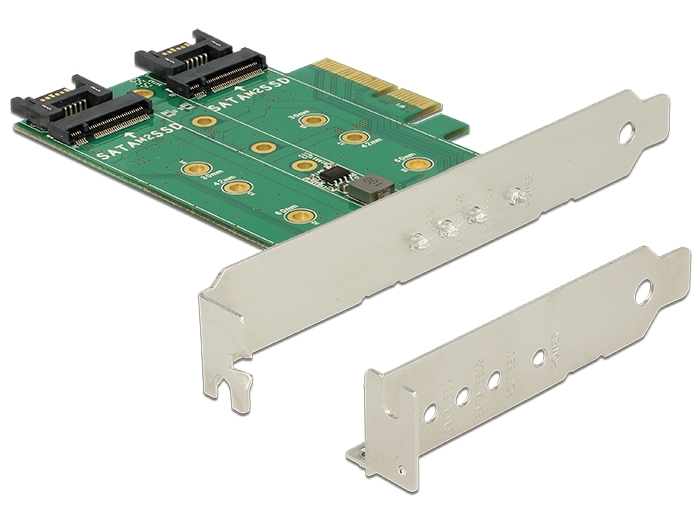

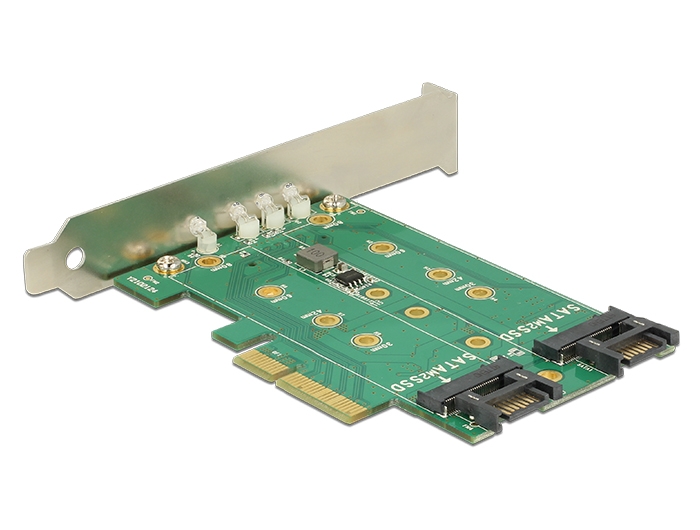

Delock PCI Express Card > 3 x M.2 Slot – Low Profile Form Factor

Reference 89518

Condition: New

More info

This PCI Express card by Delock expands the PC by three M.2 slots. On the card can be connected up to two M.2 SATA modules in format 2280, 2260, 2242, 2230 and one M.2 PCIe module in format 2280, 2260, 2242, 2230. The SATA modules will be connected via SATA cables to the motherboard.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux Kernel 3.3
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
• One free SATA 7 pin interface for each connected M.2 module based on SATA

Specification:
• Connectors:
internal:
2 x 67 pin M.2 key B slot
1 x 67 pin M.2 key M slot
1 x PCI Express x4, V3.0
2 x SATA 7 pin plug
• Interface: SATA + PCIe
• Supports
two M.2 modules in format: 2280, 2260, 2242 and 2230 with key B or
key B+M based on SATA and
one M.2 module in format: 2280, 2260, 2242 and 2230 with key M or
key B+M based on PCIe
• Maximum height of the components on the module: 1.35 mm
application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• 4 x LED indicator
• Power supply via PCI Express

Package content:
• PCI Express card
• Low profile bracket
• 3 x fixing screw
• User manual
