Delock PCI Express x4 Karte > 1 x intern NVMe M.2 Key M 110 mm mit Kühlkörper - Low Profile Form Faktor

Reference 89577

Condition: New

More info

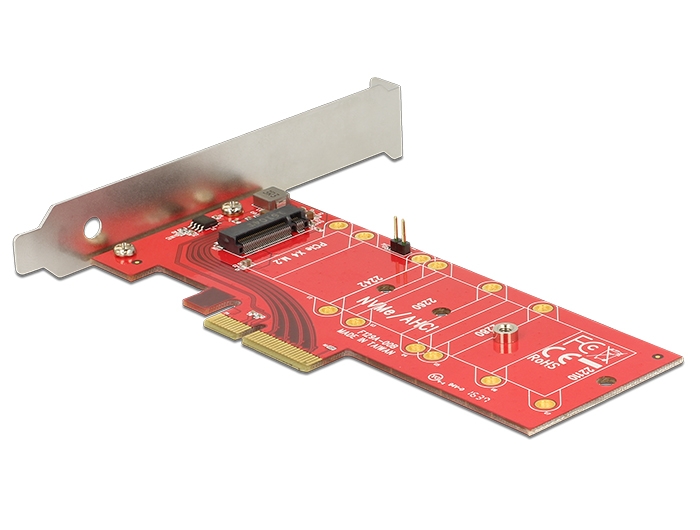

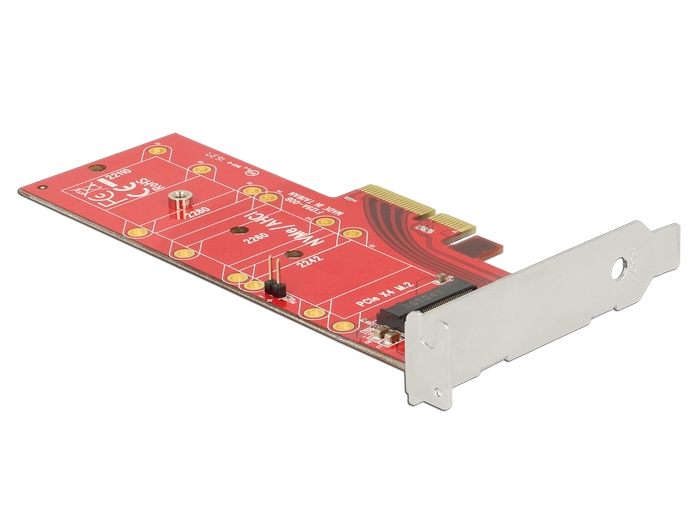

This PCI Express card by Delock expands the PC by one M.2 slot. An M.2 SSD in format 22110, 2280, 2260 and 2242 can be connected. By the heat sink, which can be positioned on different applicable positions, can be ensured a good heat dissipation of the memory module.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 3.3.x / Kernel 4.x.x
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Specification:
• Connectors:
internal:
    1 x 67 pin M.2 key M slot
    1 x PCI Express x4, V3.0
    1 x 2 pin LED pin header male
• Interface: PCIe
• Supports M.2 modules in format 22110, 2280, 2260 and 2242 with key M
or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Data transfer rate up to 39 Gbps
• Supports M.2 modules with up to 3.3 V / 5 A
• Supports NVM Express (NVMe)

Package content:
• PCI Express card

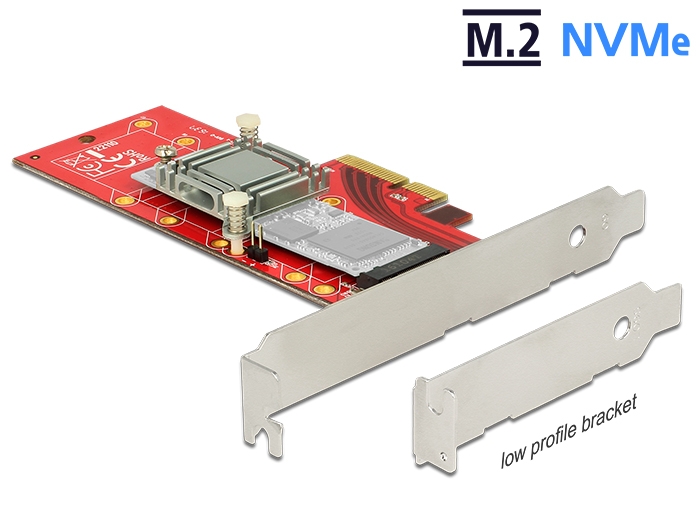

• Low profile bracket

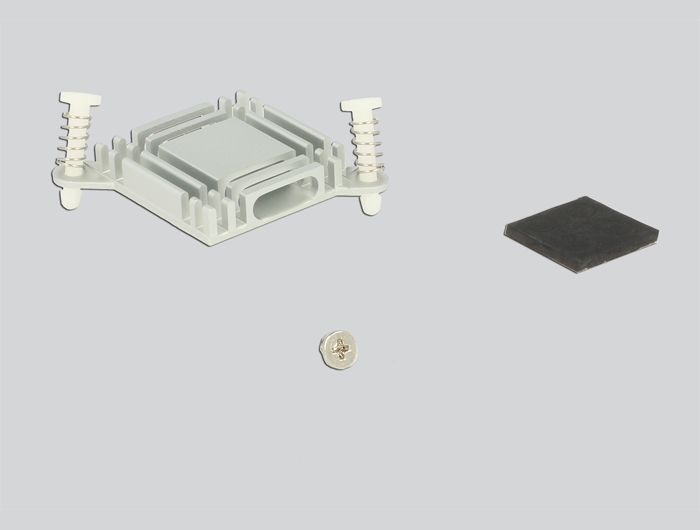

• Heat sink
• Mounting material
• User manual
