Delock Module MiniPCIe I/O PCIe full size 2 x Serial RS-422 / 485 with 600 W Surge

Reference 95245

Condition: New

More info

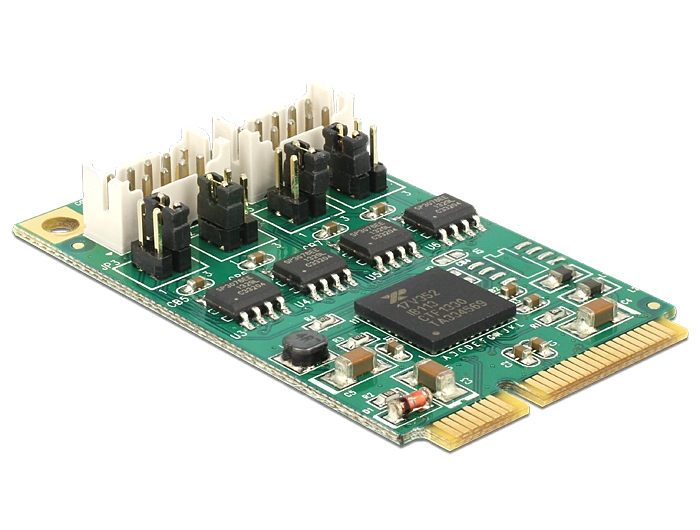

This MiniPCIe adapter by Delock expands your system by two additional serial ports, which you can lead out through the slot bracket. You can connect different serial devices to this adapter.

System requirements:
• Windows Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-64, Linux Kernel 2.6
• Mainboard with a free miniPCIe slot with a PCIe interface

Specification:
• Connector:
on the module:
    2 x 10 pin pin header male
on the slot bracket (standard): 1 x
    2 x serial RS-422 / 485 DB9 male with screw nuts
or on slot bracket (low profile): 2 x
    1 x serial RS-422 / 485 DB9 male with screw nuts
• Chipset: Exar XR17V352
• Form factor: miniPCIe full size
• Interface: PCI Express revision 2.0
• Data transfer rate up to 921.6 Kb/s
• Compatible with 16C550 UART
• 600 W surge
• Cable length: ca. 30 cm (incl. connector)

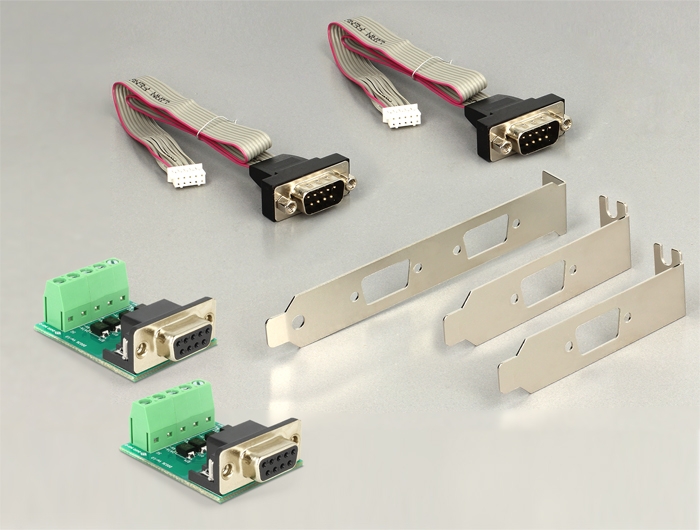

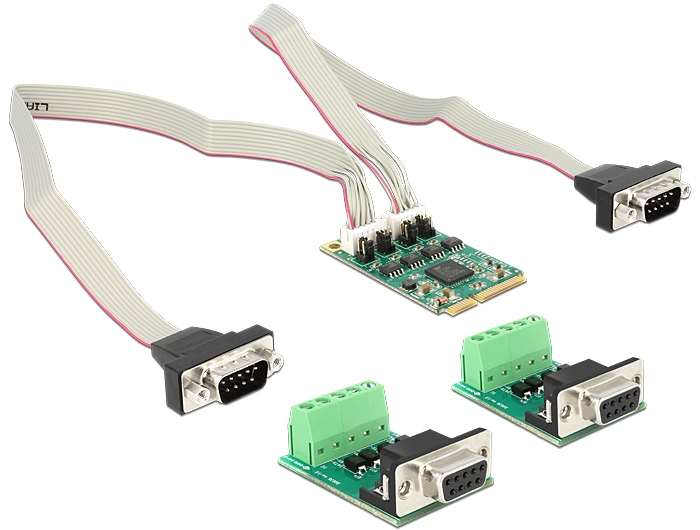

Package content:
• MiniPCIe module
• 2 x serial connection cable (pin header > DB9)
• 2 x terminal block adapter
• 1 x standart slot bracket with two DB9 ports
• 2 x low profile slot bracket with one DB9 ports
• Driver CD
• User manual
