Delock Modul MiniPCIe I/O PCIe full size 2 x Serial RS-232 -40 °C ~ 85 °C

Reference 95249

Condition: New

More info

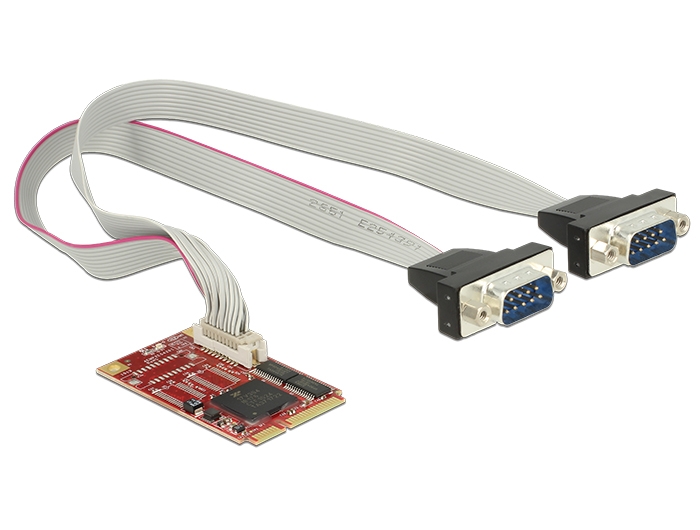

This MiniPCIe adapter by Delock expands a system by two additional serial ports. The adapter is ideal for use in harsh environments and has an extended temperature range of -40 °C ~ 85°C.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10, WES7, CE7.0, Linux Kernel 2.6.x and higher
• One free MiniPCIe slot (full size) with PCIe interface

Specification:
• Connector:
2 x serial RS-232 DB9 male with screw nuts
• Chipset: EXAR XR17V354
• Form factor: MiniPCIe full size
• Interface: PCI Express Revision 2.0 x1
• Data transfer rate up to 1 Mbps
• Maximum power consumption: 0.45 W (3.3 V x 135 mA)
• Vibration: 5 G @ 7~2000 Hz
• Shock: 50 G @ 0.5 ms
• Operation temperature: -40 °C ~ 85 °C - Industrial grade
• Storage temperature: -55 °C ~ 95 °C
• Cable length incl. connector: ca. 30 cm

Package content:

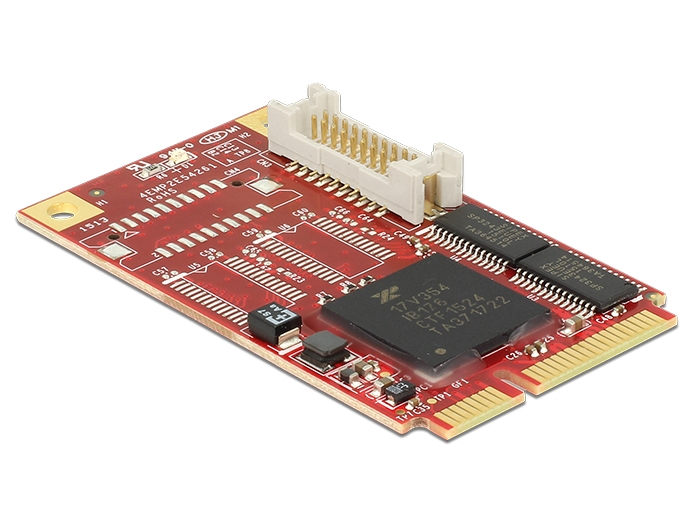

• Mini PCIe module

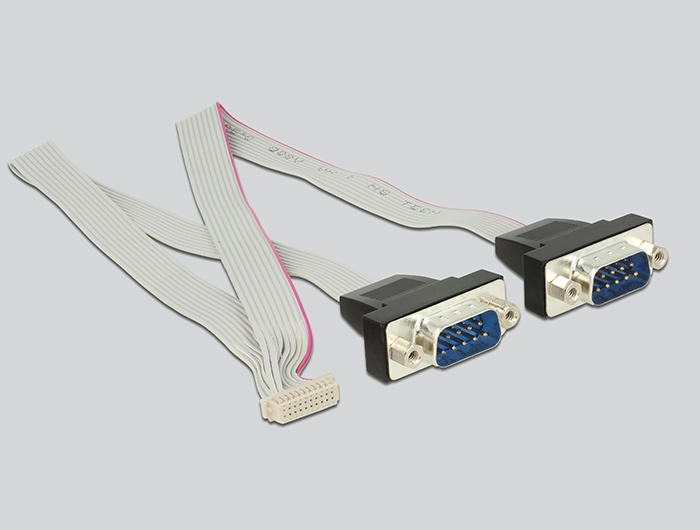

• 1 x connection cable (2 x serial DB9 port)
