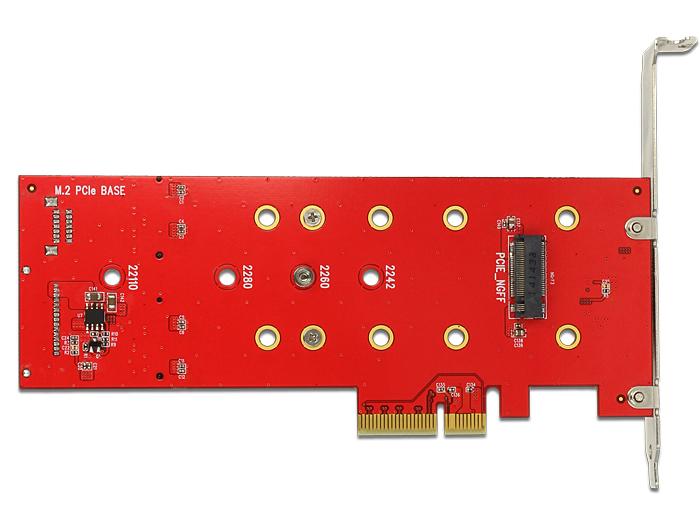

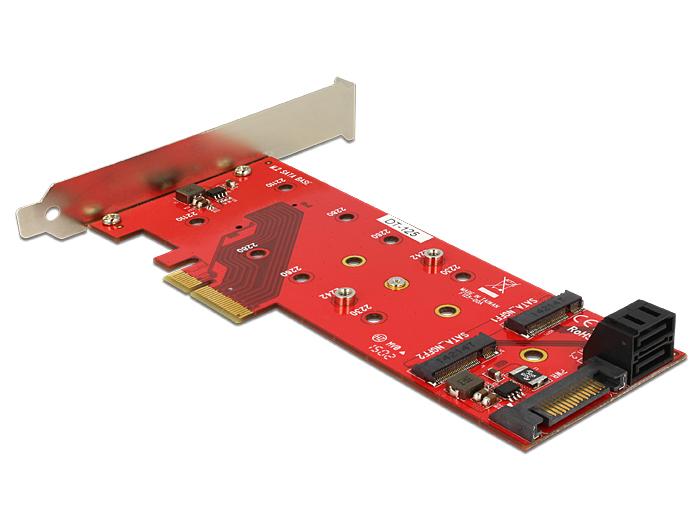

Delock PCI Express Card 3 x M.2 NGFF Slot – Low Profile Form Factor

Description:

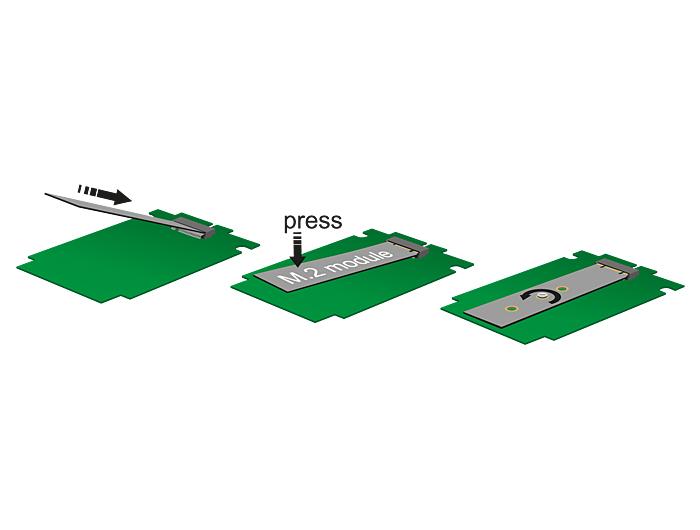

This PCI Express card by Delock expands your PC by three M.2 NGFF slots. You can connect two M.2 NGFF SATA modules in format 22110, 2280, 2260, 2242 or 2230 and one M.2 NGFF PCIe module in format 22110, 2280, 2260, 2242 or 2230.

Specification:
• Connector:
internal:
2 x 67 pin M.2 NGFF key B slot
1 x 67 pin M.2 NGFF key M slot
1 x PCI Express x4, V3.0
2 x 7 pin SATA male
1 x 15 pin SATA power connector for additional power supply
• Interface: SATA + PCIe
• Supports
two M.2 NGFF modules in format: 22110, 2280, 2260, 2242 and 2230
with key B or key B+M based on SATA and
one M.2 NGFF modules in format: 22110, 2280, 2260, 2242 and 2230 with key M
or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm
application of double-sided assembled modules supported
• Power supply directly via PCI Express or via 15 pin SATA power connector
• Supports Native Command Queuing (NCQ)

System requirements:
• Windows Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-64, Linux Kernel 3.2.0
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
• One free SATA 7 pin interface for each connected M.2 module based on SATA

Package content:
• PCI Express card

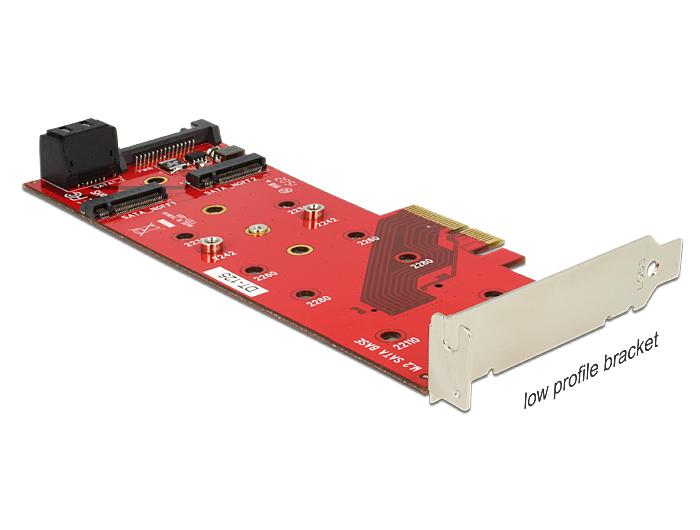

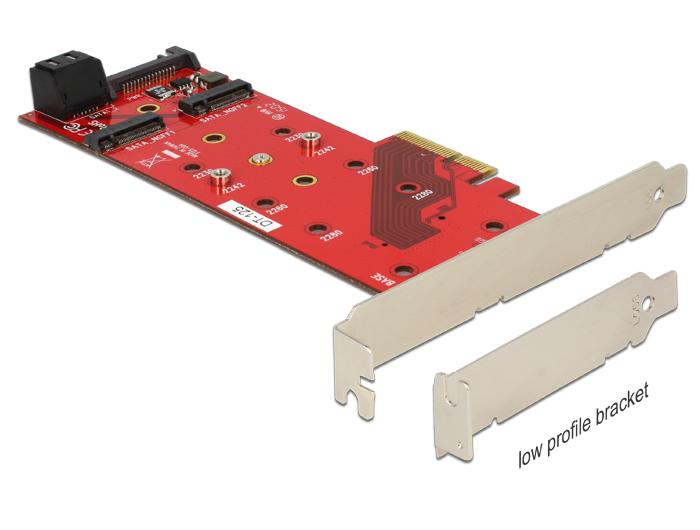

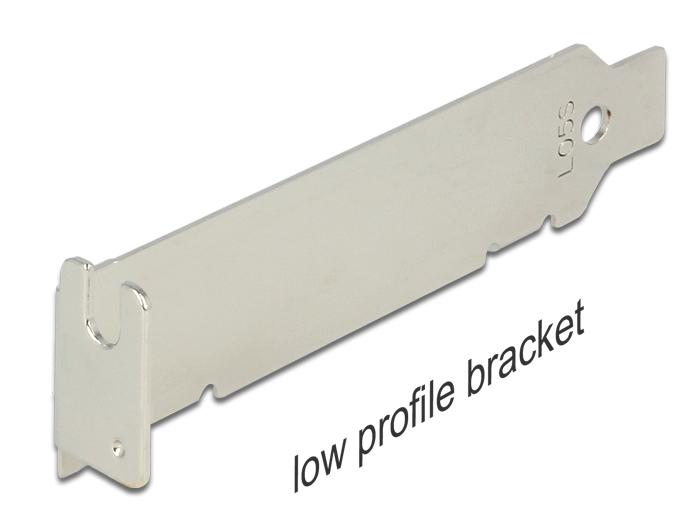

• Low profile bracket
• 3 x fixing screw
