Delock MiniPCIe IO PCIe full size 1 x 19 Pin USB 3.0 Pin Header

Description:

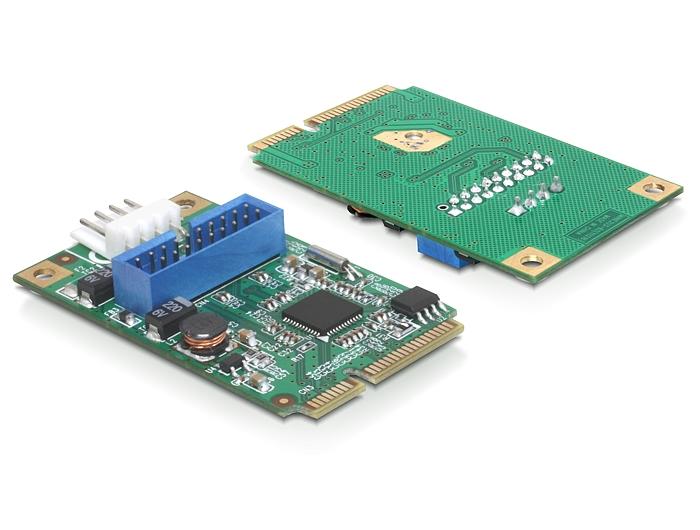

The miniPCIe module by Delock provides an internal 19 pin USB 3.0 pin header port.You can connect different USB 3.0 devices with pin header female interface or you can use it for two USB-A female ports, which is included in delivery.

Specification:
• Chipset: NEC
• Form factor: miniPCIe full size
• Interface: PCI Express revision 2.0
• Connection:
1 x 19 pin USB 3.0 pin header male
1 x 4 pin power connector
• Data transfer rate up to 5 Gb/s
• Compatible with xHCI specification 1.0
• Compatible with USB 3.0 specification revision 1.0
• Power supply: max. 5 V / 900 mA per port

System requirements:
• Windows XP/XP-64/Vista/Vista-64/7/7-64
• Mainboard with one free miniPCIe port with PCIe interface

Package content:
• MiniPCIe module

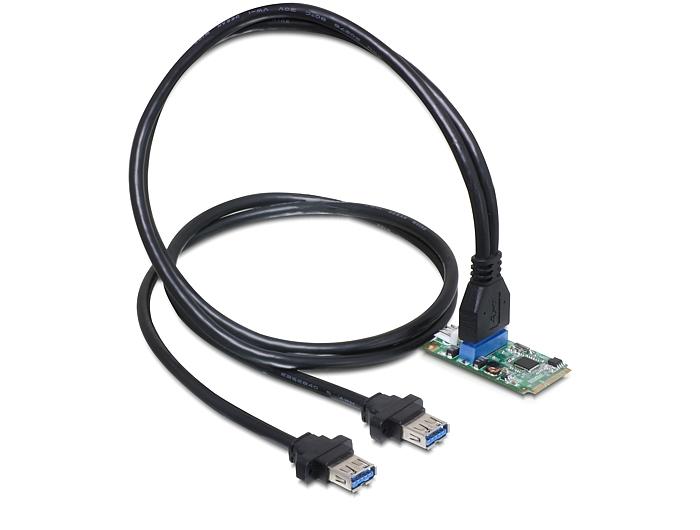

• USB 3.0 pin header cable to 2 x USB-A female
• Driver CD
• User manual
