Delock MiniPCIe Converter mSATA full size 1 x SATA 7 Pin female + current supply

Description:

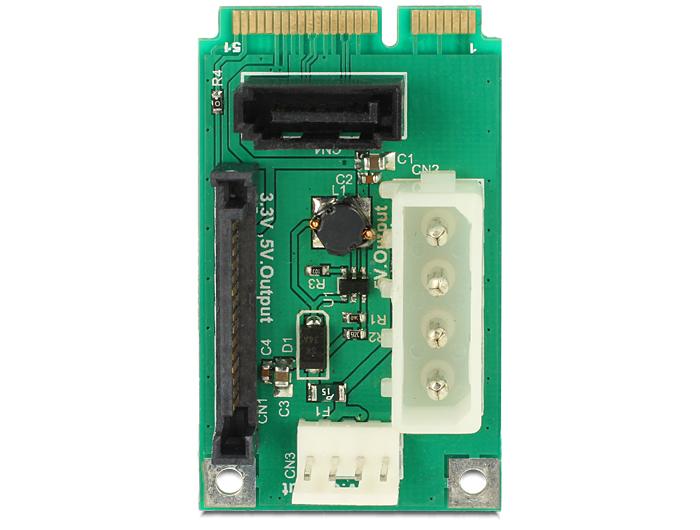

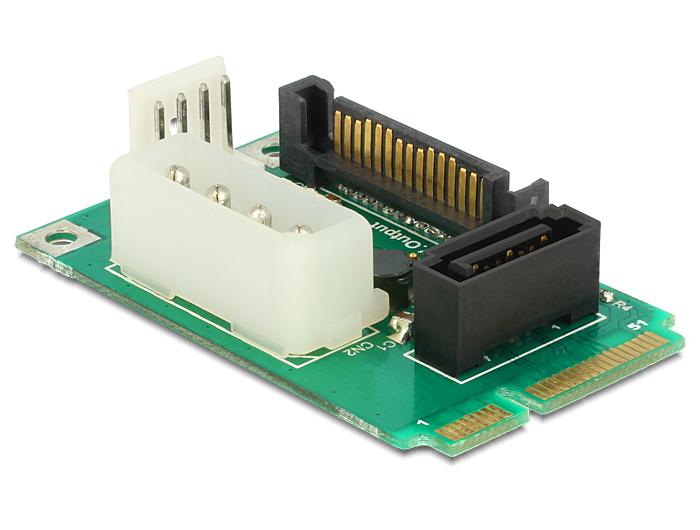

This miniPCIe module converts the mSATA interface into a SATA 7 pin interface and also provides power via the mSATA connector. Thus you can connect e.g. a 2.5″ SATA hard drive to the module and connect a power cable between the module and the hard drive. The module is designed for a full size slot.

Specification:
• Connector:
mSATA male >
data:
1 x SATA 7 pin female
power:
1 x SATA 15 pin female
1 x 4 pin 5.25″ male
1 x 4 pin 3.5″ male
• Interface: mSATA
• Form factor: miniPCIe full size
• Data transfer rate up to 6 Gb/s
• Converts the power connectors to 5 V from the 3.3 V mSATA interface
• For connection of 5 V SATA devices
• Dimensions (LxWxH): ca. 51 x 30 x 6 mm
• OS independent, no driver installation necessary

System requirements:
• Mainboard with a free miniPCIe slot with a mSATA interface

Package content:
• MiniPCIe converter
