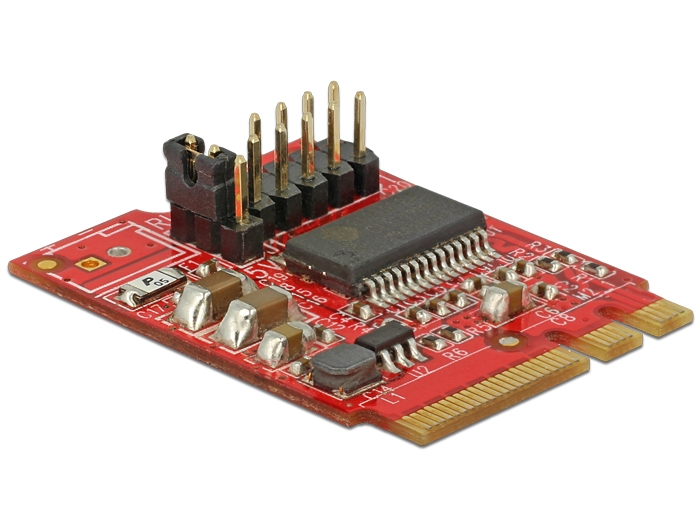

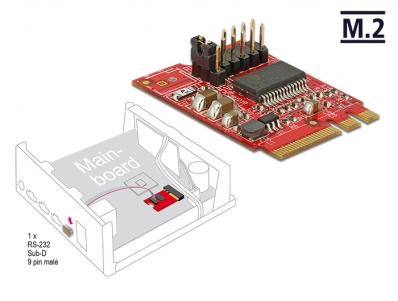

Delock Converter M.2 Key A+E male > 1 x Serial RS-232 male

Reference 62951

Condition: New

More info

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 2.6.38 / Kernel 4.9.2
• One free M.2 key A or key E slot

Specification:
• Connectors:
1 x 59 pin M.2 key A+E male >
1 x 10 pin pin header
1 x serial RS-232 Sub-D 9 pin male with nuts on cable
• Chipset: Prolific PL2303
• Interface: USB
• Jumper setting RI or 5 V on pin 9
• Form factor: M.2 2230
• Suitable for M.2 slot with key A or key E based on USB
• Data transfer rate up to 230.4 Kb/s
• Compatible with 16C550 UART
• Dimensions (LxWxH): ca. 30 x 22 x 8 mm

Package content:
• Converter

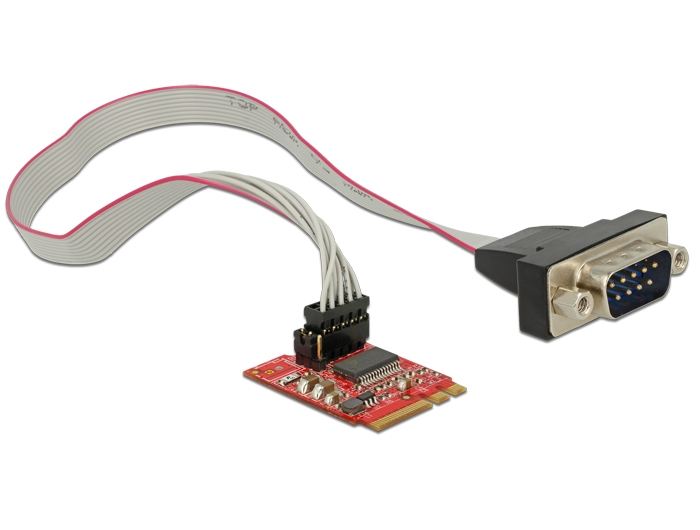

• 1 x RS-232 connection cable, length ca. 25 cm

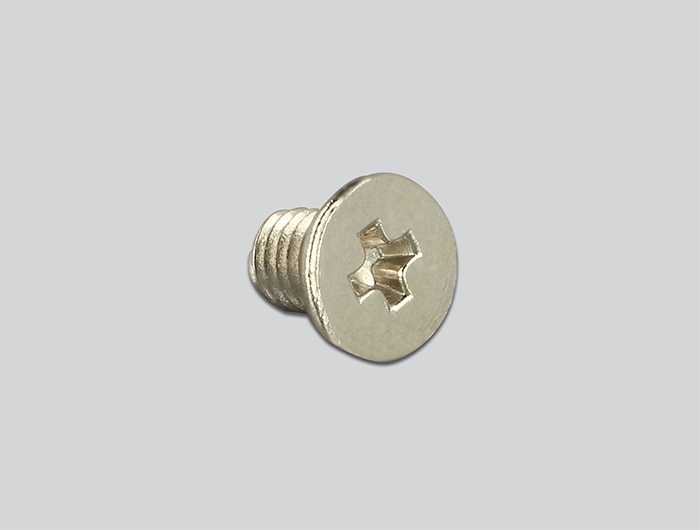

• 1 x fixing screw
• User manual
