Delock Converter M.2 Key M male > 2 x Serial RS-232 male

Reference 62871

Condition: New

More info

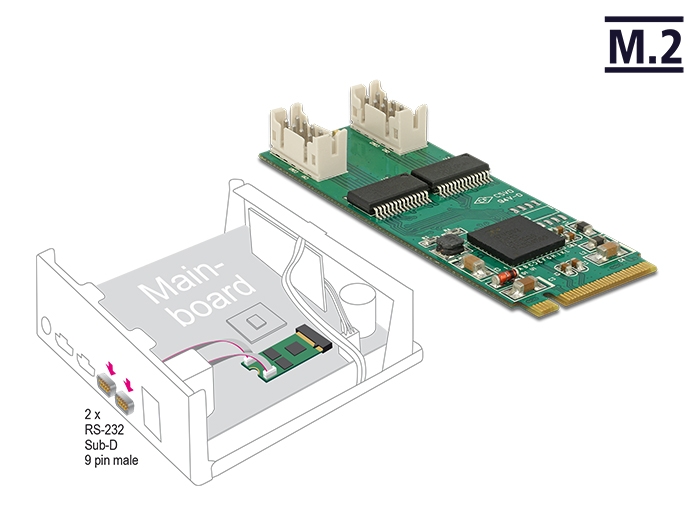

This converter by Delock expands the system by two serial RS-232 ports. The RS-232 ports can be attached to a housing or slot bracket.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 3.3 / Kernel 4.x.x
• One free M.2 key M slot

Specification:
• Connectors:
1 x 67 pin M.2 key M male >
2 x 10 pin pin header
2 x serial RS-232 Sub-D 9 pin male with nuts on cable
• Chipset: Exar 17V352
• Interface: PCIe
• Form factor: M.2 2260
• Suitable for M.2 slot with key M based on PCIe
• Data transfer rate up to 921.6 Kbps
• Compatible with 16C550 UART
• ±15 kV ESD protection for all serial signals
• Operating temperature: -30 °C ~ 75 °C
• Storage temperature: -40 °C ~ 85 °C
• Relative humidity: 5 - 95 % (not condensing)
• Dimensions (LxWxH): ca. 60 x 22 x 8 mm

Package content:
• Converter

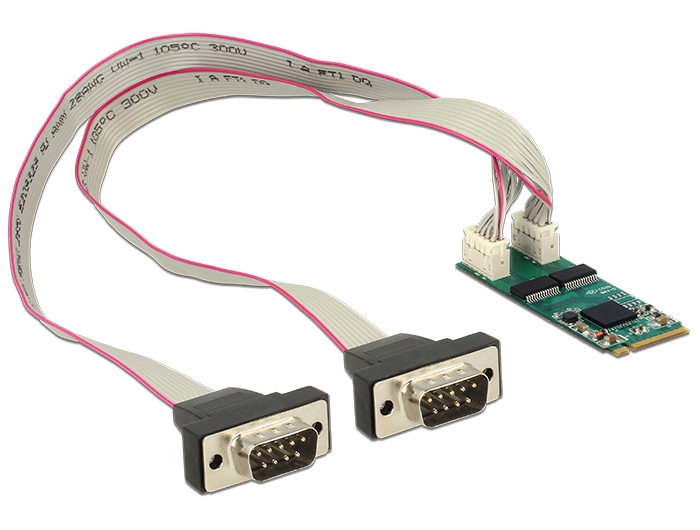

• RS-232 connection cable, length ca. 30 cm
• Driver CD
• User manual
